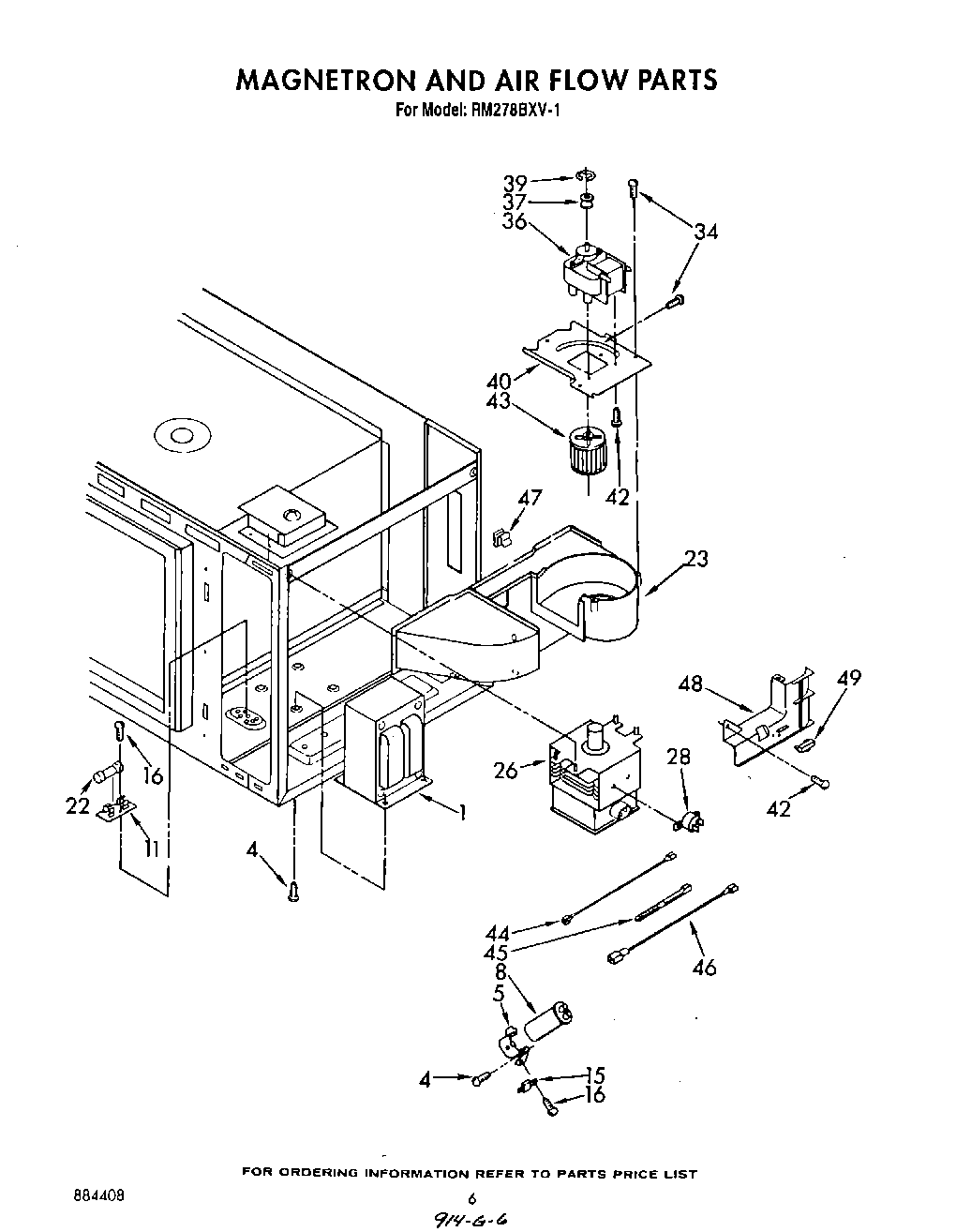

RM278BXV1 05 – MAGNETRON AND AIR FLOW

RM278BXV1 05 – MAGNETRON AND AIR FLOW

Written by

in

RM278BXV1 05 – MAGNETRON AND AIR FLOW

Products

PositionProduct
Screw, 6A x 3/8 (2)
1Transformer
4Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5Bracket, Capacitor
8Capacitor
8Capacitor (Alt.)
8capacitor (alt.)
114454949 Whirlpool Oven Fuse Block
15Rectifier, High Voltage
16screw
22WPW10017410 Whirlpool Fuse
23Air Duct (Horizontal)
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron
28Thermal Protector (Alt.)
28Thermal Protector (Alt.)
28Thermal Protector
34Screw, 11-16 x 1/2 Double Load Space Thread (5)
36Transmotor
37Pulley, Motor
39“E“ Ring
40Bracket, Motor
42WP486579 Whirlpool Air Conditioner Screw
43Wheel, Blower
44Jumper, High Voltage Red (6-5/16“)
45WPW10339879 Whirlpool Wire Tie
46High Voltage Lead, Gray 6-3/4“ (2)
47Clip
48Extension, Air Duct
49Screw
49Fuse, Thermal
