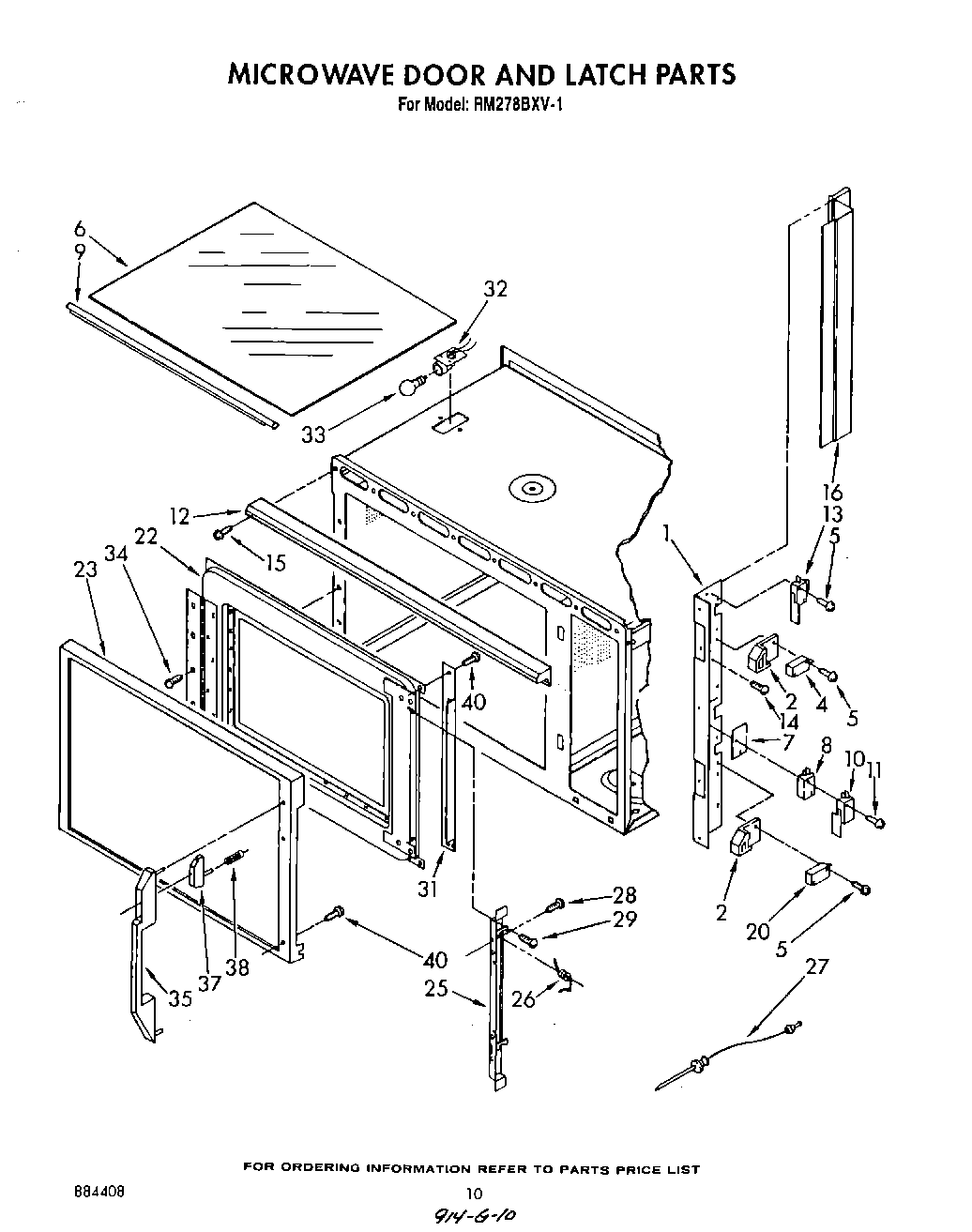

RM278BXV1 07 – MICROWAVE DOOR AND LATCH
Written by
in
RM278BXV1 07 – MICROWAVE DOOR AND LATCH
Products
Position
Product
1
Bracket, Catch
2
Catch (2)
5
WPL 312717
6
Shelf, Microwave (Install with Silastic 482338)
7
Insulator
8
W10841140 Whirlpool Dishwasher Adhesive
8
Spring
8
Switch
8
Switch (Alt.)
8
Trim, Shelf (Front)
8
Trim, Shelf (Rear)
10
Switch, Light/ Monitor
10
Switch, Light Monitor (Alt.)
10
Switch, Light Monitor (Alt.)
11
Screw, 4-40 x 10 (2)
12
grille, air
13
Switch, Miniature
14
WPL 309080
15
screw (3)
16
shield
19
Rivet, Pop (3)
20
814037 Whirlpool Microwave Switch
22
Door, Inner
23
Frame, Door
25
Latch Assembly
26
Spring, Torsion (2)
27
(Alt.)
28
303776 Whirlpool Dishwasher Screw
29
Screw (2)
31
End Cap
32
Snap-In Socket
33
WP3395618 Whirlpool Light Bulb
34
WPW10068250 Whirlpool Dishwasher Screw
35
Handle, Door
37
313611 Whirlpool Microwave Door Button
38
Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
40
Screw, 8-22 (5)
←
