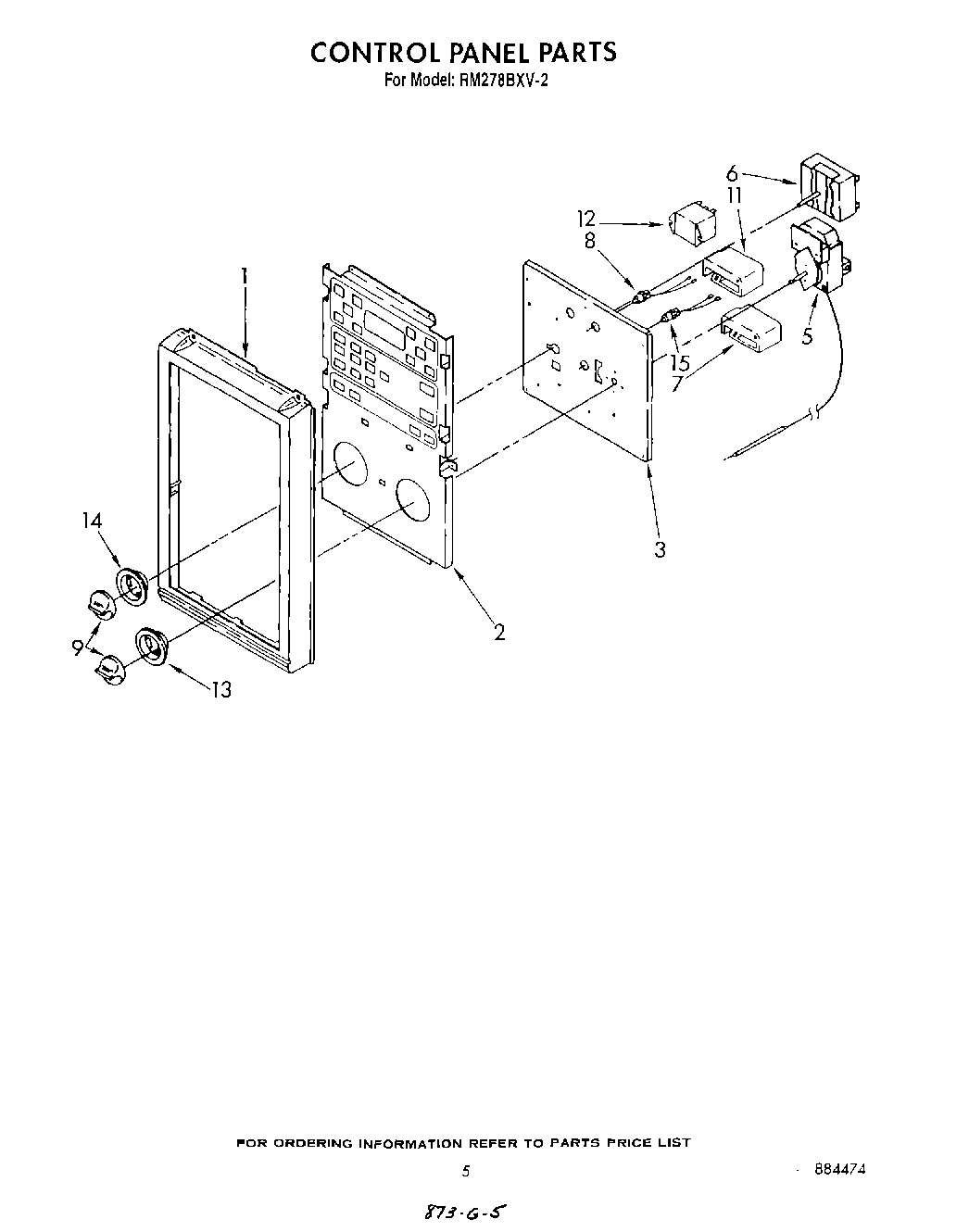

RM278BXV2 04 – CONTROL PANEL
Written by
in
RM278BXV2 04 – CONTROL PANEL
Products
Position
Product
1
Frame, Control Panel
2
Module, Control
3
Bracket, Control (Mounting)
5
WP313808 Whirlpool Screw
5
Thermostat
6
Screw, 8-32 x 3/16 (2)
6
Switch, Selector
7
Switch, Bake
8
Light, Indicator (4)
9
WP3150371 Whirlpool Control Knob
11
WPL 314215
11
Sw
12
Relay, Vent (24V, Clear)
12
Screw
13
Escutcheon, Thermostat
14
WP311068 Whirlpool Dial Knob Black
14
Screw,
15
Light, Indicator
15
Screw
15
WPL 312006
←
