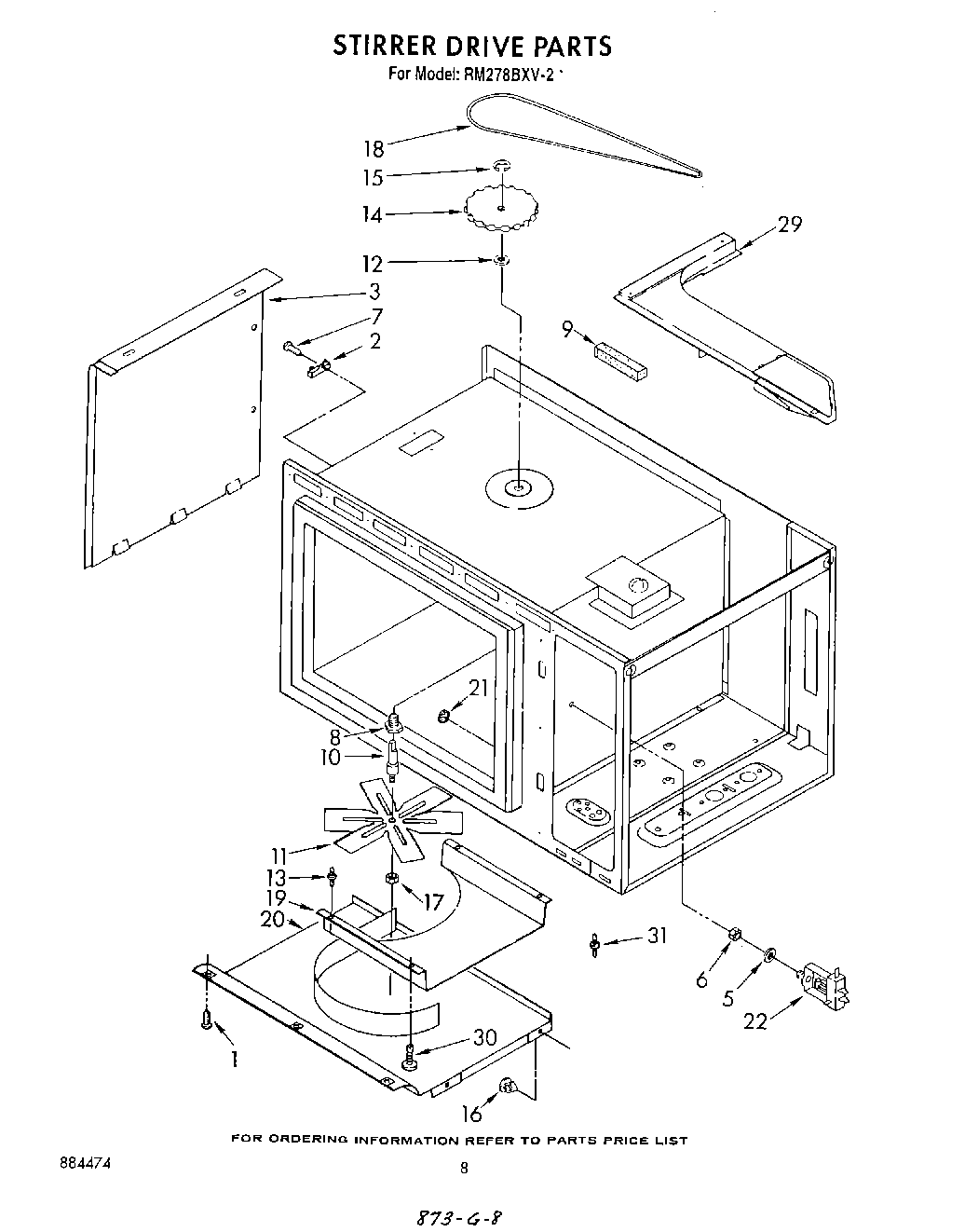

RM278BXV2 06 – STIRRER DRIVE

Products

Position	Product
1	WP488729 Whirlpool Refrigerator Door Screw
2	Fuse, Thermal
3	Cover, Side
5	Washer, Internal Lock
6	Nut
7	screw
8	Bushing, Stirrer
9	Seal, Foam
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
13	Support (4)
14	Pulley, Stirrer Blade
15	``E`` Ring
16	Fastener (4)
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
19	Plate, Tuning
20	screw, 8-32 x 1/2 (3)
20	Silicone Rubber Gasket
21	Plug, Hole (4)
22	Probe Jack
29	Baffle, Air Exhaust
30	Fastener (2)
31	Support (4)
