RM278BXV3 05 – MAGNETRON AND AIR FLOW

RM278BXV3 05 – MAGNETRON AND AIR FLOW

Written by

in

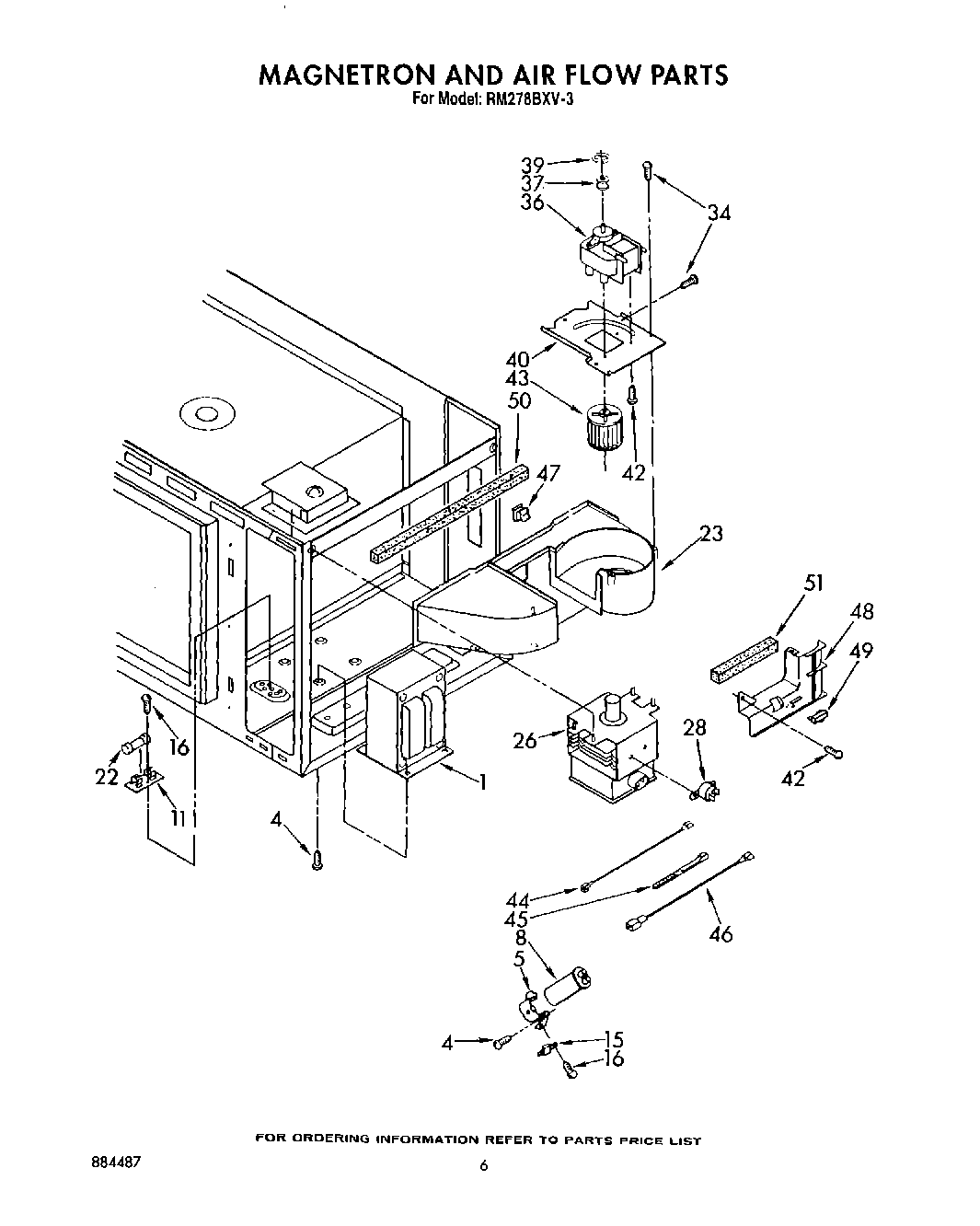

RM278BXV3 05 – MAGNETRON AND AIR FLOW

Products

PositionProduct
1Transformer (Alt.)
4Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
5Bracket, Capacitor
8Capacitor
8Capacitor (Alt.)
8capacitor (alt.)
114454949 Whirlpool Oven Fuse Block
15Rectifier, High Voltage
22WPW10017410 Whirlpool Fuse
23Air Duct (Horizontal)
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron
26Magnetron (Alt.)
26Magnetron (Alt.)
26Magnetron (Alt.)
28Thermal Protector (Alt.)
28Thermal Protector
28Thermal Protector (Alt.)
36Transmotor
37Pulley, Motor
39“E“ Ring
40Bracket, Motor
42WP486579 Whirlpool Air Conditioner Screw
43Wheel, Blower
44Jumper, High Voltage Red (6-5/16“)
45WPW10339879 Whirlpool Wire Tie
46High Voltage Lead, Gray 6-3/4“ (2)
47Clip
48Screw, 11-16 x 1/2 Double Load Space Thread (5)
48Extension, Air Duct
49Fuse, Thermal
49screw
50Seal, Air Duct
51Seal, Foam
