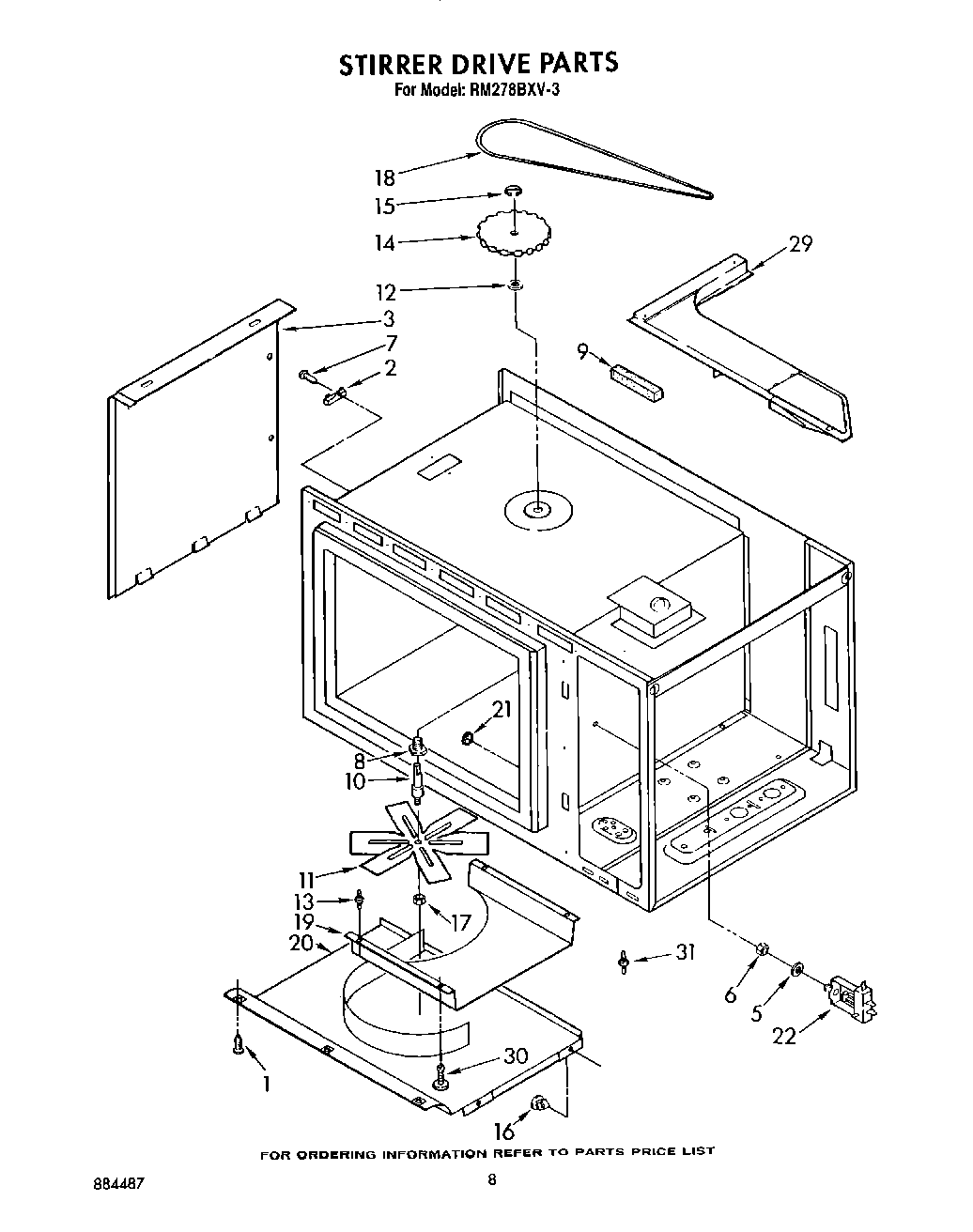

RM278BXV3 06 – STIRRER DRIVE
Written by
in
RM278BXV3 06 – STIRRER DRIVE
Products
Position
Product
1
WP488729 Whirlpool Refrigerator Door Screw
2
Fuse, Thermal
3
Cover, Side
5
Washer, Internal Lock
6
Nut
7
screw
8
Bushing, Stirrer
9
Seal, Foam
10
Shaft, Stirrer
11
Stirrer Blade
12
Washer, Nylon
13
Support (4)
14
Pulley, Stirrer Blade
15
“E“ Ring
16
Fastener (4)
17
WP487939 Whirlpool Refrigerator Nut
18
WP313646 Whirlpool Microwave Drive Belt
19
Plate, Tuning
20
screw, 8-32 x 1/2 (3)
20
Silicone Rubber Gasket
21
Plug, Hole (4)
22
Probe Jack
29
Baffle, Air Exhaust
30
Fastener (2)
31
Support (4)
←
