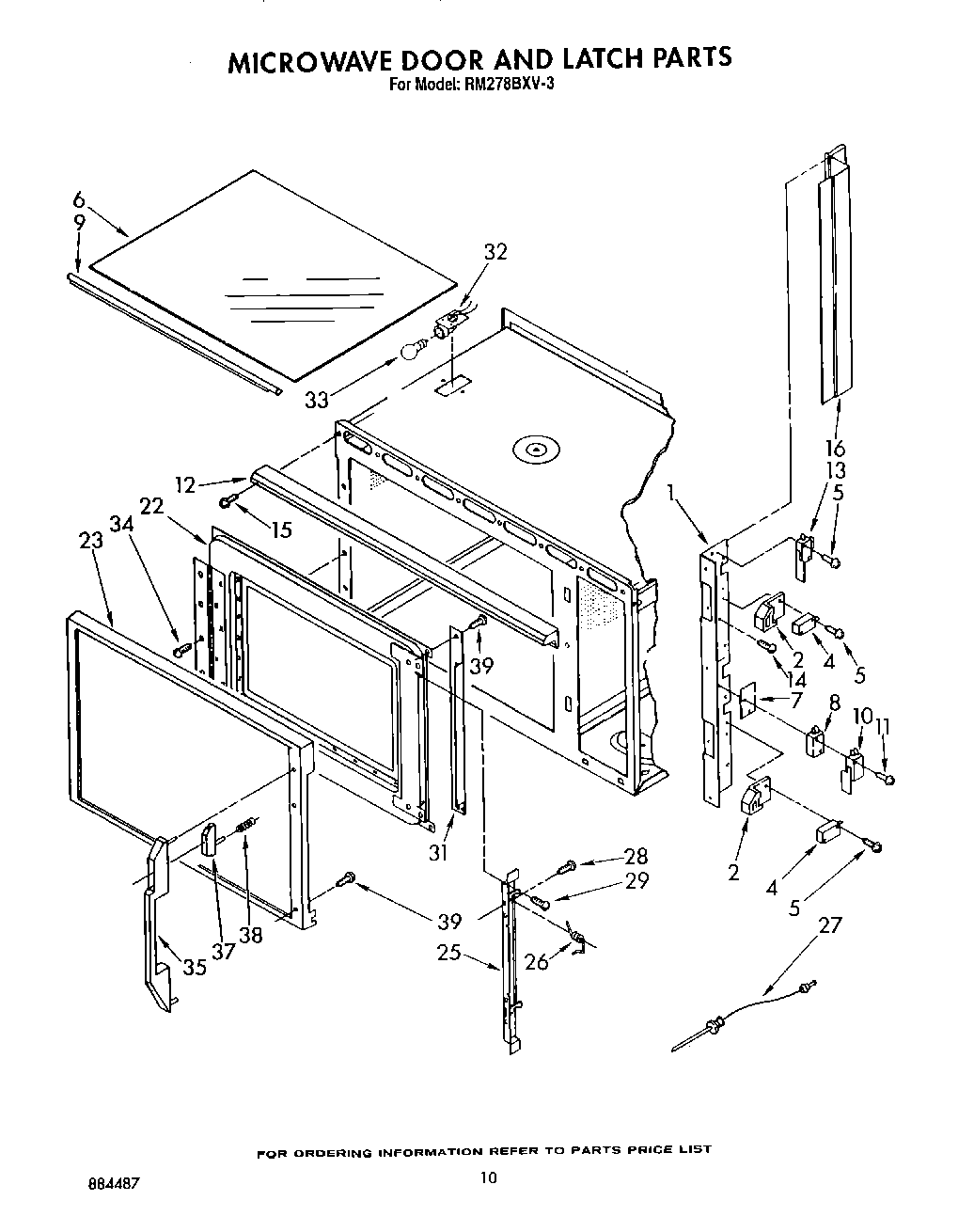

RM278BXV3 07 – MICROWAVE DOOR AND LATCH
Written by
in
RM278BXV3 07 – MICROWAVE DOOR AND LATCH
Products
Position
Product
1
Bracket, Catch
2
Catch (2)
4
814037 Whirlpool Microwave Switch
5
WPL 312717
6
Shelf, Microwave (Install with Silastic 482338)
7
Insulator
8
Switch
8
Spring
8
Switch (Alt.)
9
Trim, Shelf (Rear)
9
Trim, Shelf (Front)
10
Switch, Light Monitor (Alt.)
10
Switch, Light/ Monitor
10
Switch, Light Monitor (Alt.)
11
Screw, 4-40 x 10 (2)
12
screw (3)
12
grille, air
13
Switch, Miniature
14
WPL 309080
15
Screw, 6-20 x 1/2 (3)
16
shield
22
Door, Inner
23
Frame, Door
25
Latch Assembly
26
Spring, Torsion (2)
27
(Alt.)
28
303776 Whirlpool Dishwasher Screw
29
Screw (2)
31
End Cap
32
Snap-In Socket
33
WP3395618 Whirlpool Light Bulb
34
screw
35
Handle, Door
37
313611 Whirlpool Microwave Door Button
38
Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
39
Screw
←
