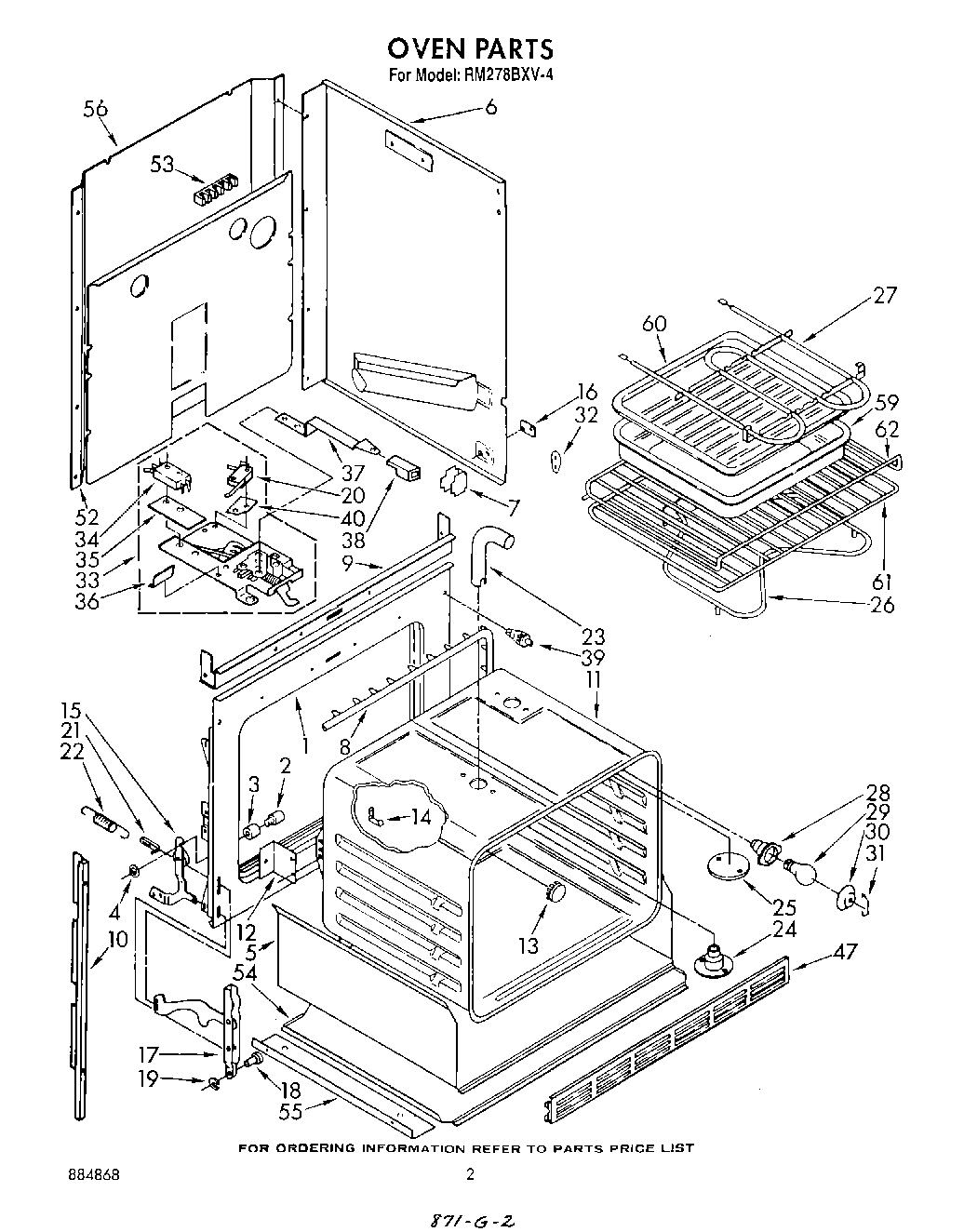

RM278BXV4 02 – OVEN
Written by
in
RM278BXV4 02 – OVEN
Products
Position
Product
Screw (2)
WPL LIT3149025
WPL LIT313358
WPL LIT3147571
Cook
Screw (10-12 x .875)
WPL LIT312900
WPL LIT312914
WPL LIT884868
WPL LIT3147573
WPL LIT3147287
1
Frame, Front
2
Pin, Hinge Ear (2)
3
Snubber, Door (2)
4
Pushnut (2)
5
Insulation Tray
6
Side Wrapper (Left Side)
6
Side Wrapper (Right Side)
7
Support, Side Wrapper (4)
8
Seal, Door
8
WP313808 Whirlpool Screw
9
Baffle, Top Insulation
10
Side Trim (Left Side)
10
Side Trim (Right Side)
11
Oven 30“
12
SCREW
12
Bracket, Oven Mounting (2)
13
Plug Button
14
98005642 Whirlpool Clip
15
Hinge Ear, R.H.
15
Hinge Ear, L.H.
16
WP308544 Whirlpool Screw
16
Plate, Side Panel (2)
17
Channel Arm (2)
18
WP307986 Whirlpool Hinge Pin
19
Retainer Ring (2)
20
Switch, Lock
20
Screw (2)
21
WP308125 Whirlpool Microwave Range/Cooktop Anchor
22
Spring, Oven Door (2)
23
Tube, Vent
24
Eliminator, Smoke
25
WPL 310662
26
ELMNT-BAKE
27
WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28
Socket, Oven Light (Alt.)
28
Socket, Oven Light
28
Socket, Oven Light (Alt.)
29
RANGE ONLY 40W 120V APPL BULB
30
Cover, Light
31
Retainer, Light
32
WP488729 Whirlpool Refrigerator Door Screw
32
WPL 311982
33
Screw (3)
33
Latch Assembly
34
Safety Switch
34
Screw
35
Insulator, Switch
36
Shield, Latch
36
Screw
37
Screw
37
Latch, Handle
38
Screw, 80 x 5/16
38
Knob, Latch Handle
39
Switch, Door
40
WPL 3147864
47
Grill, Bottom (Screw (3))
47
Grill, Bottom
52
Panel, Back (2)
53
WP112432 Whirlpool Nut Assembly
53
WPL 3147001
53
WP8203546 Whirlpool Terminal Block
54
WPL 310458
55
Angle, Support (2)
56
Cover, Rear
60
4396923 Whirlpool Broil Pan Set Gray Porcelain
61
WPL 308173
62
WPL 310434
62
WPL 3149328
62
WPL 310433
62
WPL 308172
←
