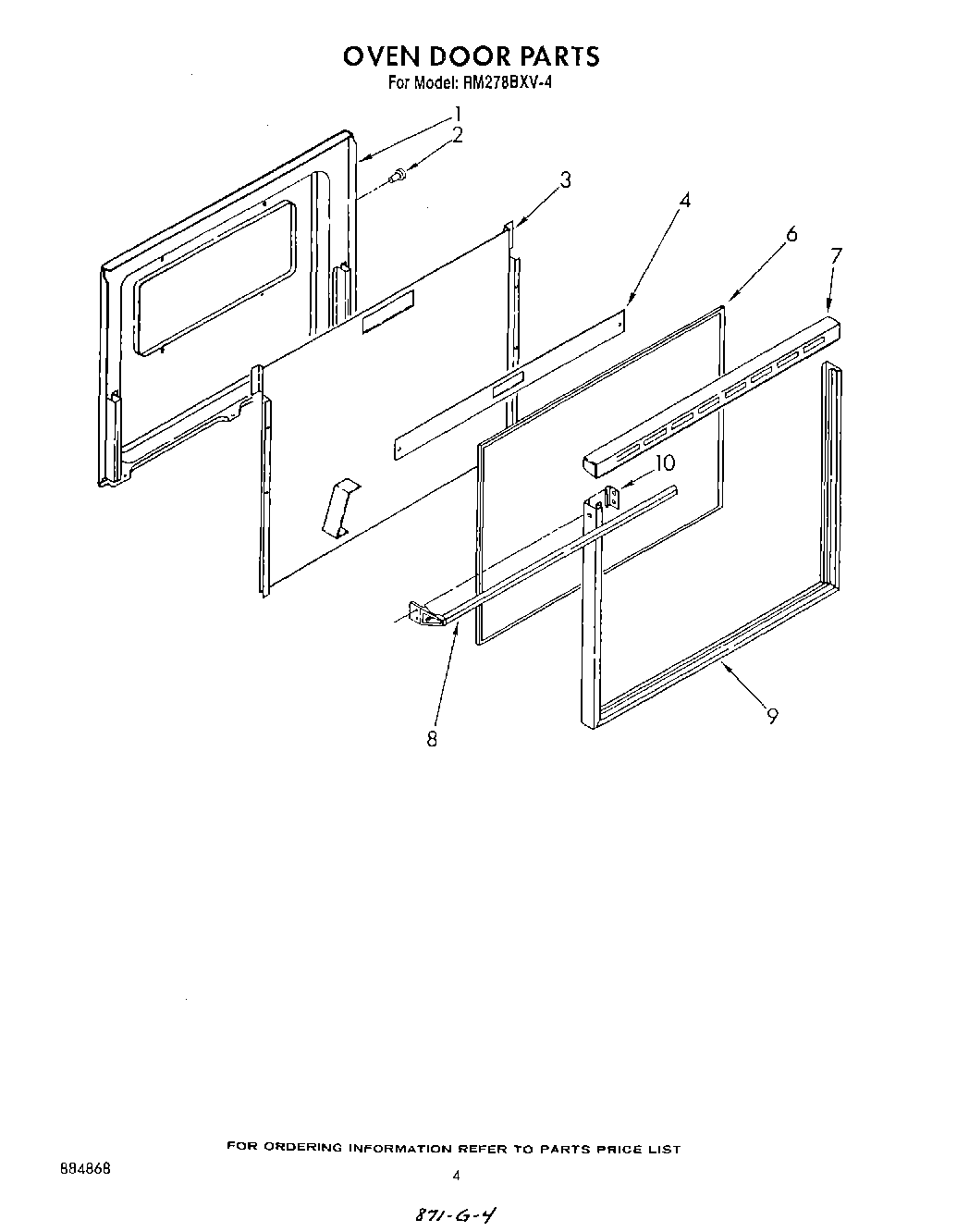

RM278BXV4 03 – OVEN DOOR
Written by
in
RM278BXV4 03 – OVEN DOOR
Products
Position
Product
1
Liner, Oven Door
2
Bumper (4)
3
Screw
3
Retainer, Insulation
4
Sheild, Door
4
Screw,
5
Insulation, Door
6
Panel, Door (Black Glass)
7
Top, Door (Black Model)
8
Handle, Oven Door
9
WP355515 Whirlpool Screw
9
Frame, Door
10
Clip, Mtg (2)
10
Back Splash (Screw (4) 10AB x 1/2“)
←
