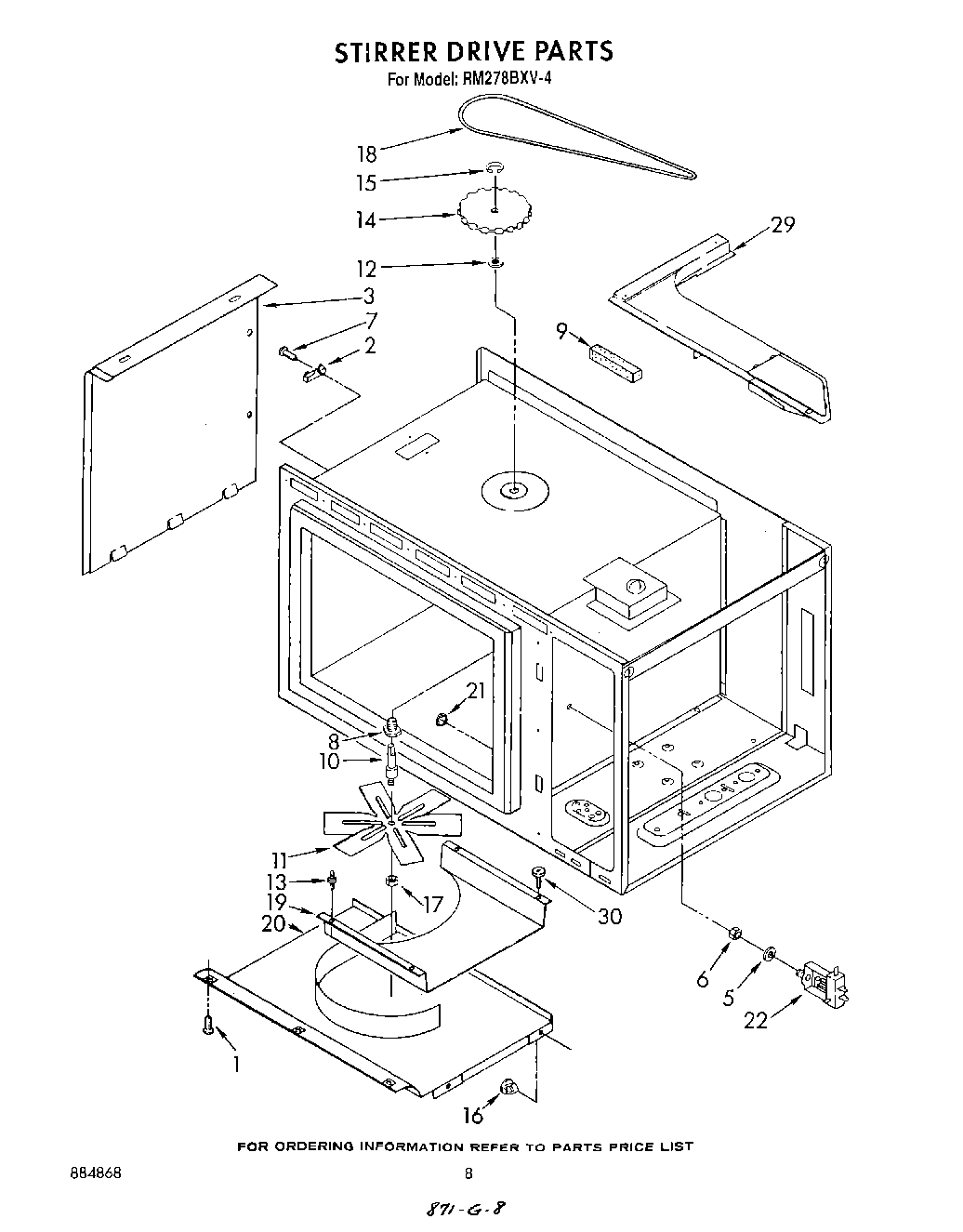

RM278BXV4 06 – STIRRER DRIVE

Products

Position	Product
2	Fuse, Thermal
3	Cover, Side
3	WP488729 Whirlpool Refrigerator Door Screw
5	Washer, Internal Lock
6	Nut
7	screw
8	Bushing, Stirrer
9	Seal, Foam
10	Shaft, Stirrer
11	Stirrer Blade
12	Washer, Nylon
13	Support (4)
14	Pulley, Stirrer Blade
15	“E“ Ring
16	Fastener (4)
17	WP487939 Whirlpool Refrigerator Nut
18	WP313646 Whirlpool Microwave Drive Belt
19	Plate, Tuning
20	screw, 8-32 x 1/2 (3)
20	Silicone Rubber Gasket
21	Plug, Hole (4)
22	Probe Jack
29	Baffle, Air Exhaust
30	Fastener (2)
