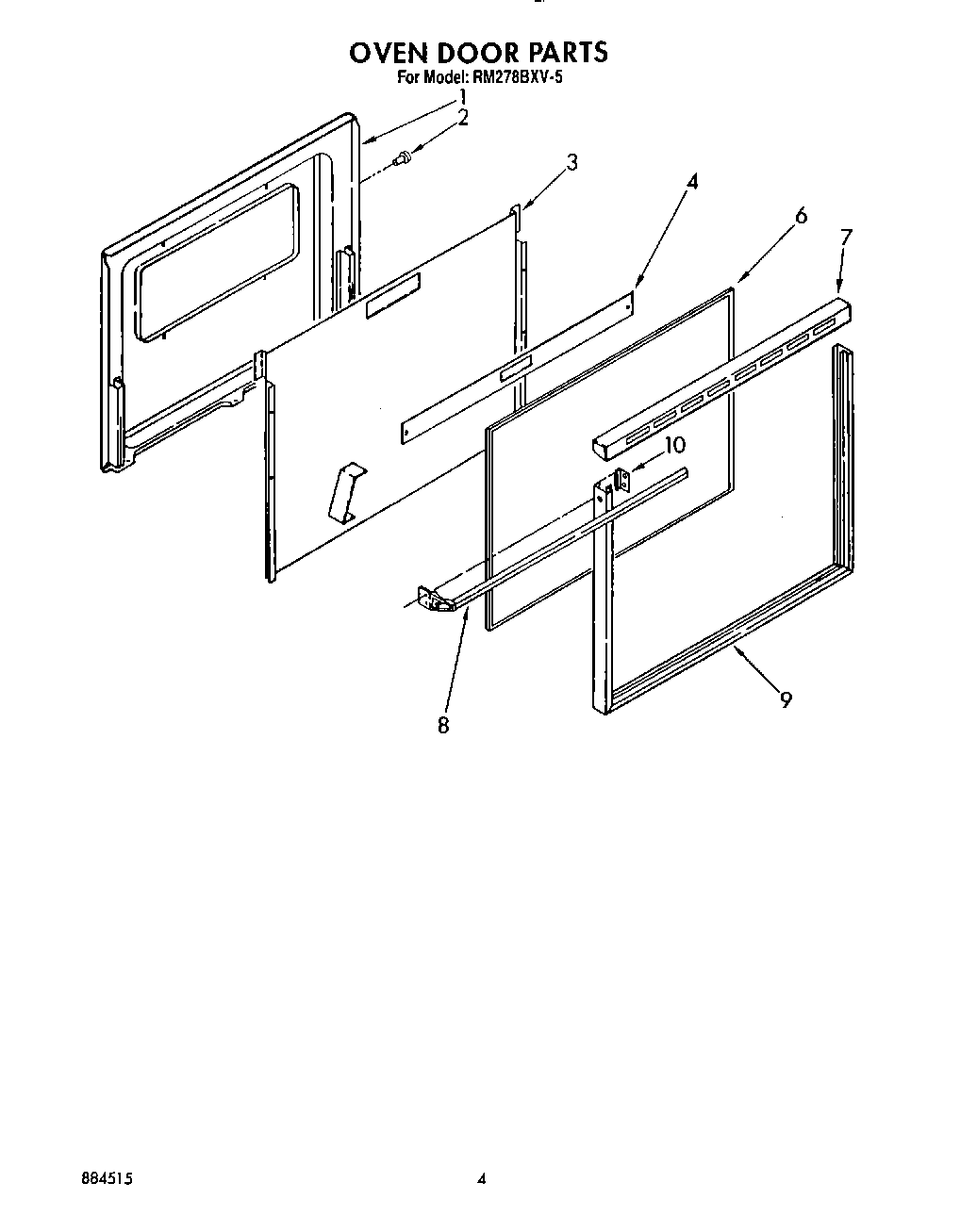

RM278BXV5 03 – OVENDOOR

Products

Position	Product
1	Liner, Oven Door
2	Bumper (4)
3	Screw
3	Retainer, Insulation
4	Sheild, Door
4	Screw,
5	Insulation, Door
6	Panel, Door (Black Glass)
7	Top, Door (Black Model)
8	Handle, Oven Door
9	WP355515 Whirlpool Screw
9	Frame, Door
10	Clip, Mtg (2)
10	Back Splash (Screw (4) 10AB x 1/2“)
