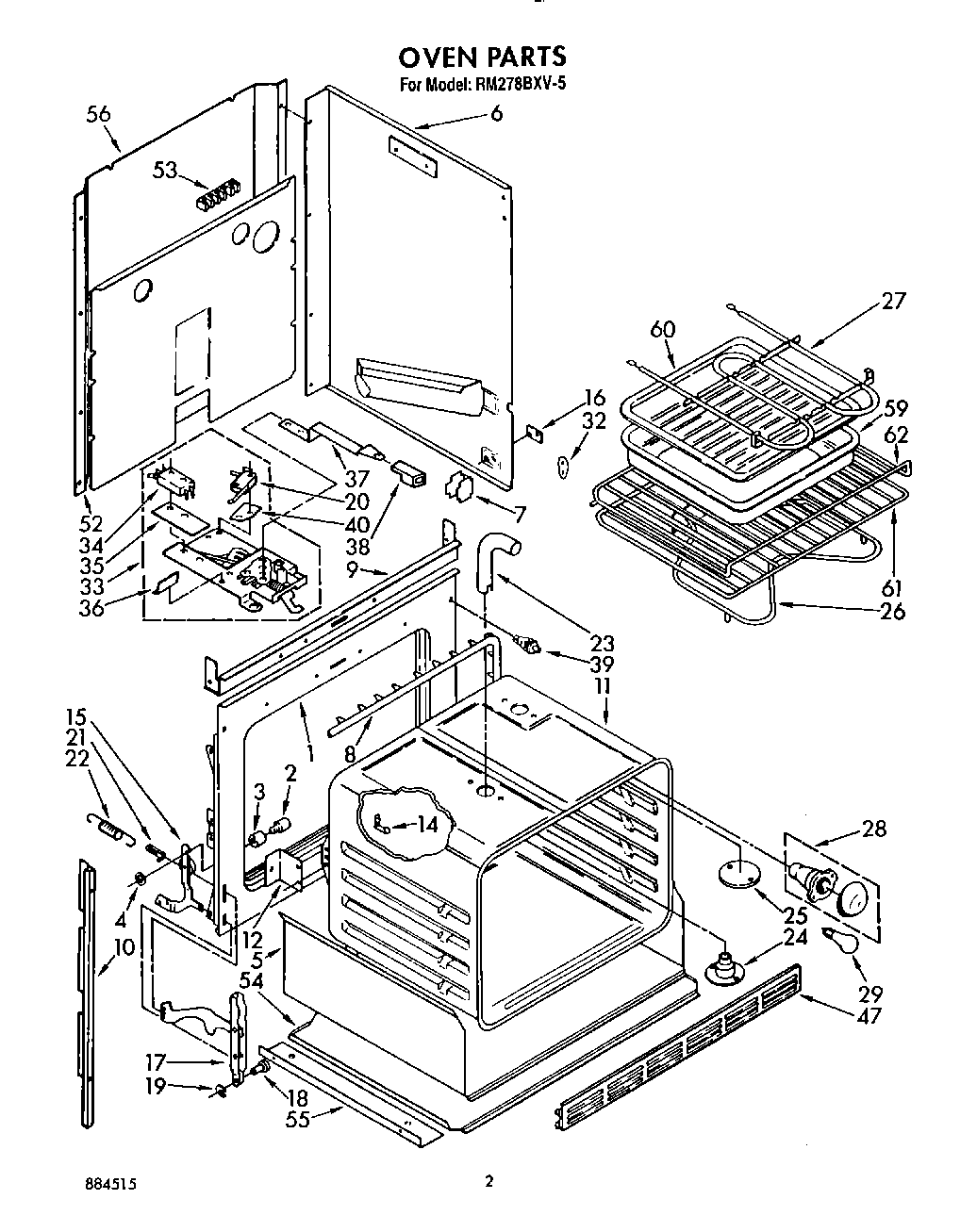

RM278BXV6 02 – OVEN, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3147571
	Cook
	WPL LIT312900
	WPL LIT312914
	WPL LIT313358
	WPL LIT3147287
	WPL LIT3147573
	WPL LIT3149025
	WPL LIT884515
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	Seal, Door
8	WP313808 Whirlpool Screw
9	Baffle, Top Insulation
10	Side Trim (Left Side)
10	Side Trim (Right Side)
11	Oven, 30“
12	SCREW
12	Bracket, Oven Mounting (2)
14	98005642 Whirlpool Clip
15	Hinge Ear, L.H.
15	Hinge Ear, R.H.
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Switch, Lock
20	Screw (2)
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	Spring, Oven Door (2)
23	Tube, Vent
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
27	Screw (2)
28	W11594027 Whirlpool Range Oven Light Socket
29	RANGE ONLY 40W 120V APPL BULB
32	WP488729 Whirlpool Refrigerator Door Screw
32	WPL 311982
33	Screw (3)
33	Latch Assembly
34	Safety Switch
34	Screw
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Screw
37	Latch, Handle
38	Screw, 80 x 5/16
38	Knob, Latch Handle
39	Switch, Door
40	WPL 3147864
47	Grill, Bottom (Screw (3))
47	Grill, Bottom
52	Panel, Back (2)
53	Screw (10-12 x .875)
53	WP112432 Whirlpool Nut Assembly
53	WP8203546 Whirlpool Terminal Block
53	WPL 3147001
54	WPL 310458
55	Angle, Support (2)
56	Cover, Rear
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 3149328
62	WPL 310434
62	WPL 308172
62	WPL 310433
