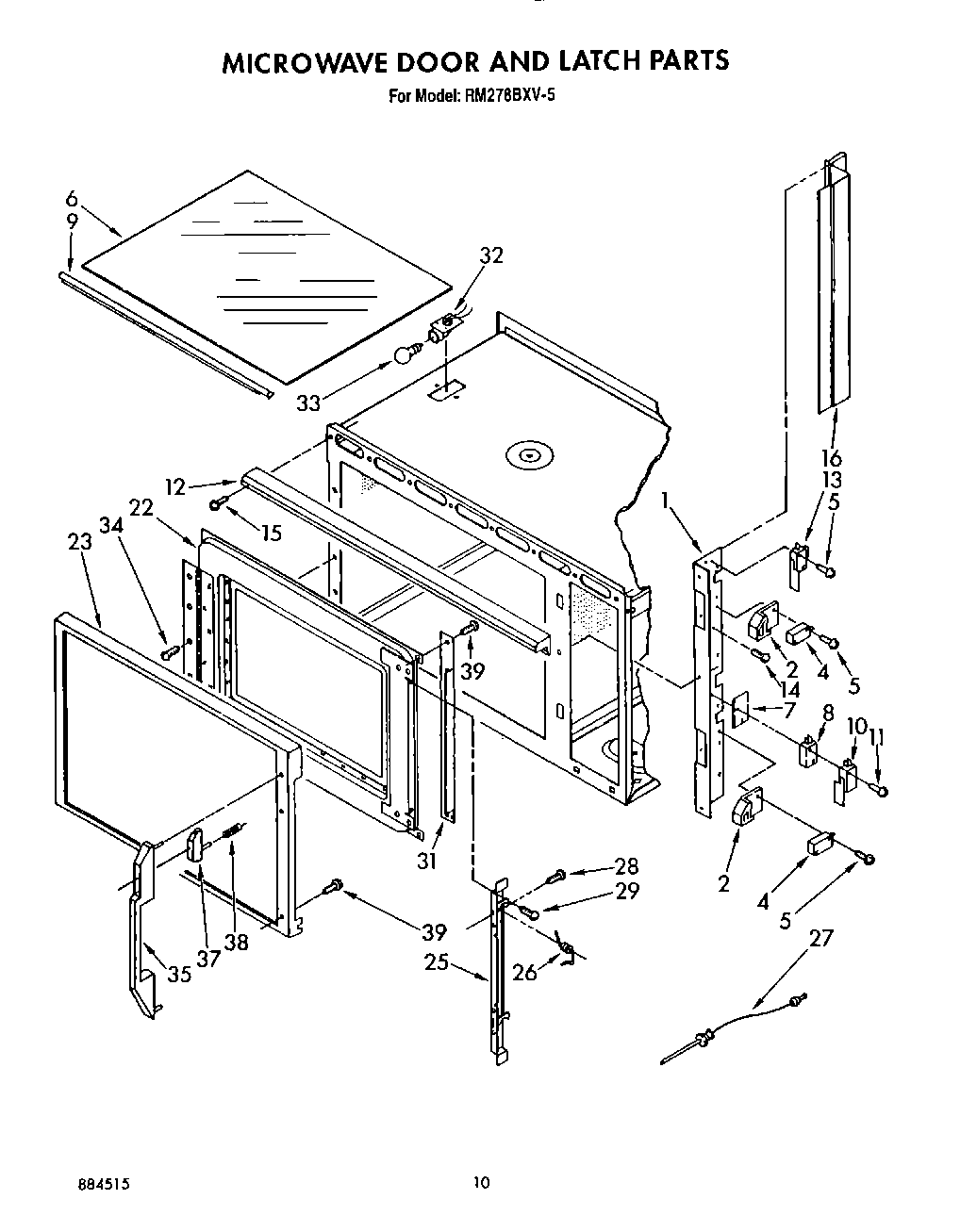

RM278BXV6 07 – MICROWAVE DOOR AND LATCH

Products

Position	Product
1	Bracket, Catch
2	Catch (2)
4	814037 Whirlpool Microwave Switch
5	WPL 312717
6	Shelf, Microwave (Install with Silastic 482338)
7	Insulator
8	Spring
8	Switch
8	Switch (Alt.)
9	W10841140 Whirlpool Dishwasher Adhesive
9	Trim, Shelf (Rear)
9	Trim, Shelf (Front)
10	Switch, Light Monitor (Alt.)
10	Switch, Light/ Monitor
10	Switch, Light Monitor (Alt.)
11	Screw, 4-40 x 10 (2)
12	Grille, Air
12	screw (3)
13	Switch, Miniature
14	WPL 309080
15	Screw, 6-20 x 1/2 (3)
16	shield
22	Door, Inner
23	Frame, Door
25	Latch Assembly
26	Spring, Torsion (2)
27	(Alt.)
28	303776 Whirlpool Dishwasher Screw
29	Screw (2)
31	Screw, 8-22 (5)
31	End Cap
32	Snap-In Socket
33	screw
33	WP3395618 Whirlpool Light Bulb
34	WPW10068250 Whirlpool Dishwasher Screw
35	Handle, Door
37	313611 Whirlpool Microwave Door Button
38	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
39	Screw
