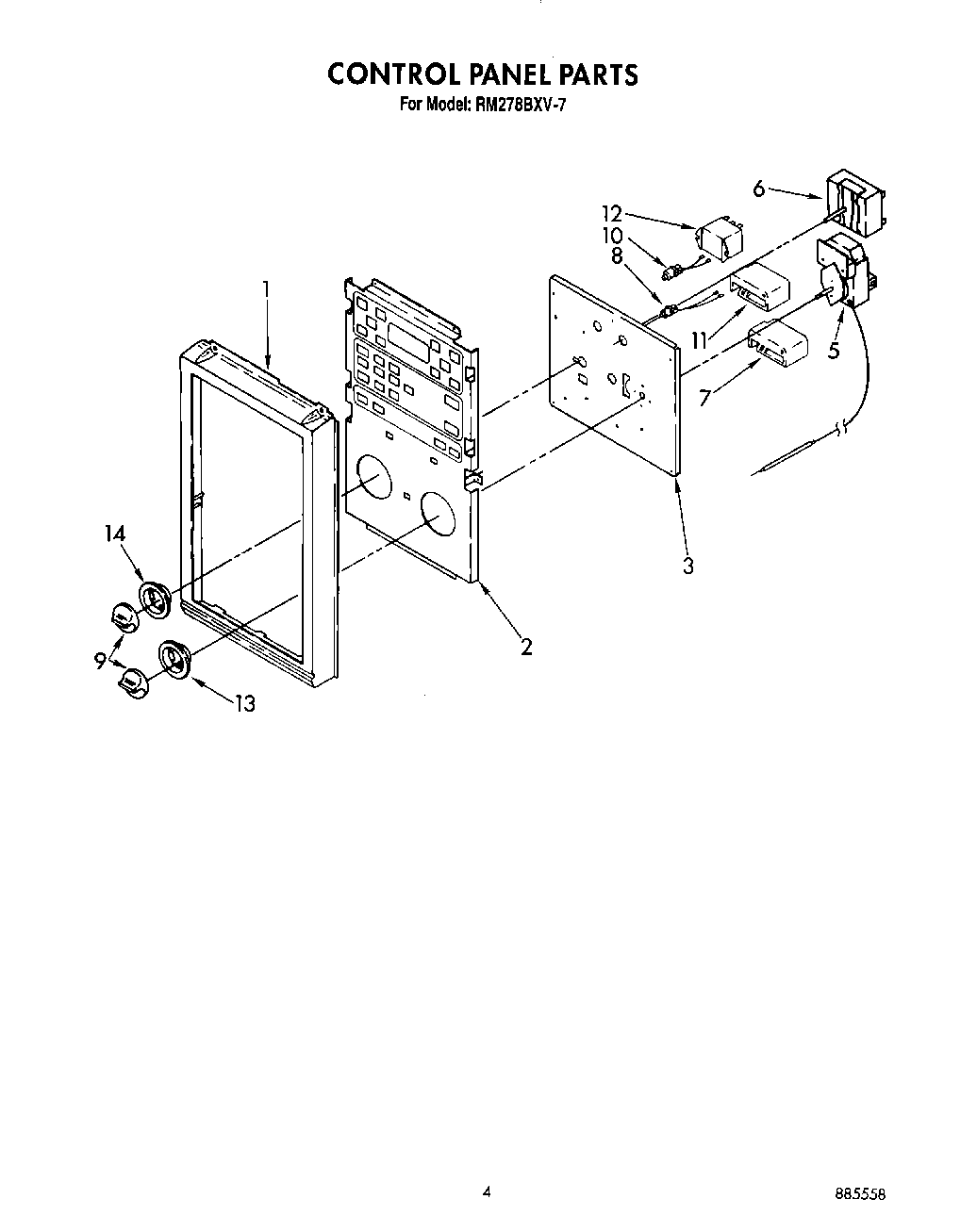

RM278BXV7 03 – CONTROL PANEL

Products

Position	Product
1	Frame, Control Panel
2	Screw
2	Module, Control
3	Bracket, Control (Mounting)
5	WP313808 Whirlpool Screw
5	Thermostat
6	Switch, Selector
6	Screw, 8-32 x 3/16 (2)
7	Switch, Bake
8	Light, Indicator (4)
9	WP3150371 Whirlpool Control Knob
10	Light, Indicator
10	WPL 312006
11	WPL 314215
11	Sw
12	Relay, Vent (24V, Clear)
12	Screw
13	Escutcheon, Thermostat
14	WP311068 Whirlpool Dial Knob Black
14	Screw,
