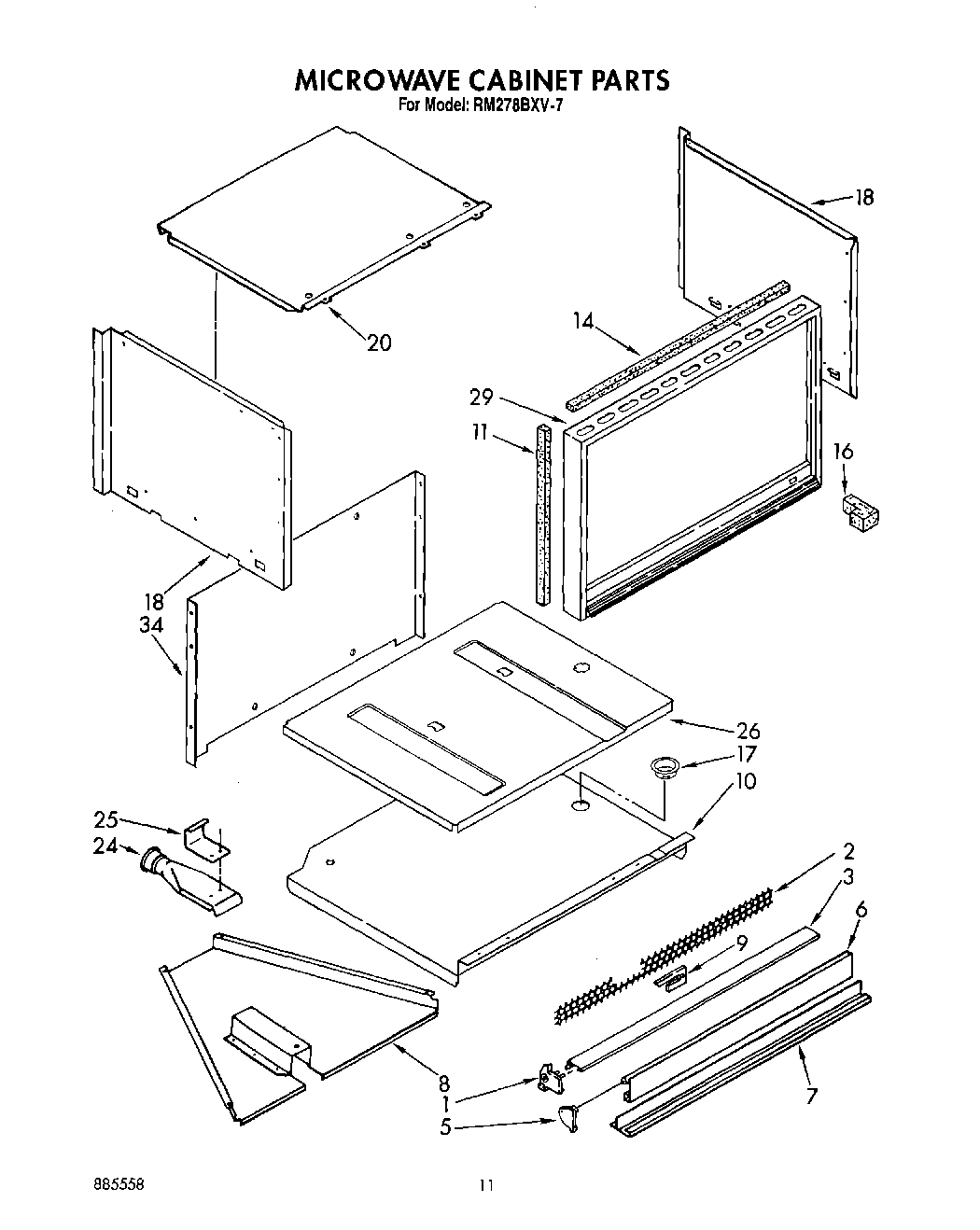

RM278BXV7 07 – MICROWAVE CABINET, OPTIONAL

Products

Position	Product
1	End Cap, L.H.
1	End Cap, R.H.
2	Trim, Oven Vent
3	Screw
3	Trim, Top
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Door, Vent
7	Screw, 10-32 x 1/2
7	Trim, Bottom
8	Box Air
9	Shield, Air
10	Support Plate
11	WPL 3147595
14	WPL 3147596
16	screw
16	Screw, 10A x 1/2 (2) (Black)
16	Seal, Foam (2)
17	Bushing, Snap
18	Side Panel, R.H.
18	Side Panel, L.H.
20	Panel, Top
24	Vent Tube
25	Screw,
25	Support, Vent Tube
25	WP488729 Whirlpool Refrigerator Door Screw
26	Panel, Support
29	Frame, Outer
34	Almond (Uncut)
34	Toast
34	Paint, Spray (13 Oz.) (Platinum)
34	Enamal, Toast (1 Qt. Uncut)
34	Platinum (Uncut)
34	WPL 72112
34	350942 Whirlpool Spray Paint
34	WPL 3171507
34	Golden Harvest (Uncut)
34	Golden Harvest
34	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
34	350930 Whirlpool White Spray Paint
34	350956 Whirlpool Spray Assembly
34	72017 Whirlpool Appliance Touch-Up Paint White
34	799344 Whirlpool Refrigerator Paint
34	WP72107 Whirlpool Touchup
34	Cover, Rear
34	72113 Whirlpool Touch-Up Paint
34	Leveler (Thinner)
34	261900 Whirlpool Microwave Spray
34	Wire, 25` Roll (Black 14 Ga.)
34	Wire (14 Ga. 150 c Yellow)
34	Wire (14 Ga. 150 c Orange)
34	Wire (14 Ga. 150 c Green)
34	Wire (14 Ga. 150 c Brown)
34	Wire (14 Ga. 150 c Blue)
34	WP261869 Whirlpool Microwave Paint
34	242831 Whirlpool Oven Wire
34	285006 Whirlpool Spray
34	WP482338 Whirlpool Refrigerator Adhesive
34	Wire, 25“ Roll (White 14 GA.)
34	18 Ga. 80~c Rating (Red)
34	WPL 786032
34	WPL 786020
34	WPL 799832
34	Wire (12 Ga. 150 c Black)
34	Wire, 25` Roll (Red 14 Ga.)
34	WPL 591014
34	WPL 350806
34	1
34	Wire (14 Ga. 200 c Brown)
34	72032 Whirlpool Touch Up Paint Black
