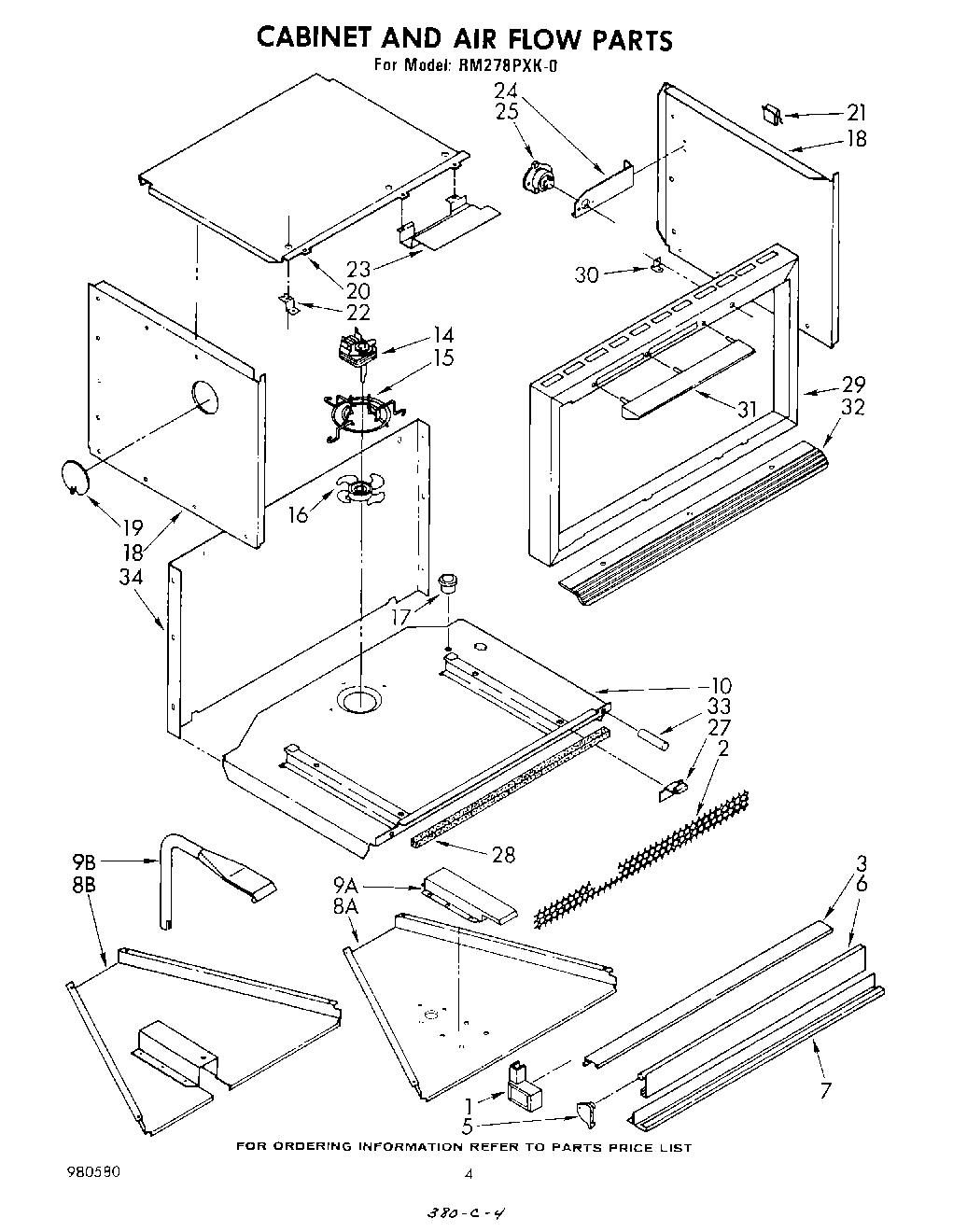

RM278PXK0 03 – CABINET AND AIR FLOW

Products

Position	Product
1	End Cap, R.H.
1	End Cap, L.H.
1	Screw (2)
2	Trim, Oven Vent
3	Trim, Top
5	End Trim, Vent Door L.H.
5	End Trim, Vent Door R.H.
6	Door, Vent
7	Panel, Side L.H. (Screw, 10A x 1/2 (2))
7	Screw, 10-32 x 1/2
7	Trim, Bottom
8	WPL 329829
8	Box Air
9	Vent Channel
9	Vent Tube
10	Support Plate
14	Motor Fan (Alternate)
14	Motor, Fan (Alternate)
15	Mount, Fan Motor
15	Nut, Hex 6-32 (2)
16	Blade, Fan
17	Bushing, Wire
18	Side Panel, R.H.
18	Side Panel, L.H.
19	Cover, Light
20	Panel, Top
21	Clip (2)
22	Bracket, Support
23	Probe, Shield
24	Bracket, Heat Sensor
24	Screw
25	Thermostat
27	Bracket, Front Support
27	Screw
28	Seal Foam
29	Frame, Outer
30	Bracket, Control Panel Mounting
30	Screw, 10A x 1/2 (2) (Black)
31	WPL 309499
31	Pushnut, Ziptwist (3)
32	WP488627 Whirlpool Refrigerator Screw
32	Hood, Lower Vent
33	Silicone Rubber Gasket (For Key 26)
33	Screw, 10A x 1-5/8 (2)
34	WP308685 Whirlpool Microwave Screw
34	Cover, Rear
