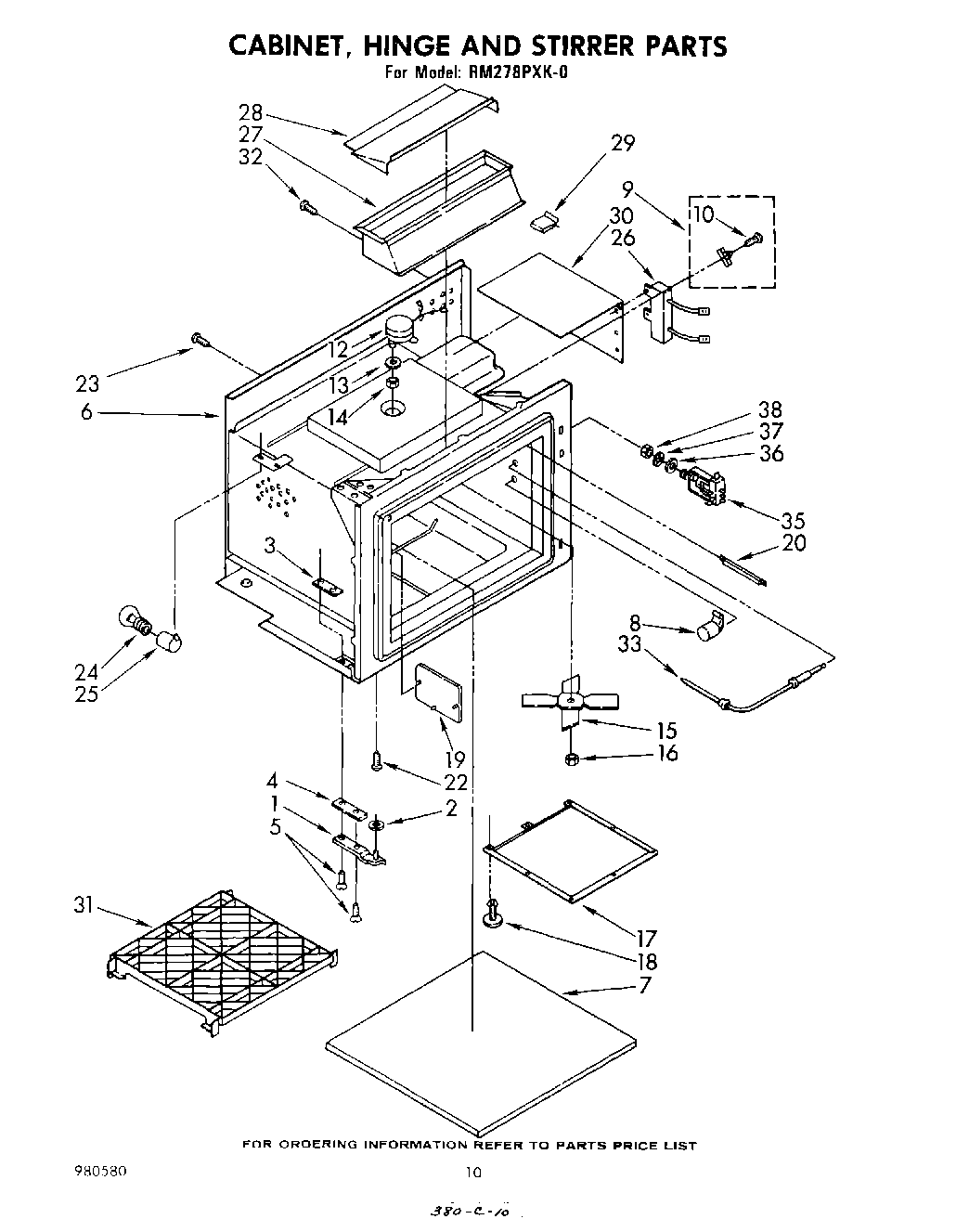

RM278PXK0 06 – CABINET, HINGE, AND STIRRERadmin2025-04-26T12:06:10+00:00RM278PXK0 06 – CABINET, HINGE, AND STIRRER
Products
| Position | Product |
|---|
| 1 | hinge door (bottom) |
| 1 | hinge door (top) |
| 2 | WPL 312147 |
| 3 | plate, hing (2) (top & bottom) |
| 4 | Hinge, Shim Locking (2) |
| 5 | screw, oval head (4) |
| 6 | Cavity & Base Assembly (Not Serviceable) |
| 7 | Base, Ceramic (Install W/Silastic No. 482338) |
| 7 | Shelf, Microwave (Alt.) |
| 8 | Support, Shelf (4) |
| 9 | Fuse, Thermal |
| 10 | Screw |
| 12 | motor, stirrer (alternate) |
| 12 | Motor, Stirrer (Alternate) |
| 15 | Stirrer Blade |
| 16 | Nut, Hex (1/4-20) |
| 17 | Cover, Stirrer |
| 18 | Fastener (2) |
| 19 | Shield, Exhaust Probe |
| 20 | Cover, Rivet |
| 22 | panel, top (screw, 10a x 3/8 (3)) |
| 23 | WP308685 Whirlpool Microwave Screw |
| 24 | Socket, Snap-In |
| 25 | RANGE ONLY 40W 120V APPL BULB |
| 26 | Relay, Reed |
| 26 | Reed Relay (Alternate) |
| 26 | WP965173 Whirlpool Dishwasher Screw |
| 27 | Baffle, Air Exhaust |
| 28 | Air Deflector |
| 29 | Clip, Air Cover (3) |
| 30 | 2570B00 |
| 31 | rack, oven |
| 32 | WP488627 Whirlpool Refrigerator Screw |
| 33 | temperature probe (alternate) |
| 33 | temperature probe (alternate) |
| 35 | Jack, Probe |
| 36 | Washer, Internal Lock |
| 37 | Washer |
| 38 | Nut |
