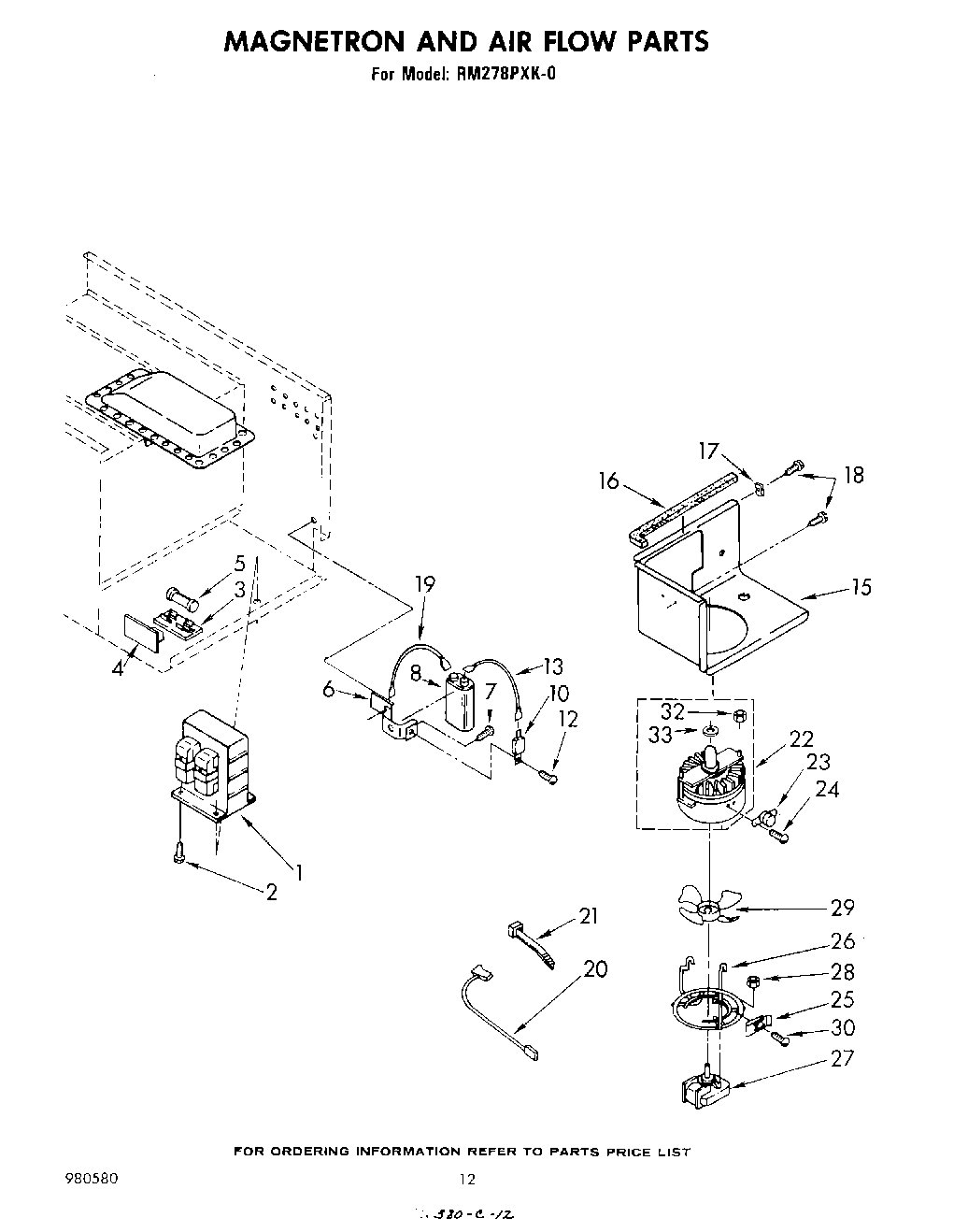

RM278PXK0 07 – MAGNETRON AND AIR FLOW , LITERATURE

Products

Position	Product
	WPL LIT311764
	WPL LIT308500
	WPL LIT980580
	WPL LIT309600
	WPL LIT310848
	WPL LIT310929
	WPL LIT311422
	WPL LIT311436
1	Transformer
2	Screw, 10-32 x 1/2 Hex Washer W/Ground Ring (10)
3	Block, Fuse
4	Shield, Fuse
5	WPW10017410 Whirlpool Fuse
6	Bracket, Capacitor
7	Main Chassis (Screw, 10-32 x 1/2)
8	Cabinet Side (Right)
8	Cabinet Side (Left)
10	Rectifier, High Voltage
12	WPL 310629
13	WPL 311466
15	Duct, Cooling Air
16	WP854334 Whirlpool Air Conditioner Sealing Strip
17	Clip (2)
18	WP965173 Whirlpool Dishwasher Screw
19	WPL 311467
20	Wire, High Voltage (Capacitor)
21	WPW10339879 Whirlpool Wire Tie
22	magnetron (alternate)
22	Magnetron (Alternate)
23	Thermostat
24	Screw
25	fastener, speed nut
26	mount, fan motor
27	Motor, Fan
28	Nut
29	Blade, Fan
30	SCREW
32	Flange Nut (4)
33	Wire, 25` Roll (Black 14 Ga.)
33	Wire, 25` Roll (Red 14 Ga.)
33	Wire (14 Ga. 200 c Brown)
33	WPL 799832
33	WPW10208653 Whirlpool Insulation
33	Wire, 25“ Roll (White 14 GA.)
33	Wire (14 Ga. 150 c Orange)
33	Wire (14 Ga. 150 c Yellow)
33	Wire (12 Ga. 150 c Black)
33	18 Ga. 80~c Rating (Red)
33	1
33	WPL 591014
33	Rotisserie Kit
33	Wire (14 Ga. 150 c Brown)
33	Grease
33	WP75614 Whirlpool Connector
33	Wire (14 Ga. 150 c Blue)
33	242831 Whirlpool Oven Wire
33	WP482338 Whirlpool Refrigerator Adhesive
33	Browning Tray (Micro)
33	Gasket, Magnetron (Use W/Panasonic Magnetron)
33	Wire (14 Ga. 150 c Green)
