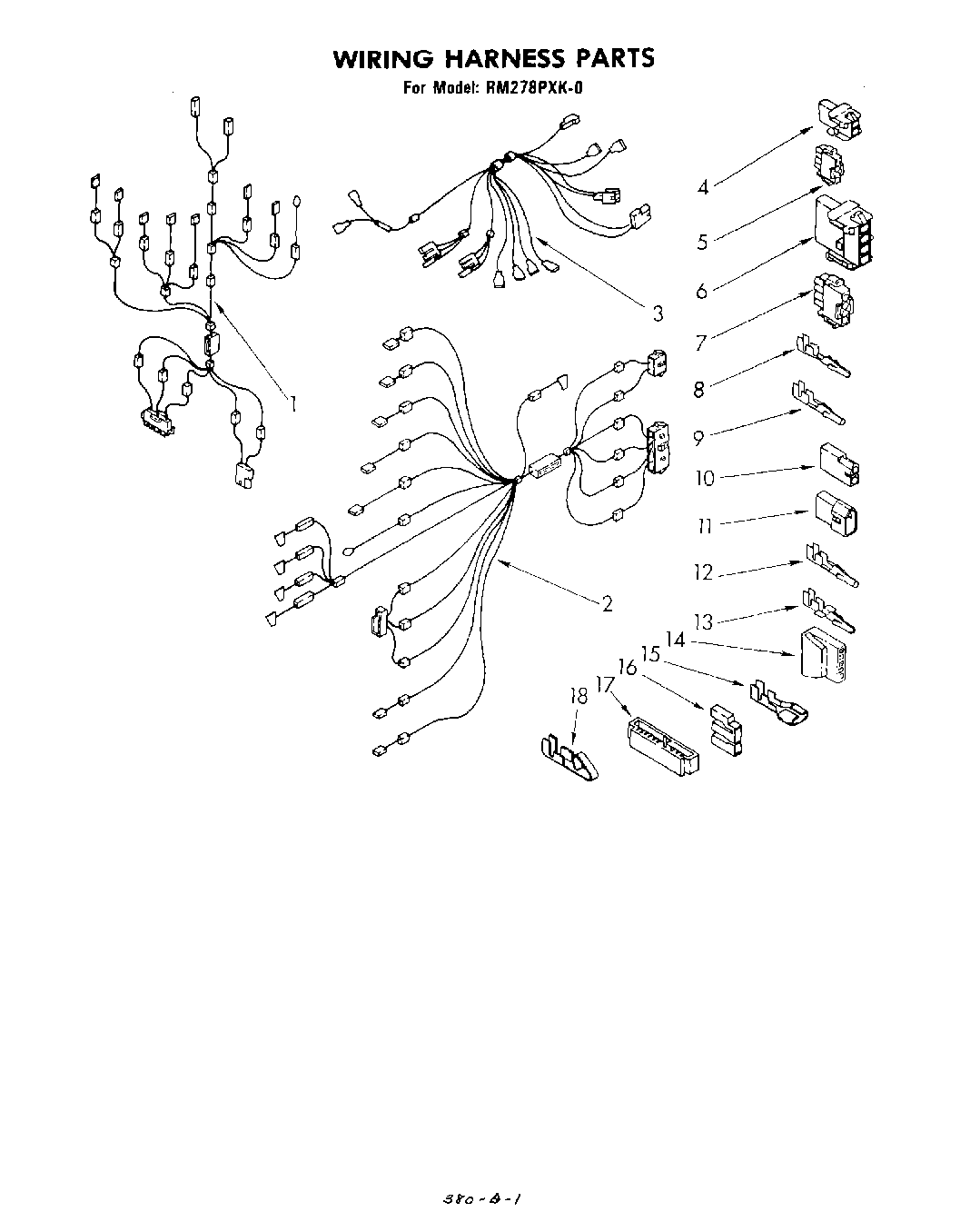

RM278PXK0 09 – WIRING HARNESS

Products

Position	Product
1	harness, main
2	Harness, Circuit Board
2	Harness, Control Panel
3	harness, interlock
4	cap, terminal (uses 310222 or 310223 pin terminal)
5	plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
6	Disconnect Block, Female
7	Disconnect Block (4 Terminal)
8	Harness, Wiring (Connector (11))
9	Harness, Wiring (Connector (6))
10	Receptacle, Latching (2-Way) (Uses Terminal 94614)
11	WP717253 Whirlpool Dishwasher Connector
12	WP94614 Whirlpool Terminal
13	WP596797 Whirlpool Terminal
14	Connector, Housing Relay
15	Term Or
16	Housing, Plug
17	WPL 309606
18	Terminal
