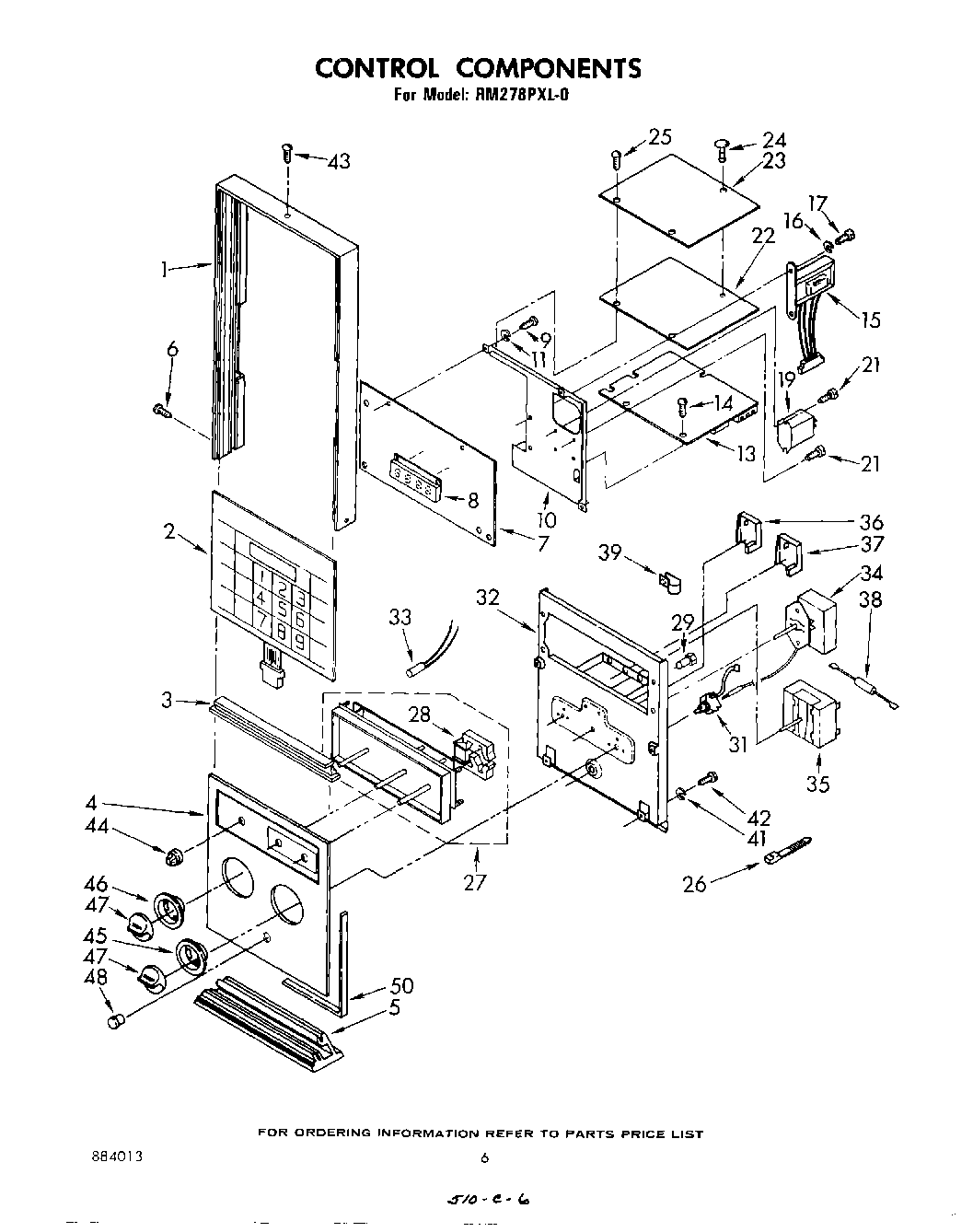

| 1 | Frame, Control Panel |
| 2 | WPL 312618 |
| 3 | Splice Panel |
| 4 | Control Panel, Glass |
| 5 | Cap, Control Panel |
| 6 | NAMEPLATE |
| 7 | Display Assembly (Includes Illus. 8) |
| 7 | clip, clock to socket (2) |
| 8 | clock, l.e.d. |
| 10 | Bracket, P.C. Board |
| 10 | Screw |
| 13 | Powe |
| 15 | Transformer & Harness Assembly |
| 19 | relay power (12 v.d.c.) (alternate) |
| 19 | relay power (12 v.d.c.) (alternate) |
| 21 | Screw |
| 22 | Microcomputer Assembly |
| 23 | Catch-Storage Door 18850A Models |
| 24 | WPL 310951 |
| 25 | WPL 309080 |
| 26 | WPW10339879 Whirlpool Wire Tie |
| 27 | Timer |
| 28 | Motor, Timer |
| 29 | Nut, Aluminum (4) |
| 31 | Support-Storage Drawer (Lt. or Rt.) |
| 32 | Bracket, Control Mounting |
| 33 | Light, Indicator 250V (6) |
| 34 | Thermostat (Lower Oven) |
| 34 | screw, 6-32 x 1/4 (2) |
| 35 | Selector Switch |
| 35 | Screw, 8-32 x 3/16 (2) |
| 36 | Switch, Broil |
| 37 | WPL 311585 |
| 38 | Resistor & Terminal Assembly |
| 39 | WP965173 Whirlpool Dishwasher Screw |
| 39 | 488946 Whirlpool Air Conditioner Clamp |
| 39 | WP308605 Whirlpool Refrigerator Clamp |
| 41 | Lockwasher |
| 42 | WP486754 Whirlpool Compactor Screw |
| 43 | Screw |
| 44 | knob, timer |
| 45 | Escutcheon, Thermostat |
| 46 | Screw, |
| 46 | WP311068 Whirlpool Dial Knob Black |
| 47 | WP3150371 Whirlpool Control Knob |
| 48 | bezel, switch (2) |
| 50 | Support-Top Burner |
