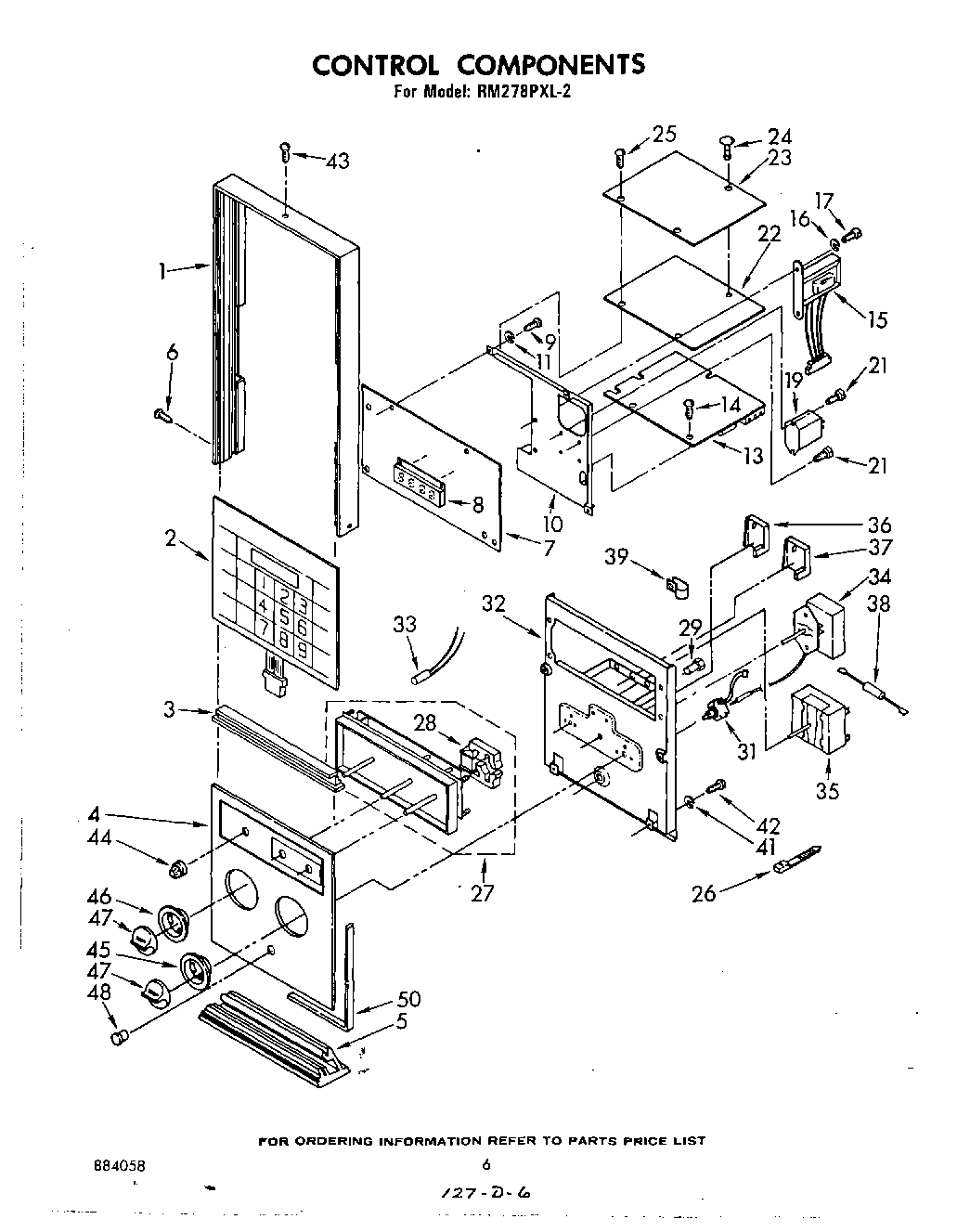

RM278PXL2 04 – CONTROL COMPONENTS

Written by

Products

Position	Product
1	Frame, Control Panel
2	WPL 312618
3	Splice Panel
4	Control Panel, Glass
5	Bottom Cap, Control Panel
6	NAMEPLATE
7	clip, clock to socket (2)
7	Display Assembly (Includes Illus. 8)
8	clock, l.e.d.
10	Bracket, P.C. Board
10	Screw
13	Powe
15	Transformer & Harness Assembly
19	relay power (12 v.d.c.) (alternate)
19	relay power (12 v.d.c.) (alternate)
21	Screw
22	Microcomputer Assembly
23	Catch-Storage Door 18850A Models
24	WPL 310951
25	WPL 309080
26	WPW10339879 Whirlpool Wire Tie
27	Timer
28	Motor, Timer
29	Nut, Aluminum (4)
31	Support-Storage Drawer (Lt. or Rt.)
32	Bracket, Control Mounting
33	Light, Indicator 250V (6)
34	screw, 6-32 x 1/4 (2)
34	Thermostat (Lower Oven)
35	Screw, 8-32 x 3/16 (2)
35	Selector Switch
36	Switch, Broil
37	WPL 311585
38	Resistor & Terminal Assembly
39	WP965173 Whirlpool Dishwasher Screw
39	488946 Whirlpool Air Conditioner Clamp
39	WP308605 Whirlpool Refrigerator Clamp
41	Lockwasher
42	WP486754 Whirlpool Compactor Screw
43	Screw
44	WPL 312808
45	Escutcheon, Thermostat
46	WP311068 Whirlpool Dial Knob Black
46	Screw,
47	WP3150371 Whirlpool Control Knob
48	bezel, switch (2)
50	Support-Top Burner
