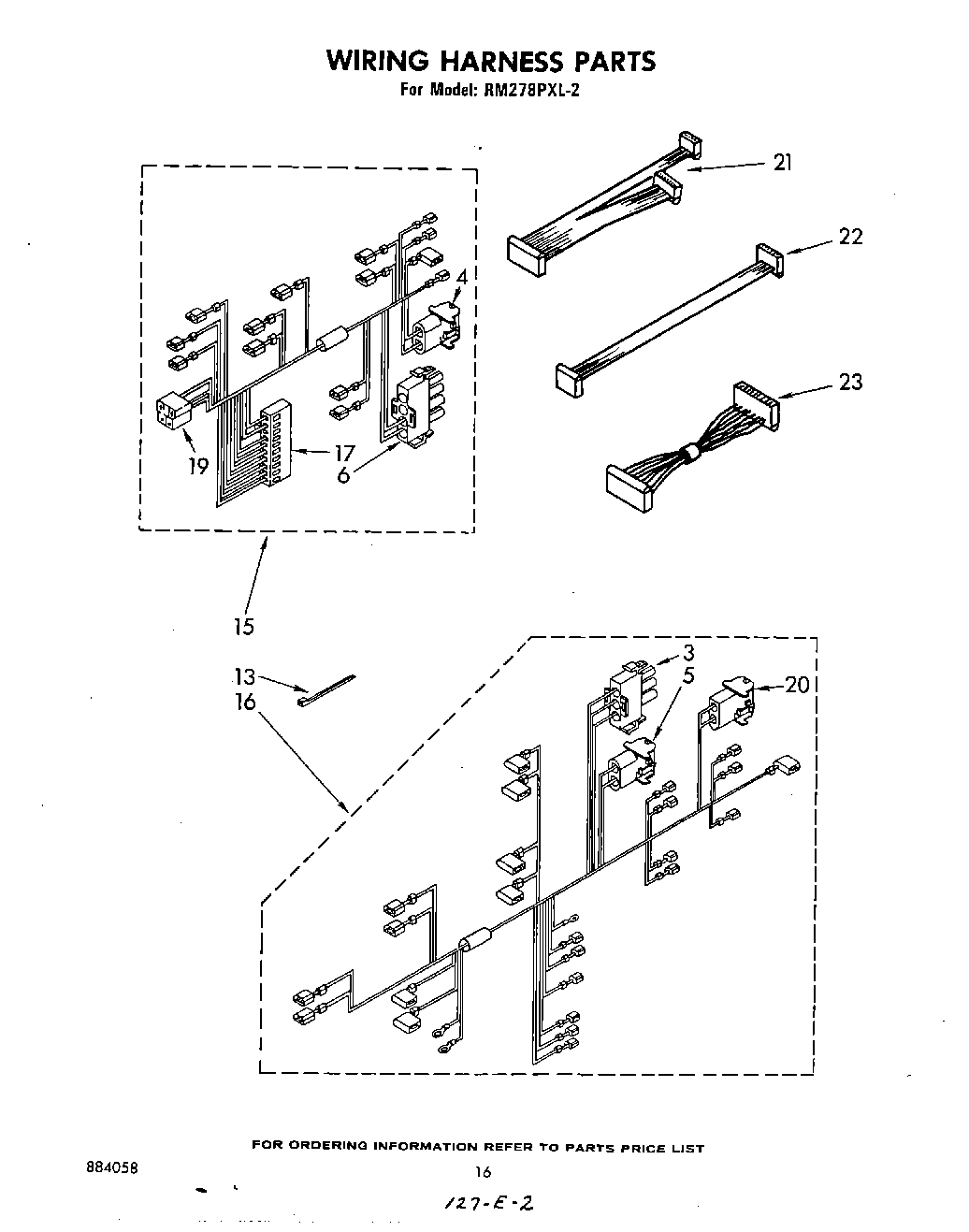

RM278PXL2 10 – WIRING HARNESS , LITERATURE AND OPTIONAL

Products

Position	Product
	Enamel, Black (1 Qt. Uncut)
	799344 Whirlpool Refrigerator Paint
	Almond (Uncut)
	Golden Harvest (Uncut)
3	Disconnect Block (4 Terminal)
4	plug, circuit (uses 310959 cap) (uses 310222 or 310223 pin terminal)
5	cap, terminal (uses 310222 or 310223 pin terminal)
6	Disconnect Block, Female
13	WPW10339879 Whirlpool Wire Tie
15	Harness Control Panel
16	Harness, Interlock
17	housing, ten-circuit connector
19	WPL 308568
20	Receptacle, Latching (2-Way) (Uses Terminal 94614)
21	Display Harness
22	Power Supply Harness
23	Leveler (Thinner) (2oz.)
23	Grease
23	261900 Whirlpool Microwave Spray
23	Spacer-Oven Door Glass (Lt. or Rt.)
23	WPL 799351
23	WP75614 Whirlpool Connector
23	WPL 308500
23	Touch-Up, Oven
23	Rack, Meat (Micro)
23	Touch Harness
23	Tech Sheet
23	Use & Care Guide
23	WPL 309600
23	Installation Instructions
23	WPL 884058
23	WPL 310848
23	Browning Tray (Micro)
23	Rotisserie Kit
23	WPL 591014
23	Wire, 25“ Roll (White 14 GA.)
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25` Roll (Black 14 Ga.)
23	WPW10208653 Whirlpool Insulation
23	WPL 799832
23	511873 Whirlpool Refrigerator Paint
23	350942 Whirlpool Spray Paint
23	Golden Harvest
23	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
23	WP72107 Whirlpool Touchup
23	72017 Whirlpool Appliance Touch-Up Paint White
23	350956 Whirlpool Spray Assembly
23	285006 Whirlpool Spray
23	72032 Whirlpool Touch Up Paint Black
23	1
23	Wire (14 Ga. 200 c Brown)
23	18 Ga. 80~c Rating (Red)
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	Wire (14 Ga. 150 c Green)
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	WP261869 Whirlpool Microwave Paint
23	242831 Whirlpool Oven Wire
23	WP482338 Whirlpool Refrigerator Adhesive
23	350930 Whirlpool White Spray Paint
