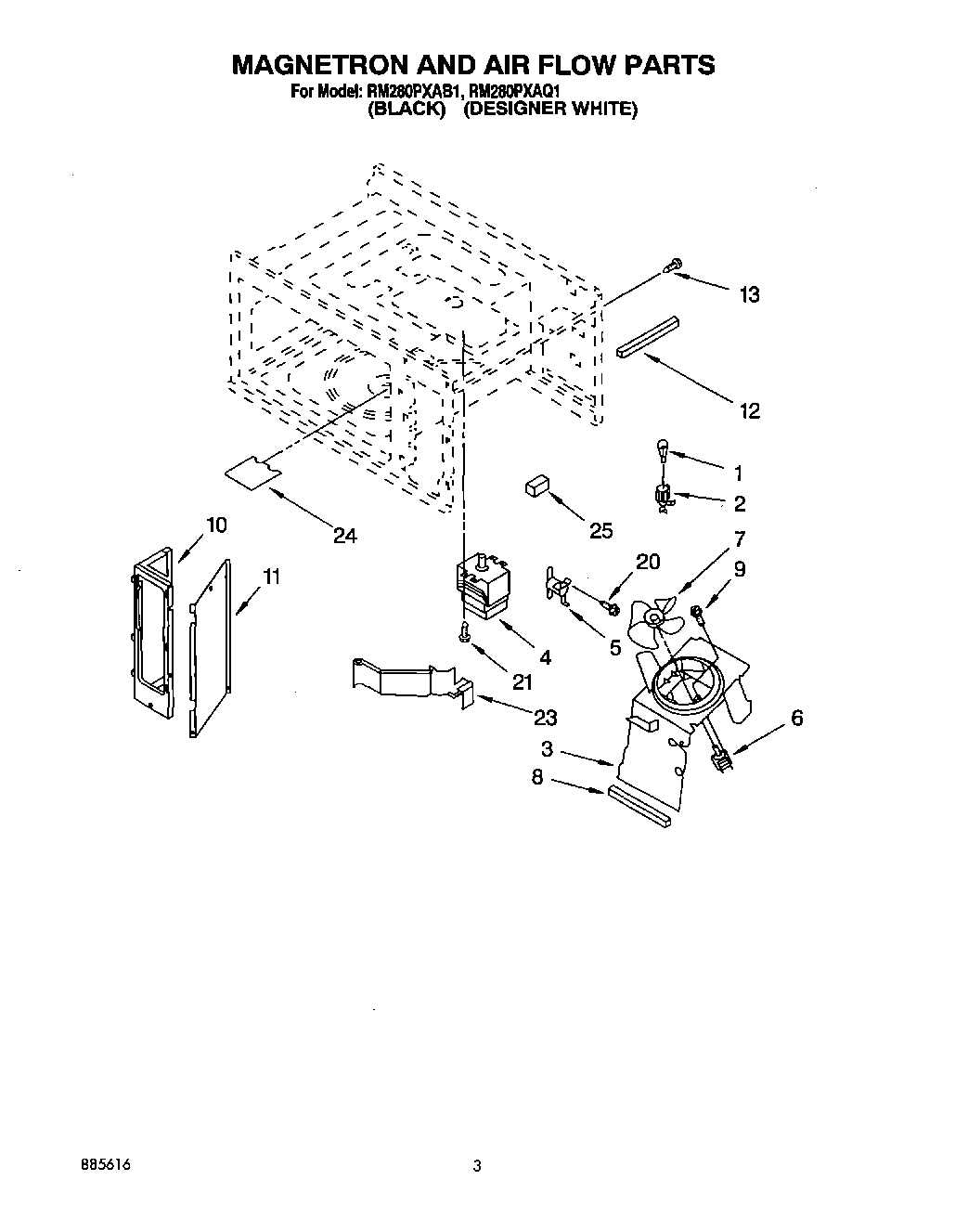

RM280PXAB1 03 – MAGNETRON AND AIR FLOW

Products

Position	Product
1	WPA3073101 Whirlpool Light Bulb
2	Socket, Lamp
3	Duct, Fan
4	Magnetron
5	Fuse, Magnetron Temp
6	Motor, Fan
7	Blade, Fan
8	Cushion, Motor
9	Screw
10	Faceplate
11	Cover
12	Cushion
13	Screw
20	Screw
21	Screw
23	Duct, Magnetron
24	Cover, Wave Guide
25	Shield, Magnetron
