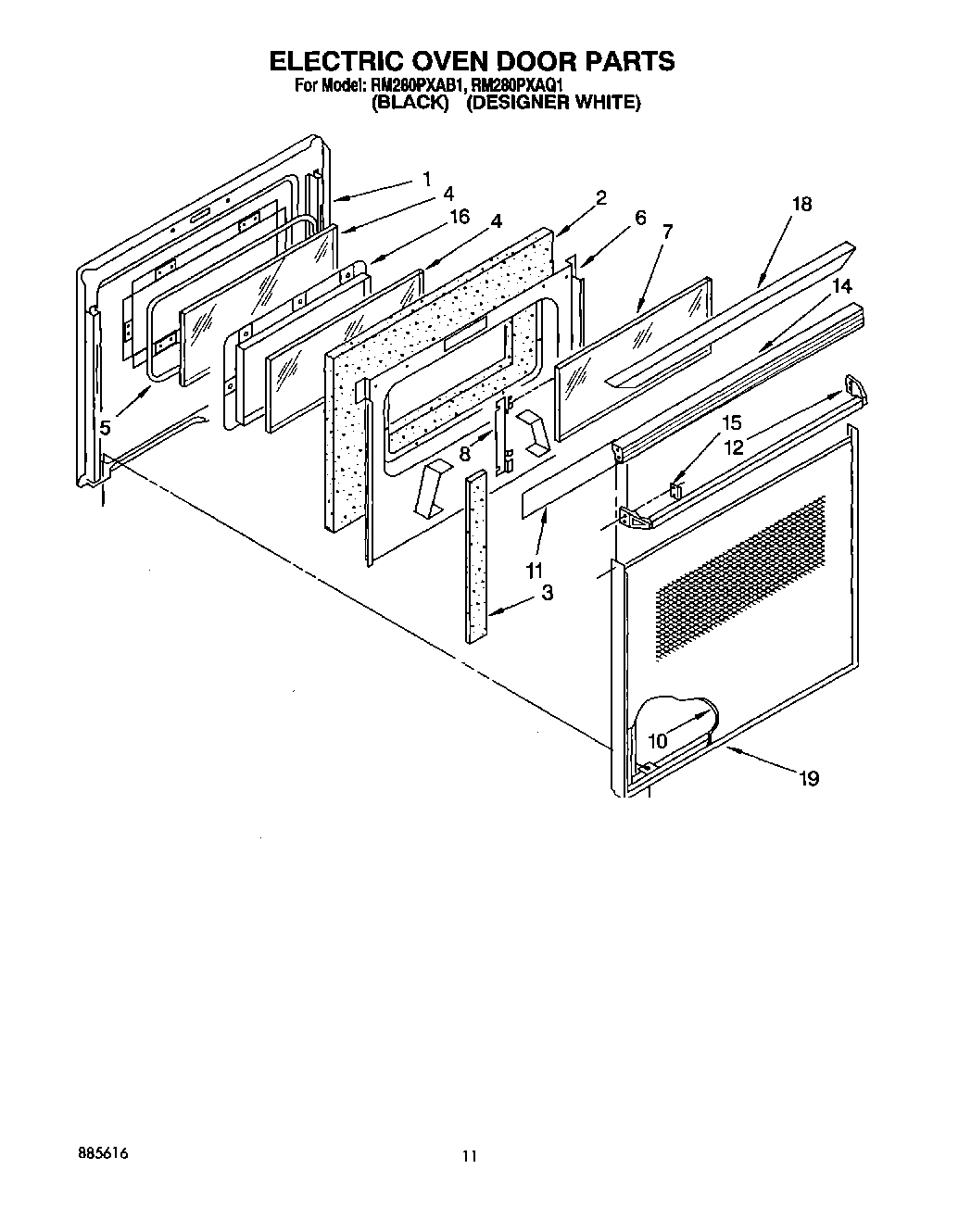

RM280PXAB1 08 – ELECTRIC OVEN DOOR
Written by
in
RM280PXAB1 08 – ELECTRIC OVEN DOOR
Products
Position
Product
1
Liner, Door
2
Insulation, Door
3
Seal, Flange (2)
4
WP3169203 Whirlpool Door Glass
5
Seal, Door
6
Retainer,
6
Screw
7
Glass, Clear
8
Retainer, Glass (2)
10
Glass, Panel (White)
10
Glass, Panel (Black Model)
11
Foil, Door
12
WP355515 Whirlpool Screw
12
Handle, Oven Door
12
Handle, Door (White)
14
Top, Door (White Model)
14
Handle, Door (Screw (4))
14
Top, Door (Black Model)
15
Clip, Mtg (2)
16
Frame, Inner
16
Screw
18
Cap, Top
18
WP308685 Whirlpool Microwave Screw
19
Frame, Door
←
