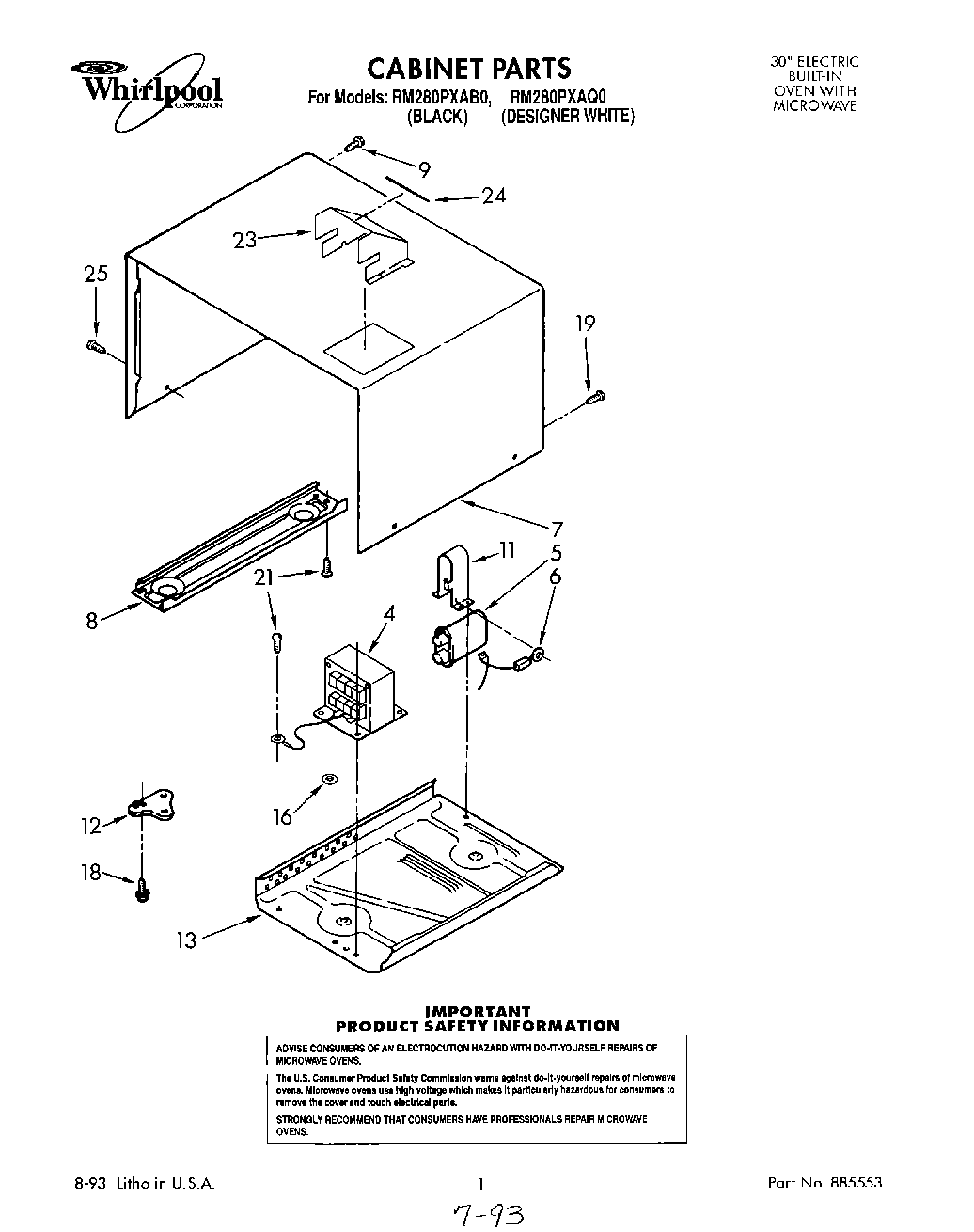

RM280PXAQ0 01 – CABINET

Products

PositionProduct
4Transformer
5Screw
5Capacitor
6Rectifier
7Outer Cabinet (White)
7Outer Cabinet (Black)
8Screw
8Base Plate, Left Side
9Screw
11Screw
11Bracket, Capacitor
12Hinge, Lower
13Base Plate, Right Side
16Washer, Trans. Ground
18Screw
19Screw
21Screw
23Duct, Exhaust
24Seal, Duct
25Screw
