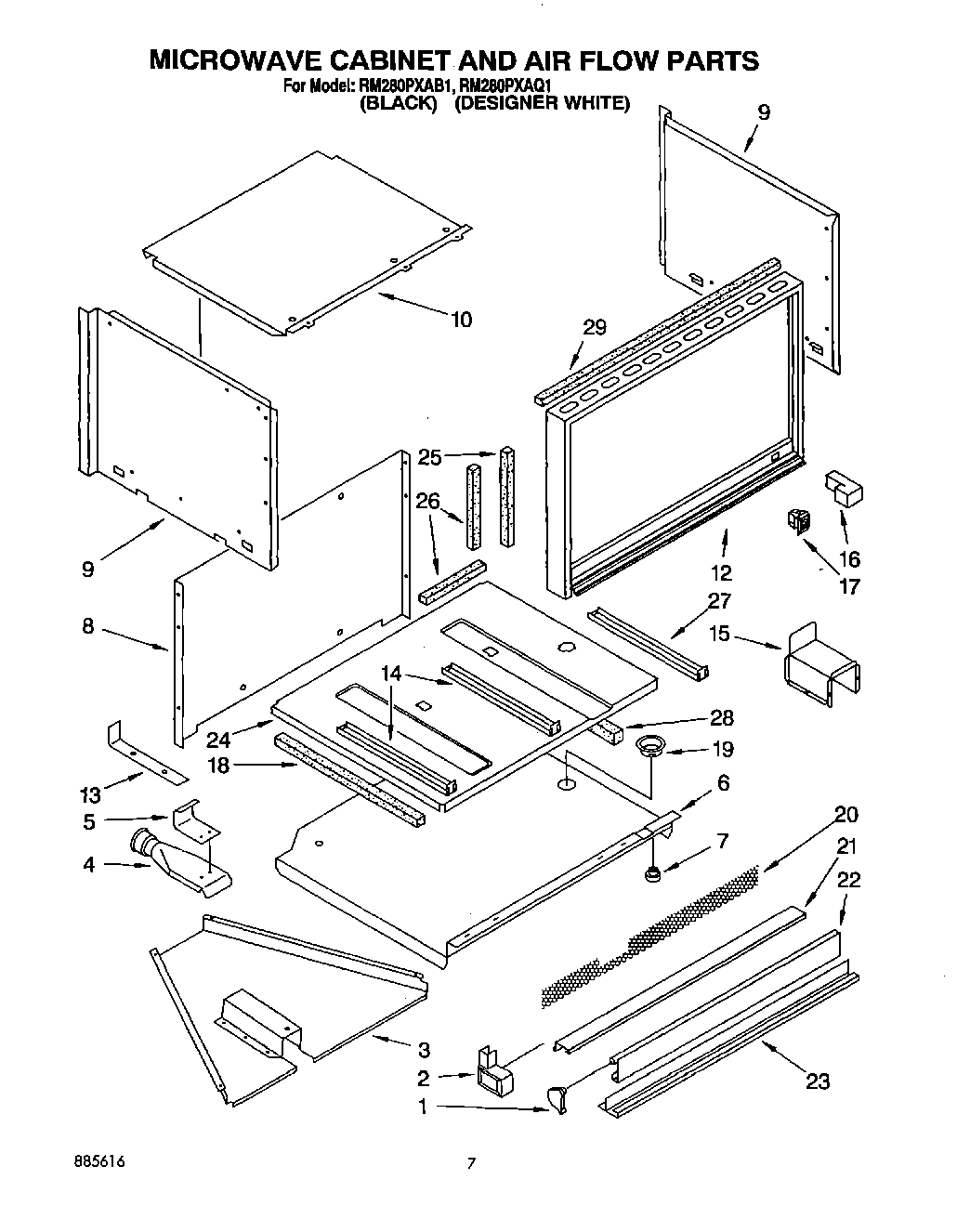

RM280PXAQ1 06 – MICROWAVE CABINET AND AIR FLOW

Products

Position	Product
1	End Trim, Vent (Right Side)
1	Trim, Vent Door (Brite Aluminum, R.H.)
1	Trim, Vent Door (Brite Aluminum, L.H.)
1	End Trim, Vent (Left Side)
2	End Cap, R.H.
2	End Cap, L.H.
2	End Cap (Washer)
3	Box Air
4	Vent Tube
5	Support, Vent Tube
5	Screw,
6	Support Plate
7	Snap Bushing
8	Cover, Rear
9	Side Panel L.H.
9	Side Panel, R.H.
10	Panel, Top
10	WP488729 Whirlpool Refrigerator Door Screw
12	Frame, Outer (White)
12	Frame, Outer (Black)
13	Brace, M/W Back
14	Rail, Chassis
15	Baffle, M/W Back
16	Block, Foam
16	screw
17	Switch, Rocker (White)
17	Switch, Rocker
19	Bushing, Snap
20	Trim, Oven Vent
21	Trim, Top
21	Trim, Top (White & Almond Model)
22	Door, Vent (Brushed Chrome)
22	Door, Vent
23	Trim, Bottom
23	WP965173 Whirlpool Dishwasher Screw
23	Screw, 10-32 x 1/2
24	Panel, Support
25	Seal, Foam
26	Seal, Foam
27	Rail, Microwave
28	Seal, Foam
28	WP90767 Whirlpool Screw
29	WPL 3147590
