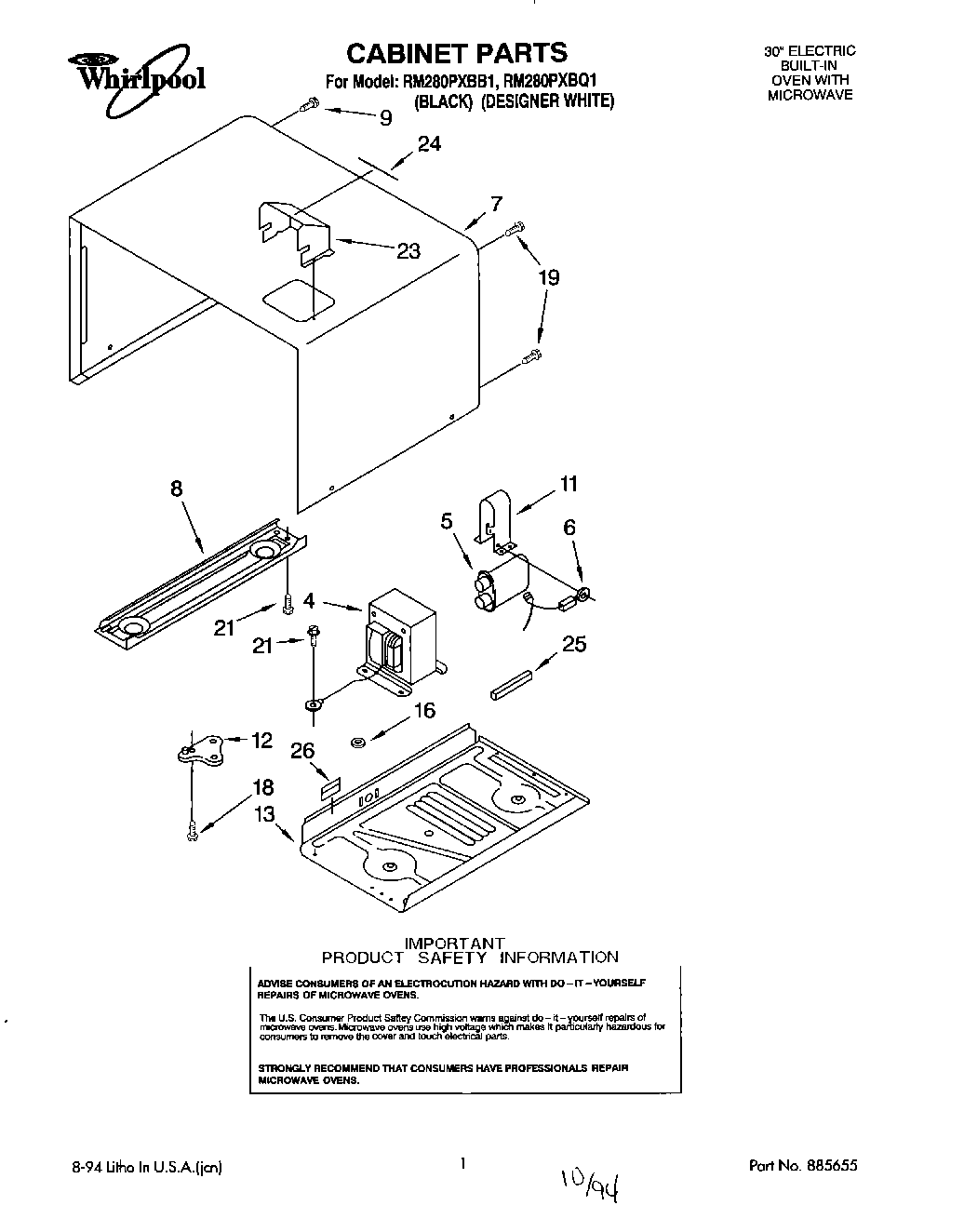

RM280PXBB1 01 – CABINET

Products

PositionProduct
4Transformer
5Screw
5Capacitor
6Rectifier
7Outer Cabinet (White)
7Outer Cabinet (Black)
8Screw
8Base Plate, Left Side
9Screw
11Bracket, Capacitor
11Screw
12Screw
12Hinge, Lower
13Base Plate, Right Side
13Screw
16Washer, Trans. Ground
18Screw
19Screw
21Screw
23Duct, Exhaust
24Screw
24Seal, Duct
25Cushion, Transformer
26Cushion, Baseplate
