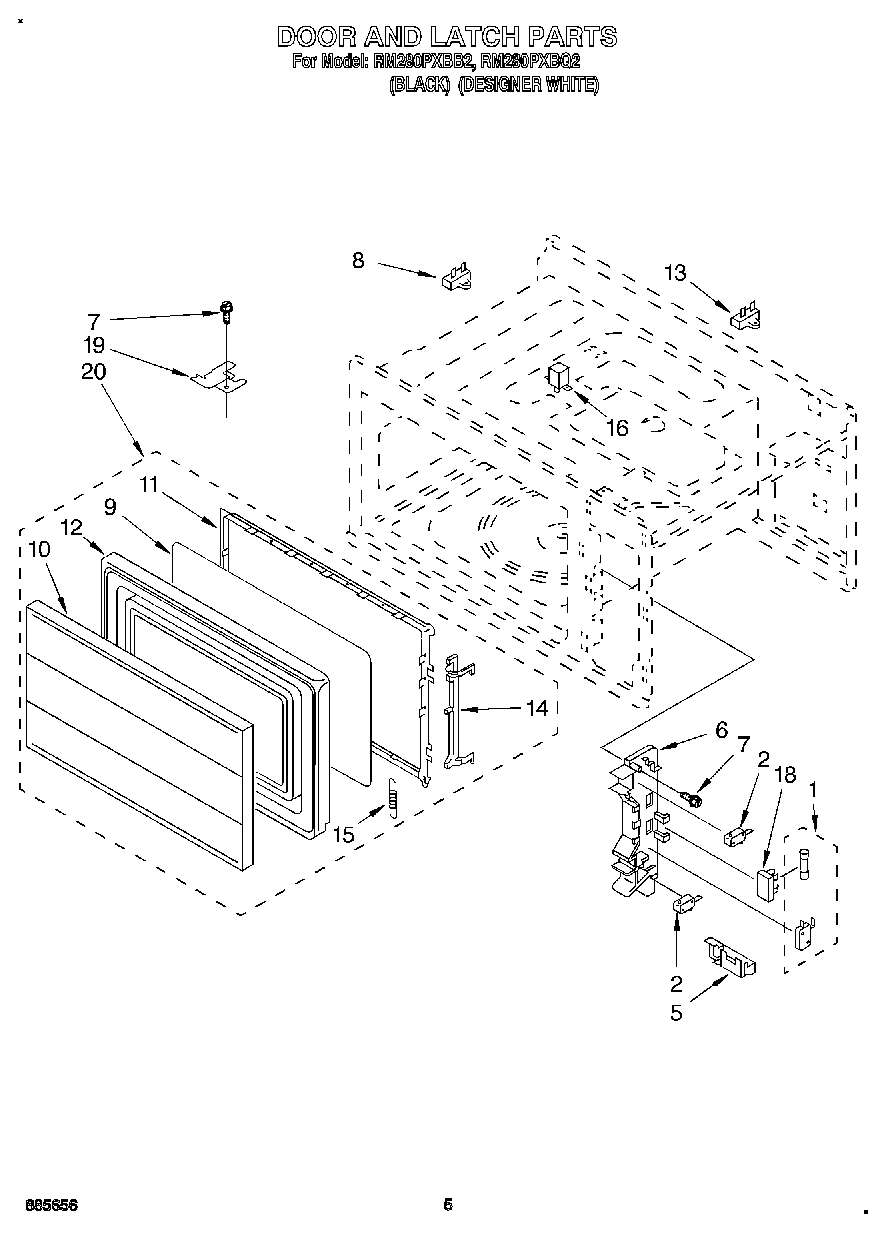

RM280PXBB2 05 – DOOR AND LATCH

Products

Position	Product
1	Switch and Fuse Assy.
2	4392027 Whirlpool Microwave Primary Switch
5	Latch Lever
6	Latch Hook
7	SCREW
8	Fuse, Temperature
8	Screw
9	Seal, Door (Not a Serviceable Part)
10	Screen, Door (White)
10	Screen, Door (Black)
11	Choke Cover (White Model)
11	Choke, Cover
12	Frame, Door (Not Serviceable)
13	Fuse, Temp
14	Latch, Door
14	Latch, Door (White Model)
15	Spring, Latch
16	Connector
16	Screw
18	Holder, Fuse
19	Hinge, Upper
20	Door, Complete (White)
20	Door, Complete (Black)
