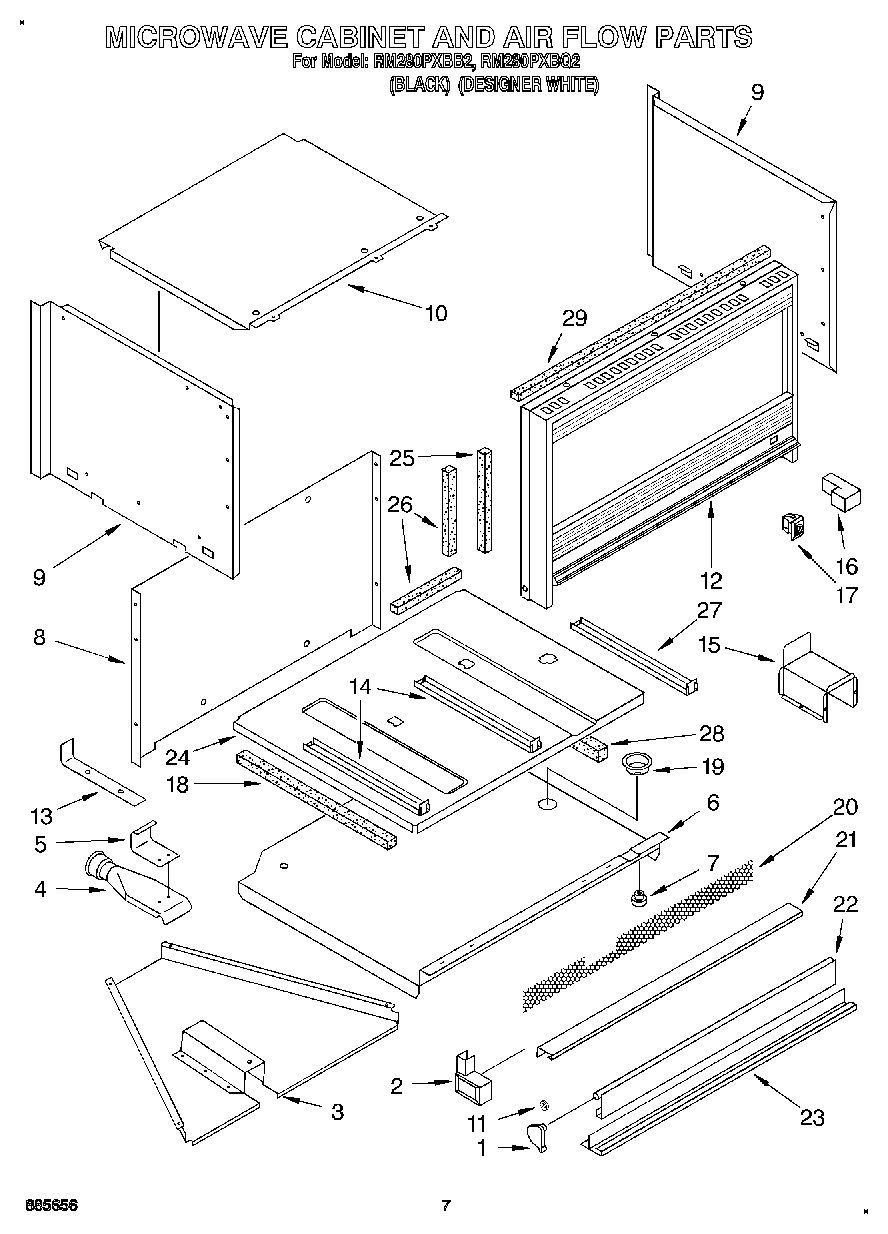

RM280PXBB2 06 – MICROWAVE CABINET AND AIR FLOW

Products

Position	Product
1	End Trim, Vent (Left Side)
1	Trim, Vent Door (Brite Aluminum, R.H.)
1	Trim, Vent Door (Brite Aluminum, L.H.)
1	End Trim, Vent (Right Side)
2	End Cap (White Model, L.H.)
2	End Cap (White Model, R.H.)
2	End Cap (LH, Black Model)
2	End Cap (RH, Black Model)
3	Box Air
4	Vent Tube
5	Support, Vent Tube
5	Screw,
6	Support Plate
7	Snap Bushing
8	WPL 3186981
9	Side Panel, R.H.
9	Side Panel, L.H.
10	WP488729 Whirlpool Refrigerator Door Screw
10	Panel, Top
10	Screw, 10A x 1/2 (2) (Black)
11	End Cap (Washer)
12	Trim, Outside (White Model)
12	Trim, Outside (Black Model)
13	Brace, M/W Back
14	Rail, Chassis
15	Baffle, M/W Back
16	Block, Foam
17	Switch, Rocker (White)
17	Switch, Rocker
19	Bushing, Snap
20	Trim, Oven Vent
21	Trim, Top (White Model)
21	Trim, Top
22	Door, Vent (White)
22	Door, Vent
23	Screw, 10-32 x 1/2
23	WP965173 Whirlpool Dishwasher Screw
23	Trim, Bottom
24	Panel, Support
25	Seal, Foam
26	Seal, Foam
27	Rail, Microwave
28	WP90767 Whirlpool Screw
28	Seal, Foam
29	WPL 3147590
29	Vent, Lower Trim (Screw (4))
