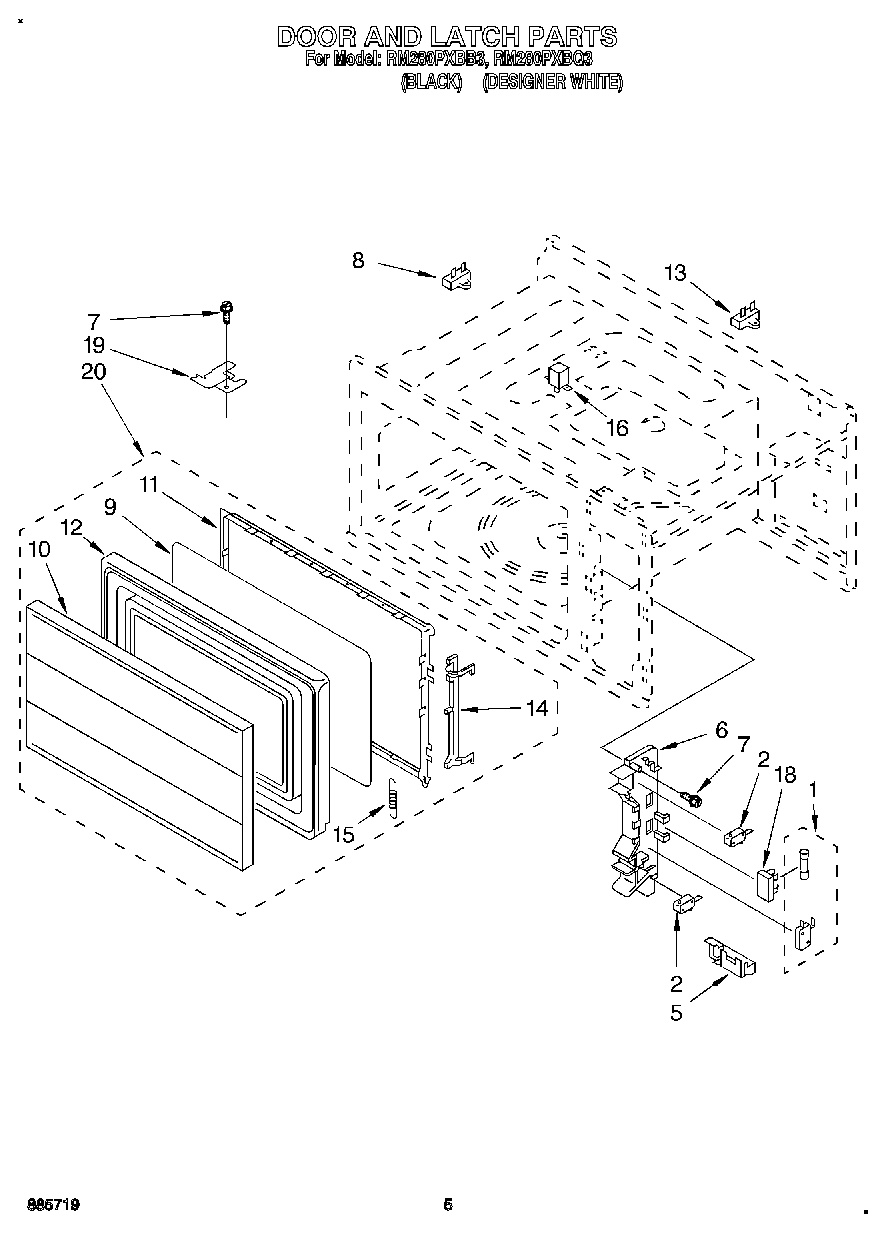

RM280PXBB3 05 – DOOR AND LATCH

Products

Position	Product
1	Switch and Fuse Assy.
2	4392027 Whirlpool Microwave Primary Switch
5	Latch Lever
6	Latch Hook
7	SCREW
8	Screw
8	Fuse, Temperature
9	Seal, Door (Not a Serviceable Part)
10	Screen, Door (White)
10	Screen, Door (Black)
11	Choke, Cover
11	Choke Cover (White Model)
12	Frame, Door (Not Serviceable)
13	Fuse, Temp
14	Latch, Door (White Model)
14	Latch, Door
15	Spring, Latch
16	Connector
16	Screw
18	Holder, Fuse
19	Hinge, Upper
20	Door, Complete (White)
20	Door, Complete (Black)
