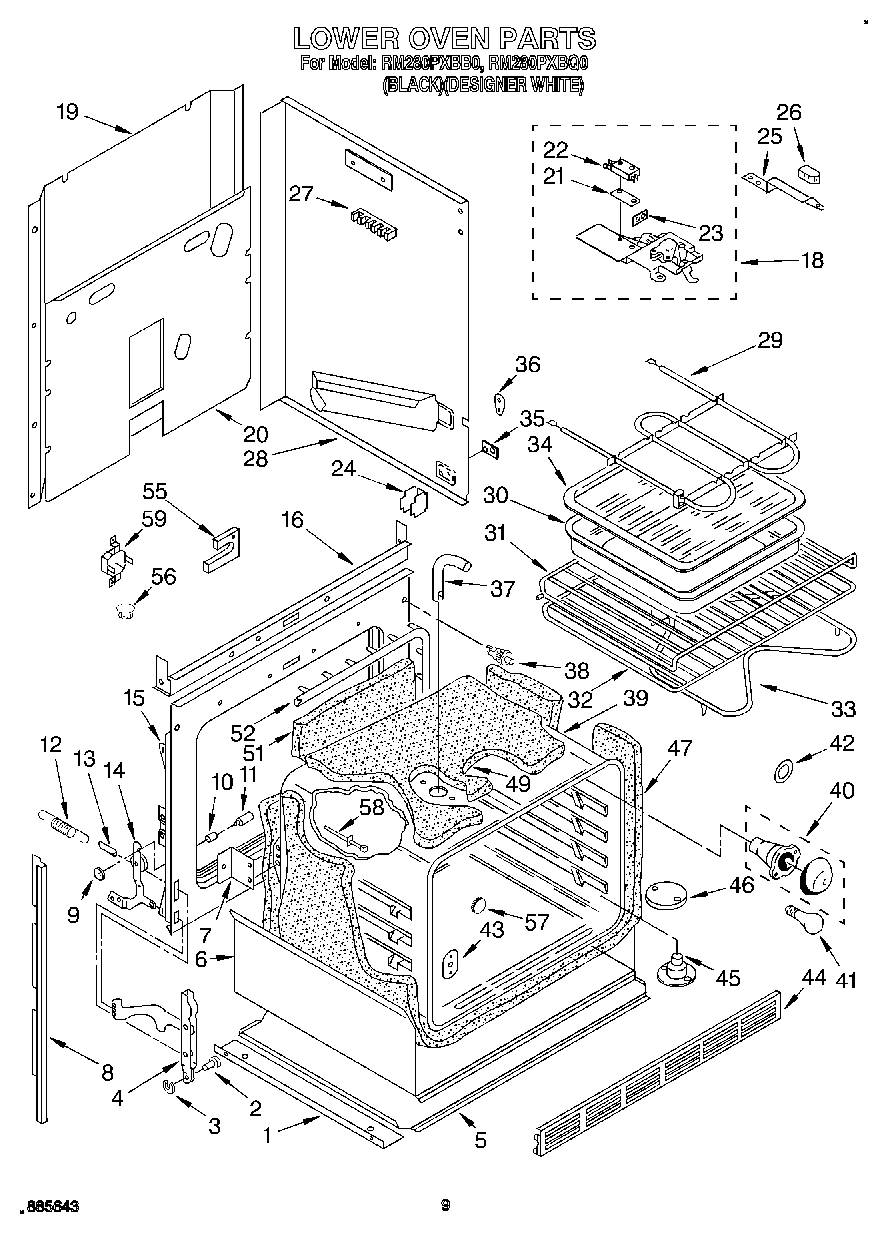

RM280PXBQ0 07 – LOWER OVEN

Products

Position	Product
1	Angle, Support (2)
2	WP307986 Whirlpool Hinge Pin
3	Retainer Ring (2)
4	Channel Arm (2)
5	Cover, Bottom
6	Insulation Tray
7	SCREW
7	Bracket, Oven Mounting (2)
8	Side Trim (Black Model, R.H.)
8	Side Trim (White Model, R.H.)
8	Side Trim (Black Model, L.H.)
8	Side Trim (White Model, LH)
9	Pushnut (2)
10	Snubber, Door (2)
11	Pin, Hinge Ear (2)
12	WP308126 Whirlpool Door Spring
13	WP308125 Whirlpool Microwave Range/Cooktop Anchor
14	Hinge, Ear (Right Side)
14	Hinge, Ear (Left Side)
15	Frame, Front
16	Baffle, Top Insulation
18	Latch Assembly
19	Cover, Rear
20	Panel, Back
21	Insulator, Switch
22	Safety Switch
22	Screw
23	Shield, Latch
23	Screw
24	Support, Side Wrapper (4)
25	Latch, Handle
25	Screw
26	Knob, Latch Handle
26	Screw
27	Screw (10-12 x .875)
27	WP8203546 Whirlpool Terminal Block
27	WP112432 Whirlpool Nut Assembly
27	WPL 3147001
28	Side Wrapper L.H.
28	Side Wrapper R.H.
29	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
31	Rack, Offset
32	Rack, Straight
33	ELMNT-BAKE
34	4396923 Whirlpool Broil Pan Set Gray Porcelain
35	WP308544 Whirlpool Screw
35	Plate, Side Panel (2)
36	WPL 3183005
36	Screw (2)
37	Tube, Vent
38	Switch, Door
39	Screw (3)
39	Oven 30“
40	W11594027 Whirlpool Range Oven Light Socket
41	RANGE ONLY 40W 120V APPL BULB
42	WP3184533 Whirlpool Range Light Lens Gasket
43	Plate, Cover
44	Grill, Bottom
44	WP488627 Whirlpool Refrigerator Screw
44	Grill, Bottom (Screw (3))
44	Bottom Grill (White)
45	Eliminator, Smoke
46	WPL 310662
46	WP488729 Whirlpool Refrigerator Door Screw
47	WPL 310433
49	WPL 3149328
51	WPL 310435
52	WPL 3185197
52	WP313808 Whirlpool Screw
55	WPL 309080
55	Shield, Air
56	Button, Plug
57	WPL 3185086
58	Screw (3)
58	Sensor, Heat
59	Thermostat
