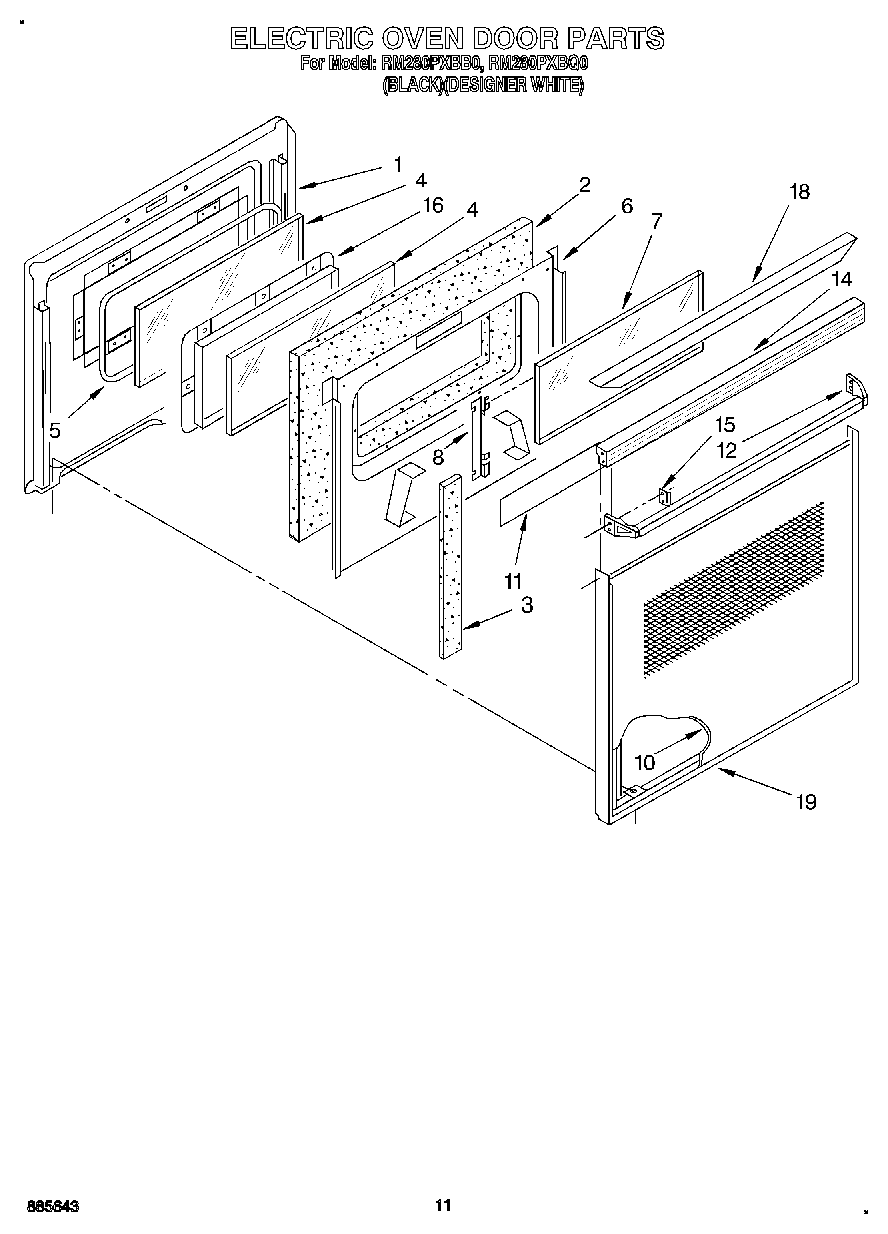

RM280PXBQ0 08 – ELECTRIC OVEN DOOR

Products

Position	Product
1	Liner, Door
2	Insulation, Door
3	Seal, Flange (2)
4	WP3169203 Whirlpool Door Glass
5	Seal, Door
6	Retainer,
6	Screw
7	Glass, Clear
8	Retainer, Glass (2)
8	Retainer, Glass (2)
10	Glass, Panel (Black Model)
10	Glass, Panel (White Model)
11	Foil, Door
12	Handle, Door (Black)
12	Handle, Door (Platinum)
14	Top, Door (White Model)
14	Top, Door (Black Model)
14	Handle, Door (Screw (4))
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
18	Cap, Top (White Model)
19	Frame, Panel (White Model)
19	Frame, Door
19	Frame, Panel (Black Model)
