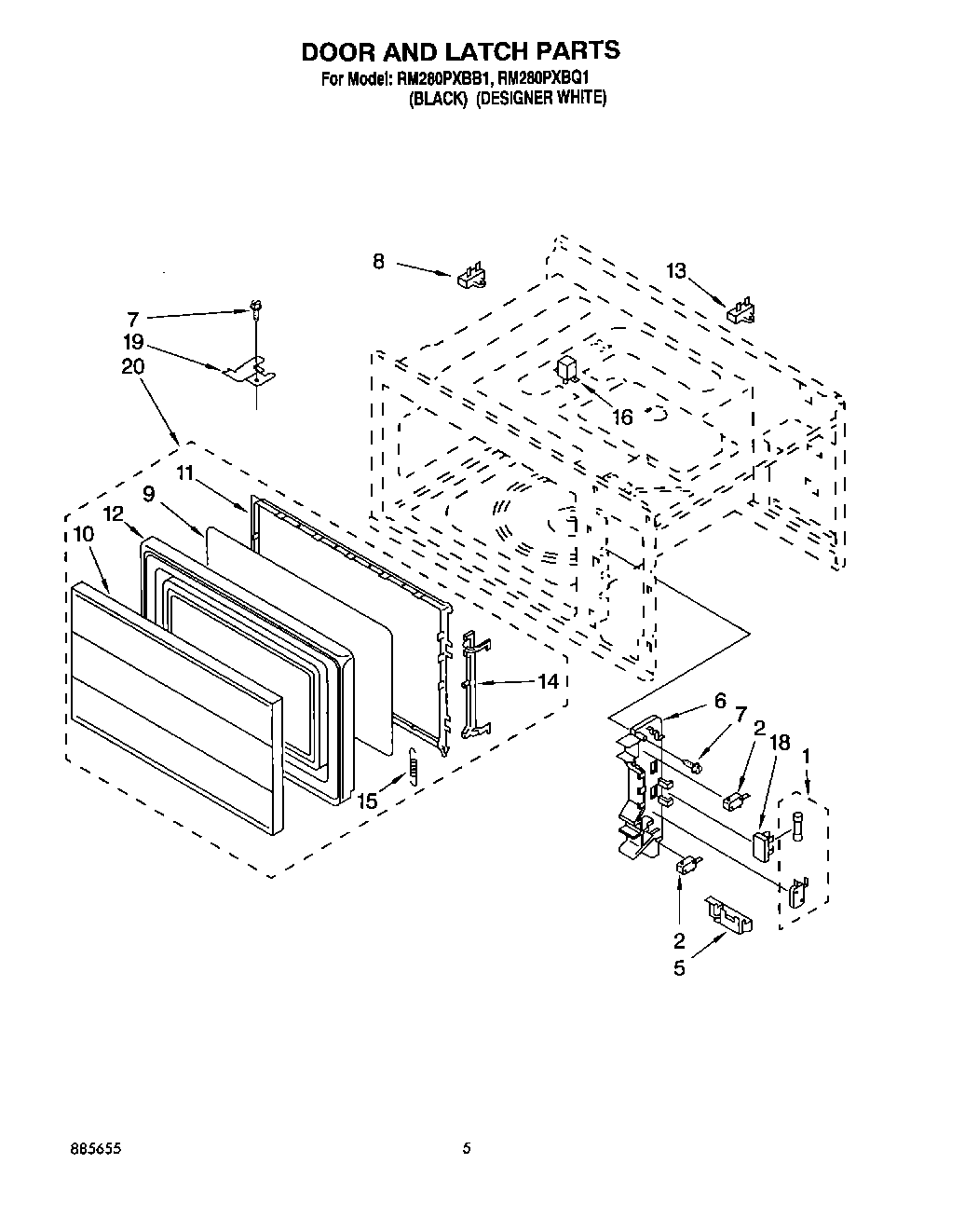

RM280PXBQ1 05 – DOOR AND LATCH

Products

PositionProduct
1Switch and Fuse Assy.
24392027 Whirlpool Microwave Primary Switch
5Latch Lever
6Latch Hook
7SCREW
8Fuse, Temperature
8Screw
9Seal, Door (Not a Serviceable Part)
10Screen, Door (White)
10Screen, Door (Black)
11Choke Cover (White Model)
11Choke, Cover
12Frame, Door (Not Serviceable)
13Fuse, Temp
14Latch, Door (White Model)
14Latch, Door
15Spring, Latch
16Connector
16Screw
18Screw
18Holder, Fuse
19Hinge, Upper
20Door, Complete (White)
20Door, Complete (Black)
