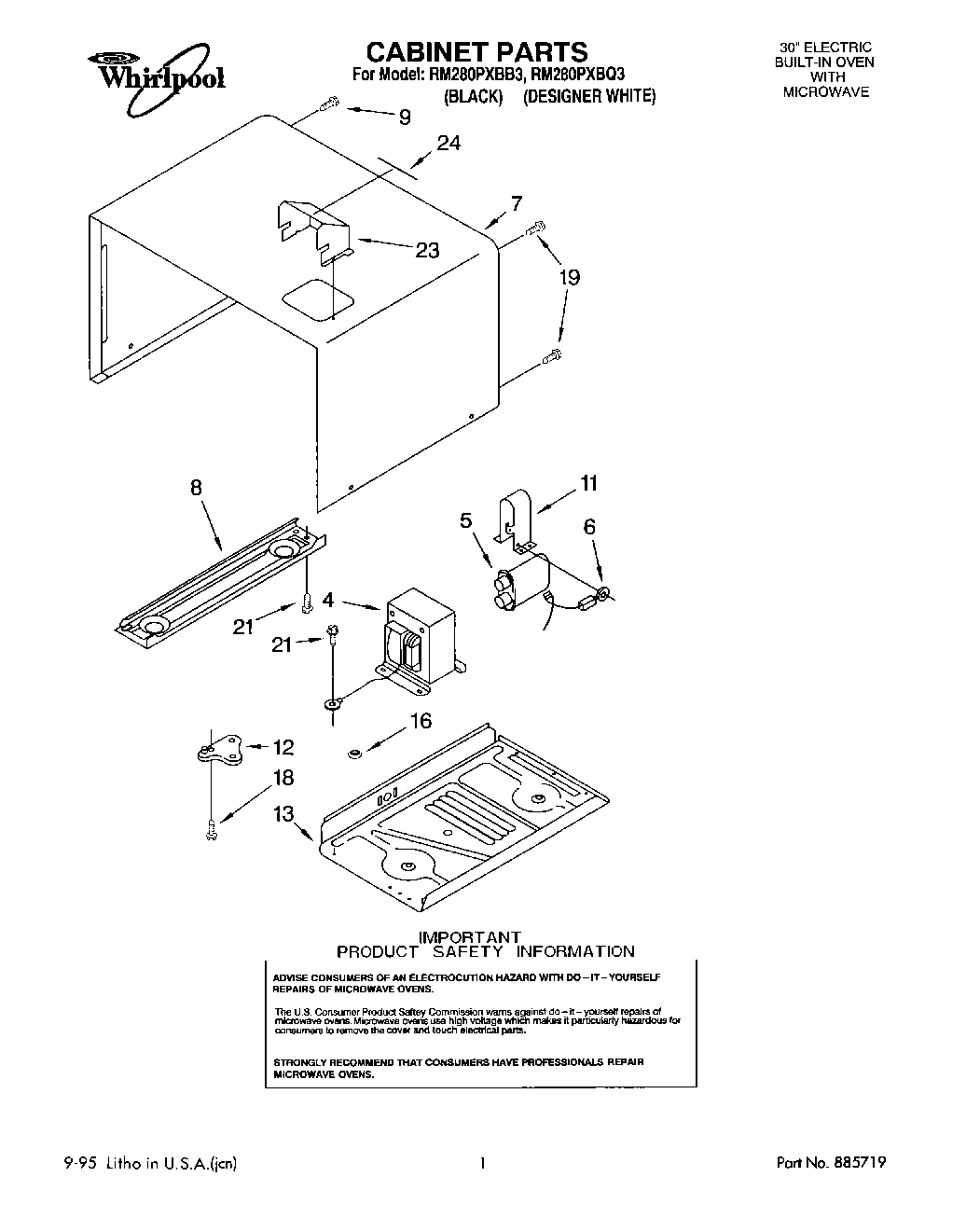

RM280PXBQ3 01 – CABINET

RM280PXBQ3 01 – CABINET

Written by

in

RM280PXBQ3 01 – CABINET

Products

Position	Product
4	Transformer
5	Screw
5	Capacitor
6	Rectifier
7	Outer Cabinet (White)
7	Outer Cabinet (Black)
8	Screw
8	Base Plate, Left Side
9	Screw
11	Screw
11	Bracket, Capacitor
12	Hinge, Lower
13	Base Plate, Right Side
16	Washer, Trans. Ground
18	Screw
19	Screw
21	Screw
23	Duct, Exhaust
24	Seal, Duct
24	Screw
