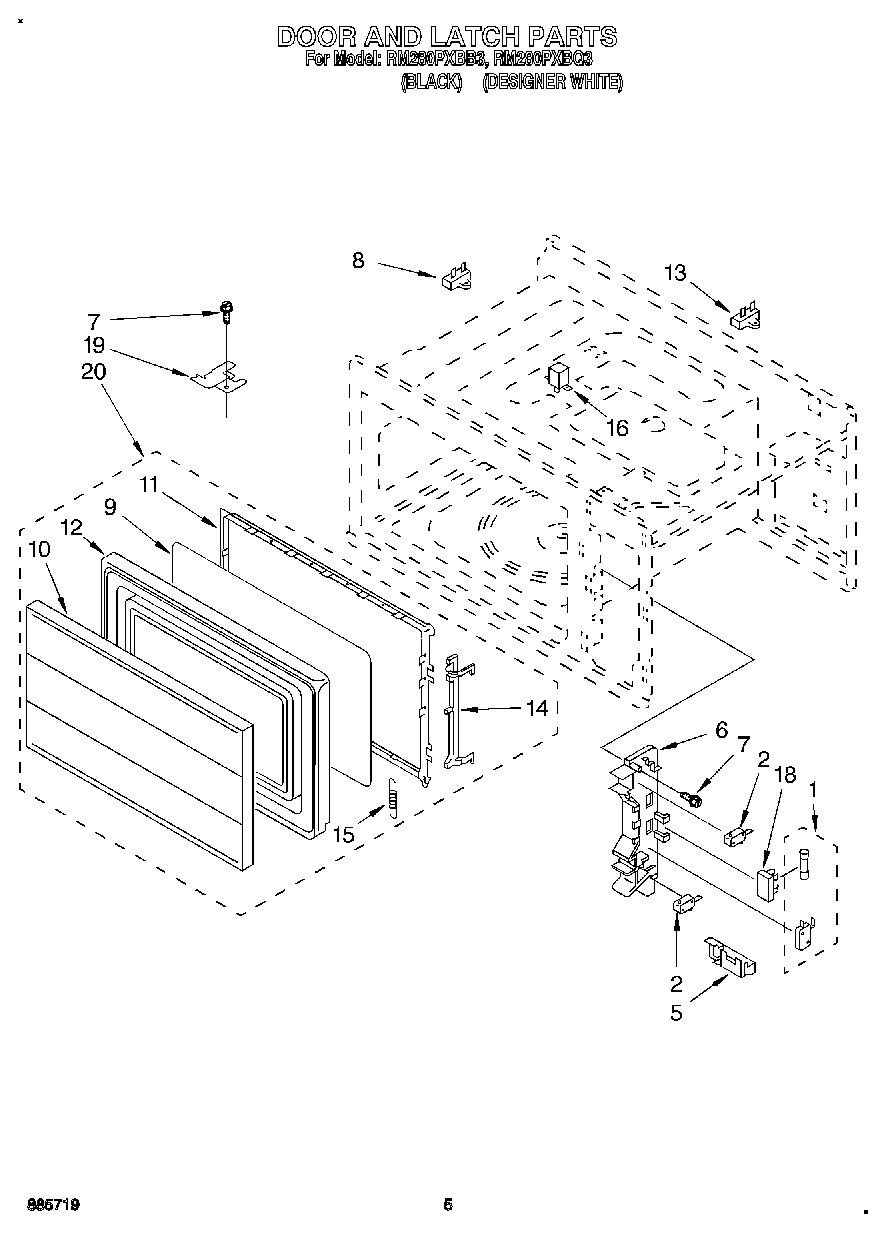

RM280PXBQ3 05 – DOOR AND LATCHadmin2025-04-26T12:08:34+00:00RM280PXBQ3 05 – DOOR AND LATCH
Products
| Position | Product |
|---|
| 1 | Switch and Fuse Assy. |
| 2 | 4392027 Whirlpool Microwave Primary Switch |
| 5 | Latch Lever |
| 6 | Latch Hook |
| 7 | SCREW |
| 8 | Fuse, Temperature |
| 8 | Screw |
| 9 | Seal, Door (Not a Serviceable Part) |
| 10 | Screen, Door (White) |
| 10 | Screen, Door (Black) |
| 11 | Choke, Cover |
| 11 | Choke Cover (White Model) |
| 12 | Frame, Door (Not Serviceable) |
| 13 | Fuse, Temp |
| 14 | Latch, Door |
| 14 | Latch, Door (White Model) |
| 15 | Spring, Latch |
| 16 | Connector |
| 16 | Screw |
| 18 | Holder, Fuse |
| 19 | Hinge, Upper |
| 20 | Door, Complete (Black) |
| 20 | Door, Complete (White) |
