RM280PXBQ3 08 – ELECTRIC OVEN

RM280PXBQ3 08 – ELECTRIC OVEN

Written by

in

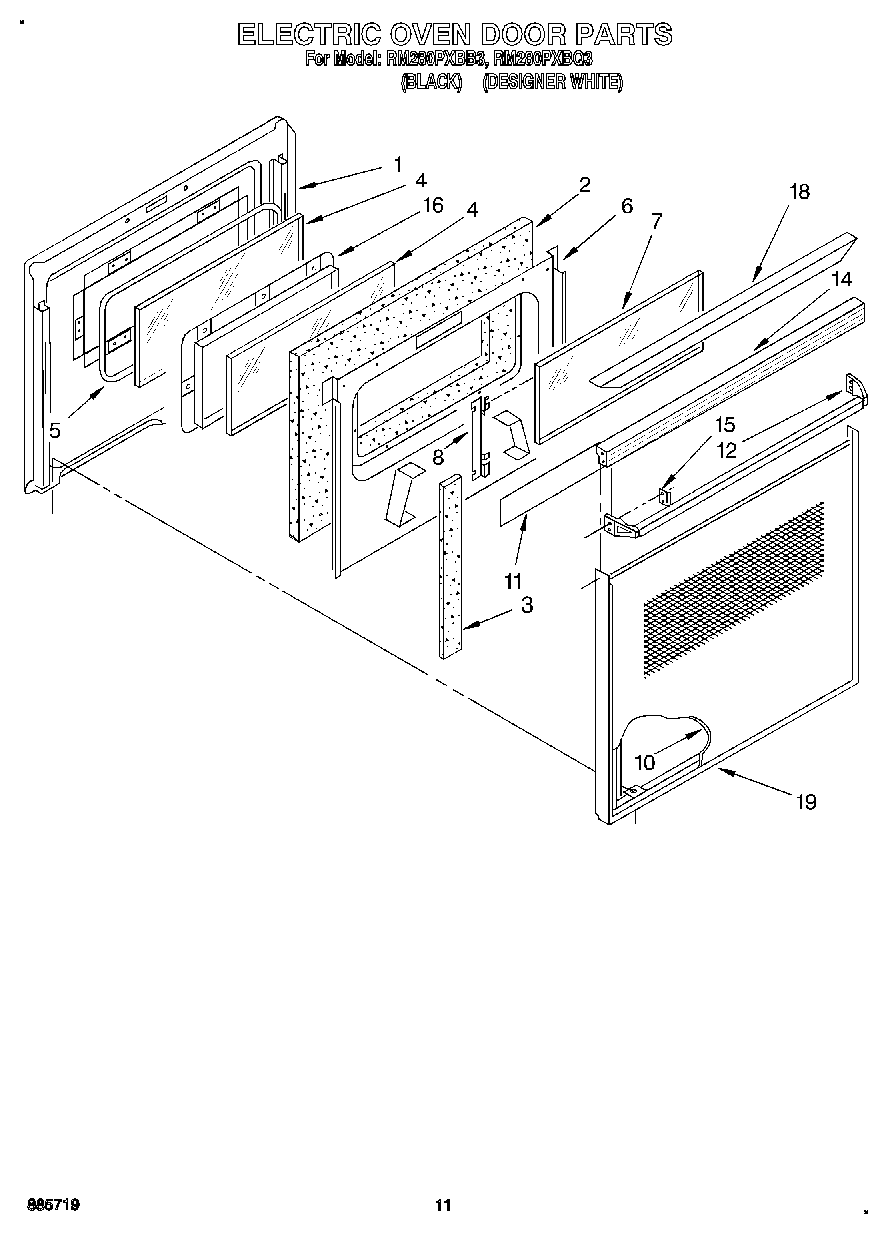

RM280PXBQ3 08 – ELECTRIC OVEN

Products

Position	Product
1	Liner, Door
2	Insulation, Door
3	Seal, Flange (2)
4	WP3169203 Whirlpool Door Glass
5	Seal, Door
6	Retainer,
6	Screw
7	Glass, Clear
8	Retainer, Glass (2)
10	Glass, Panel (White Model)
10	Glass, Panel (Black)
11	Foil, Door
12	Handle, Door (Black)
12	Handle, Door (Platinum)
14	Top, Door (White Model)
14	Top, Door (Black Model)
14	Handle, Door (Screw (4))
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
18	Cap, Top (White Model)
19	Frame, Panel (White Model)
19	Frame, Panel (Black Model)
