RM286PXV0 03 – DOOR

RM286PXV0 03 – DOOR

Written by

in

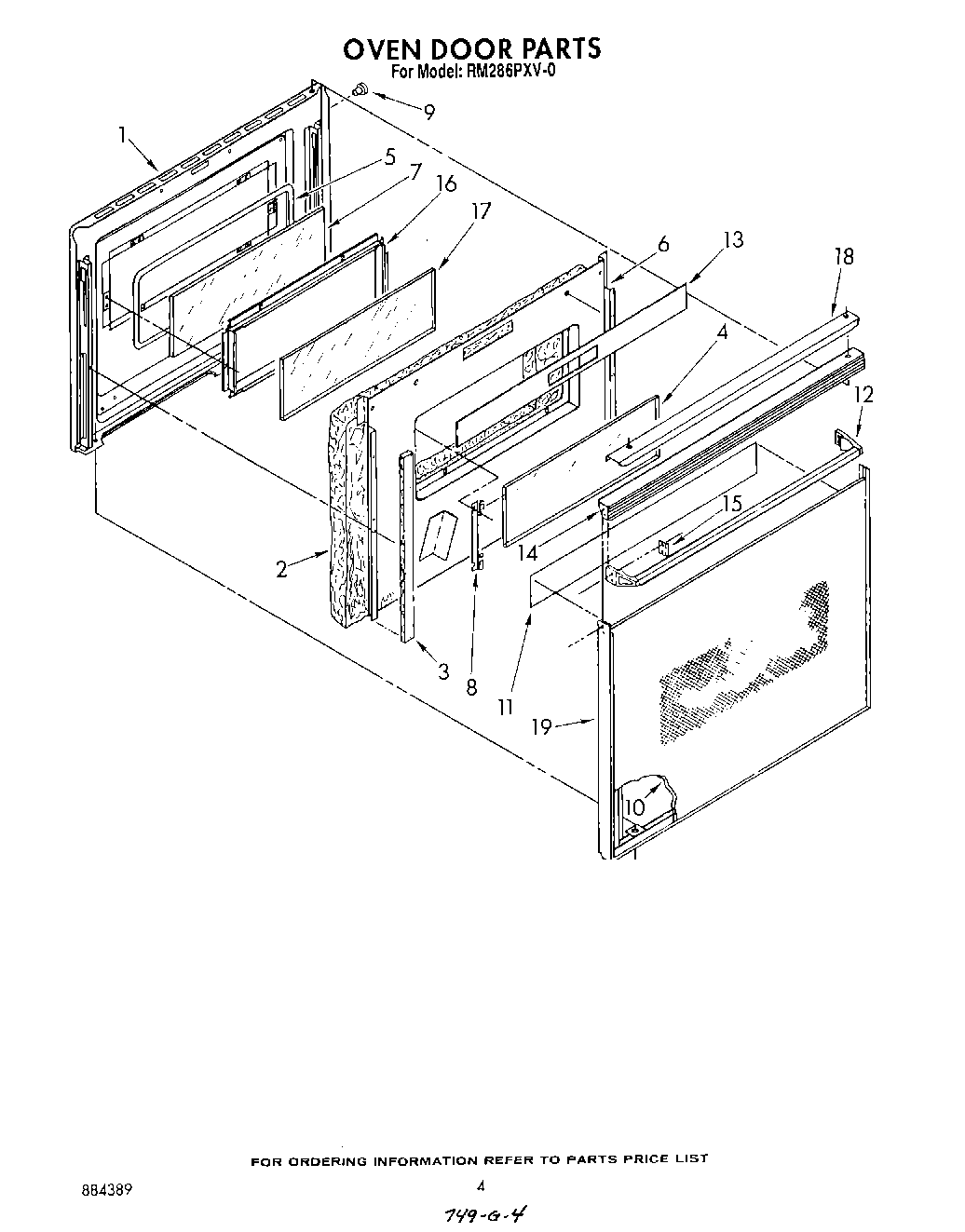

RM286PXV0 03 – DOOR

Products

Position	Product
1	Liner, Door
2	Insulation, Door
3	Seal, Flange (2)
4	Glass, Reflective
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (White)
11	Foil, Door
12	WP355515 Whirlpool Screw
12	Handle, Door (White)
13	Sheild, Door
13	Screw,
14	Screw, 10A x 1/2 (2) (Black)
14	Top, Door (White Model)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
18	Cap, Top
19	Frame, Door
