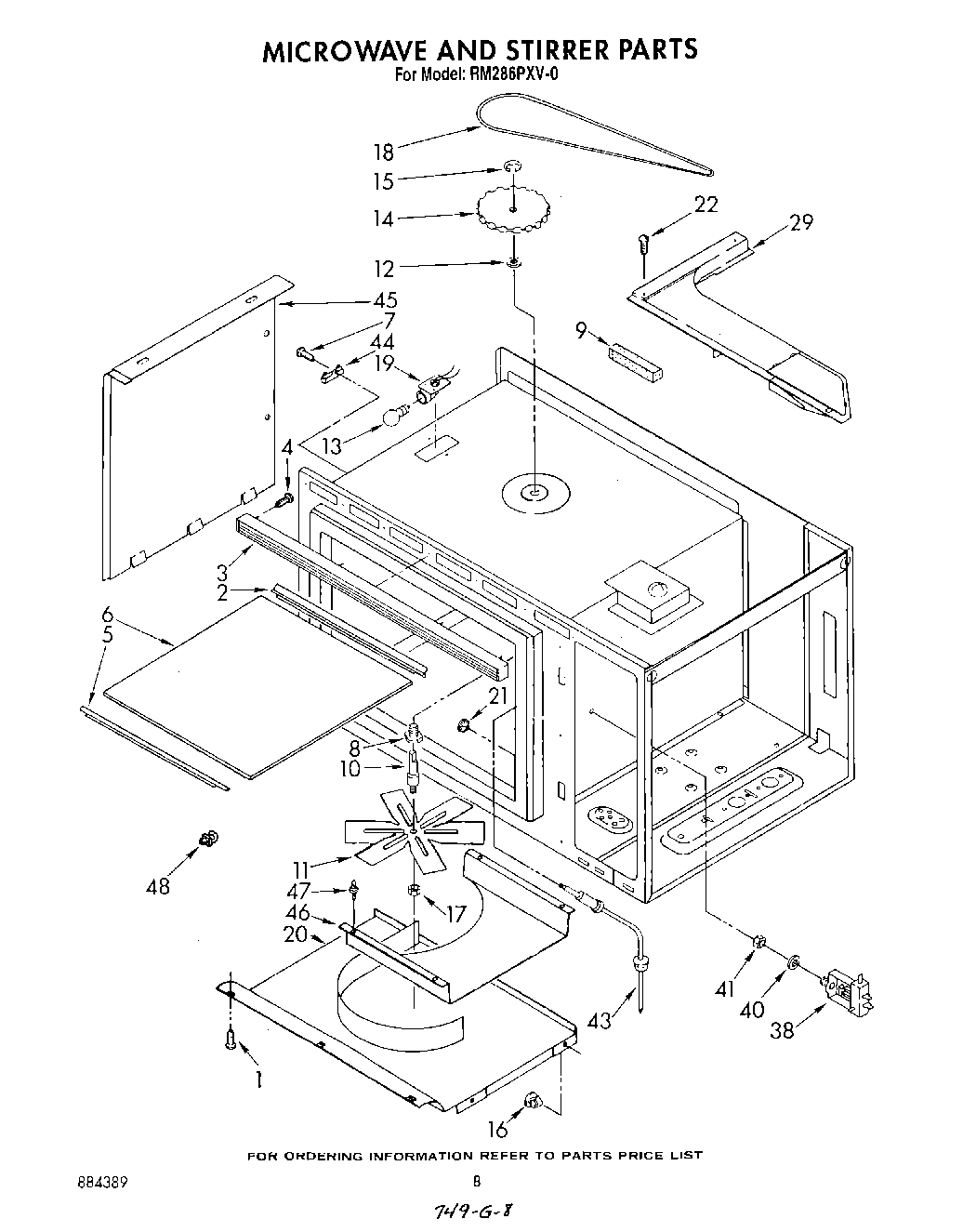

RM286PXV0 06 – MICROWAVE AND STIRRERadmin2025-04-26T12:08:17+00:00RM286PXV0 06 – MICROWAVE AND STIRRER
Products
| Position | Product |
|---|
| 2 | Trim, Shelf (Rear) |
| 3 | grille, air |
| 4 | Screw (3) |
| 5 | Trim, Shelf (Front) |
| 6 | Shelf, Microwave (Install with Silastic 482338) |
| 7 | screw |
| 8 | Bushing, Stirrer |
| 9 | Seal, Foam |
| 10 | Shaft, Stirrer |
| 11 | Stirrer Blade |
| 12 | Washer, Nylon |
| 13 | WP3395618 Whirlpool Light Bulb |
| 14 | Pulley, Stirrer Blade |
| 15 | ``E`` Ring |
| 16 | Fastener (4) |
| 17 | WP487939 Whirlpool Refrigerator Nut |
| 18 | WP313646 Whirlpool Microwave Drive Belt |
| 19 | Snap-In Socket |
| 20 | Silicone Rubber Gasket |
| 21 | Plug, Hole (4) |
| 22 | Fastener (2) |
| 29 | Baffle, Air Exhaust |
| 38 | Probe Jack |
| 40 | Washer, Internal Lock |
| 41 | Nut |
| 43 | (Alt.) |
| 44 | Fuse, Thermal |
| 45 | Cover, Side |
| 45 | screw, 8-32 x 1/2 (3) |
| 46 | Plate, Tuning |
| 47 | Support (4) |
| 48 | WP3149478 Whirlpool Microwave Support |
