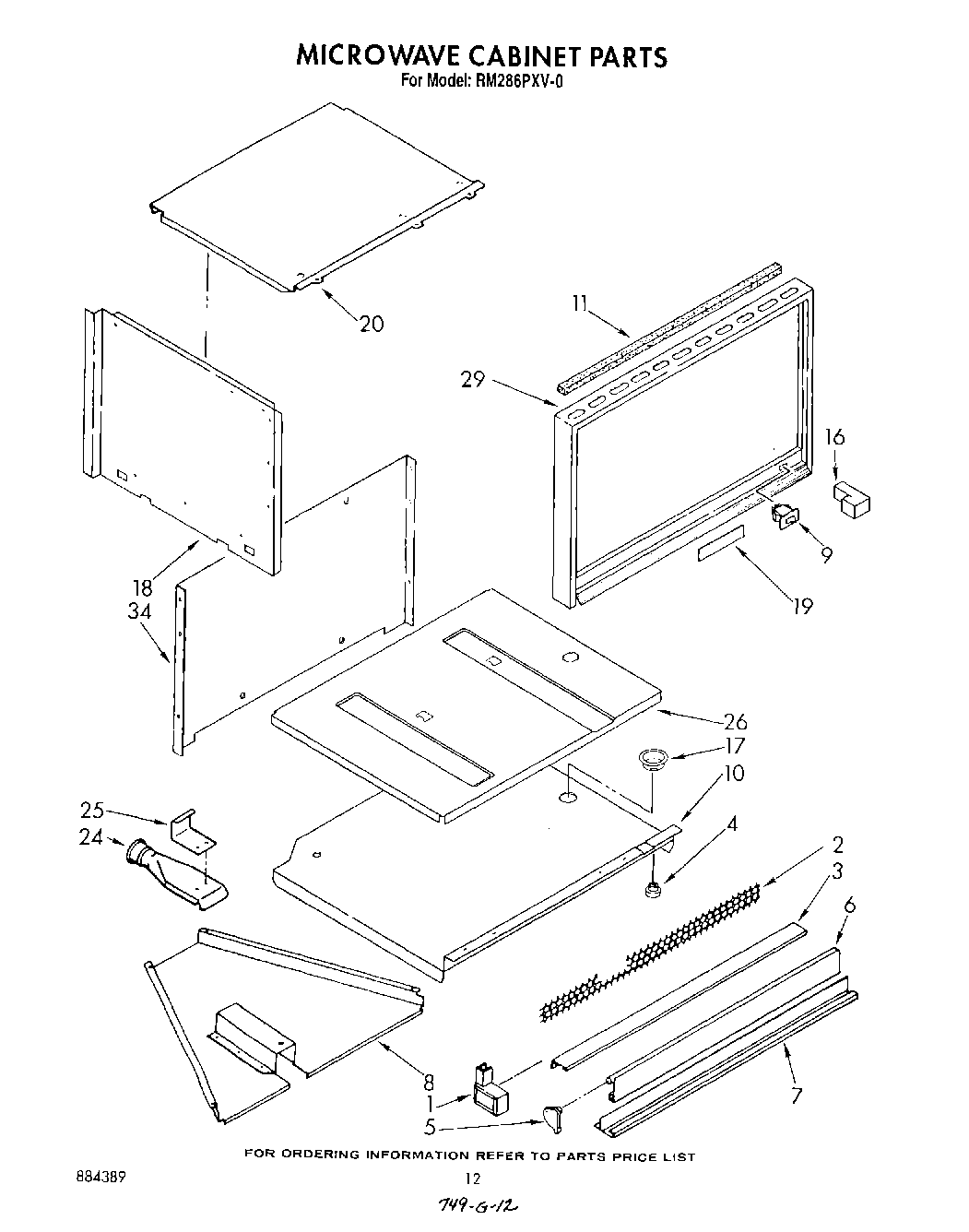

RM286PXV0 08 – CABINET , LITERATURE AND OPTIONAL

RM286PXV0 08 – CABINET , LITERATURE AND OPTIONAL

Written by

in

RM286PXV0 08 – CABINET , LITERATURE AND OPTIONAL

Products

Position	Product
	511873 Whirlpool Refrigerator Paint
1	End Cap, R.H.
1	End Cap, L.H.
2	Trim, Oven Vent
3	Screw, 10-32 x 1/2
3	Trim, Top (White & Almond Model)
4	Snap Bushing
5	Trim, Vent Door (Brite Aluminum, L.H.)
5	Trim, Vent Door (Brite Aluminum, R.H.)
6	Door, Vent (Brushed Chrome)
7	Screw
7	Trim, Bottom
8	Box Air
9	3149360 Whirlpool Light Switch
10	Support Plate
11	Seal, Foam Top (W
11	WPL 3147590
11	Seal, Foam Side (2) (White & Almond Model)
16	Seal, Foam (2)
17	Bushing, Snap
18	Side Panel, R.H.
18	Side Panel, L.H.
19	Adhesive
20	Panel, Top
24	Vent Tube
25	WP488729 Whirlpool Refrigerator Door Screw
25	Support, Vent Tube
25	Screw,
26	Panel, Support
29	Frame, Outer
34	Leveler (Thinner) (2oz.)
34	8212471 Whirlpool Oven Paint
34	WPL 786020
34	Grease
34	Paint, Touch-Up 1/2 Oz. (Coffee)
34	Primer (White)
34	Cover, Rear
34	Enamel, New Avocado (1 Qt. Uncut)
34	1
34	Wire (14 Ga. 200 c Brown)
34	WPL 72112
34	Platinum (Uncut)
34	Enamal, Toast (1 Qt. Uncut)
34	Paint, Spray (13 Oz.) (Platinum)
34	Toast
34	Golden Harvest (Uncut)
34	Golden Harvest
34	72113 Whirlpool Touch-Up Paint
34	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
34	Almond (Uncut)
34	WP72107 Whirlpool Touchup
34	799344 Whirlpool Refrigerator Paint
34	72017 Whirlpool Appliance Touch-Up Paint White
34	350956 Whirlpool Spray Assembly
34	WPL 799832
34	WPW10208653 Whirlpool Insulation
34	FOIL, ALUMINUM OVEN (18“ X 25 )
34	18 Ga. 80~c Rating (Red)
34	Wire (12 Ga. 150 c Black)
34	Wire (14 Ga. 150 c Yellow)
34	Wire (14 Ga. 150 c Orange)
34	Wire (14 Ga. 150 c Green)
34	Wire (14 Ga. 150 c Brown)
34	Wire (14 Ga. 150 c Blue)
34	242831 Whirlpool Oven Wire
34	Paint, Spray 13 Oz. (Avocado)
34	72109 Whirlpool Dacor Avocado Touch-Up Paint
34	285006 Whirlpool Spray
34	Wire, 25“ Roll (White 14 GA.)
34	Wire, 25` Roll (Red 14 Ga.)
34	Wire, 25` Roll (Black 14 Ga.)
34	350930 Whirlpool White Spray Paint
