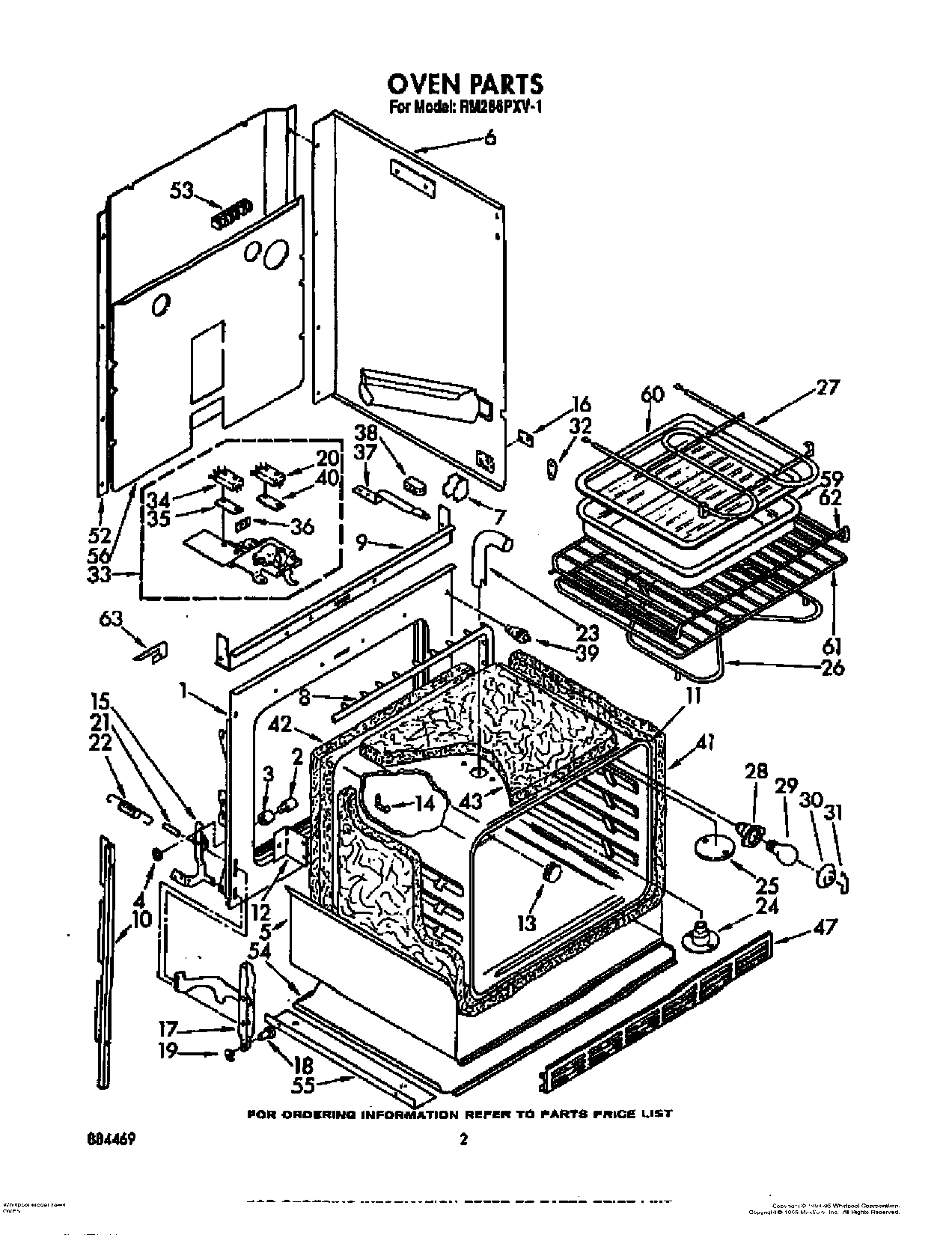

RM286PXV1 02 – OVEN

Products

Position	Product
	WPL LIT3149026
	WPL LIT884469
	WPL LIT313358
	Cook
	WPL LIT3147287
	WPL LIT312909
	WPL LIT312910
1	Frame, Front
2	Pin, Hinge Ear (2)
3	Snubber, Door (2)
4	Pushnut (2)
5	Insulation Tray
6	Side Wrapper (Left Side)
6	Side Wrapper (Right Side)
7	Support, Side Wrapper (4)
8	Seal, Door
8	WP313808 Whirlpool Screw
9	Baffle, Top Insulation
10	Side Trim (Left Side)
10	Side Trim (Right Side)
11	Oven 30“
12	Bracket, Oven Mounting (2)
12	SCREW
13	Plug Button
14	98005642 Whirlpool Clip
15	Hinge Ear, L.H.
15	Hinge Ear, R.H.
16	WP308544 Whirlpool Screw
16	Plate, Side Panel (2)
17	Channel Arm (2)
18	WP307986 Whirlpool Hinge Pin
19	Retainer Ring (2)
20	Switch, Lock
21	WP308125 Whirlpool Microwave Range/Cooktop Anchor
22	WP308126 Whirlpool Door Spring
23	Tube, Vent
24	WP488729 Whirlpool Refrigerator Door Screw
24	Eliminator, Smoke
25	WPL 310662
26	ELMNT-BAKE
27	WPL 312318
27	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
28	Socket, Oven Light
29	RANGE ONLY 40W 120V APPL BULB
30	Cover, Light
31	Retainer, Light
32	WPL 311982
33	Screw (3)
33	Latch Assembly
34	Safety Switch
34	Screw
35	Insulator, Switch
36	Shield, Latch
36	Screw
37	Screw
37	Latch, Handle
38	Knob, Latch Handle
38	Screw, 80 x 5/16
39	Switch, Door
40	WPL 3147864
47	Bottom Grill (White)
47	WP488627 Whirlpool Refrigerator Screw
52	Panel, Back (2)
53	WP8203546 Whirlpool Terminal Block
53	WP112432 Whirlpool Nut Assembly
53	WPL 3147001
53	Screw (10-12 x .875)
54	WPL 310458
55	Angle, Support (2)
56	Cover, Rear
60	4396923 Whirlpool Broil Pan Set Gray Porcelain
61	WPL 308173
62	WPL 308172
63	WPL 3149328
63	Shield, Air
63	WPL 310434
63	WPL 310433
63	WPL 309080
