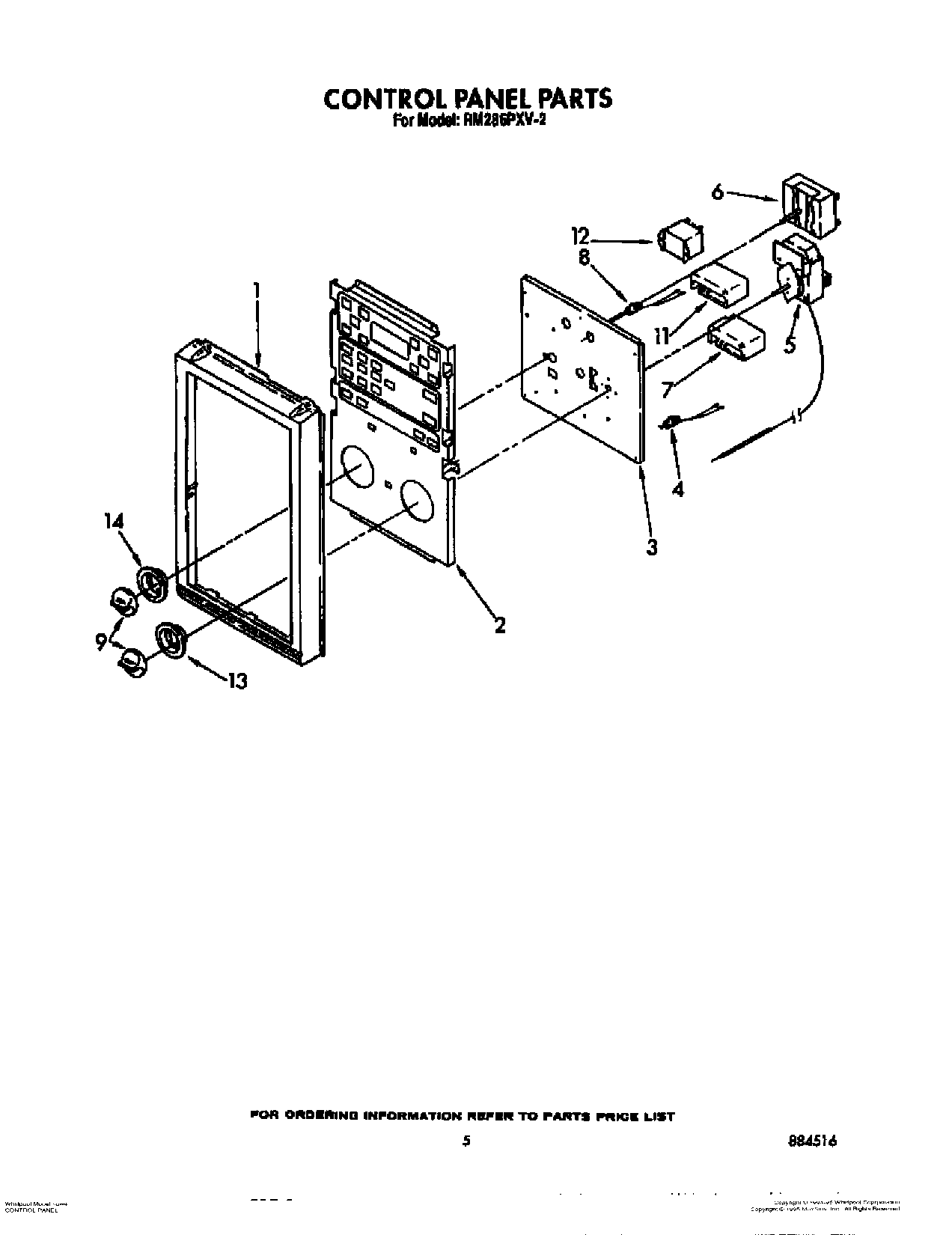

RM286PXV2 04 – CONTROL PANELadmin2025-04-26T12:08:50+00:00RM286PXV2 04 – CONTROL PANEL
Products
| Position | Product |
|---|
| 1 | Frame, Control |
| 2 | Module, Control |
| 3 | Bracket, Control (Mounting) |
| 3 | Screw |
| 4 | Indicator, Light |
| 5 | WP313808 Whirlpool Screw |
| 5 | Thermostat |
| 6 | Switch, Selector |
| 6 | Screw, 8-32 x 3/16 (2) |
| 7 | Switch, Bake |
| 8 | Light, Indicator (2) |
| 9 | Knob, Control (2) |
| 11 | Sw |
| 11 | WPL 314215 |
| 12 | Screw |
| 12 | Relay, Vent (24V, Clear) |
| 13 | Escutcheon, Thermostat |
| 14 | WP311068 Whirlpool Dial Knob Black |
| 14 | Screw, |
