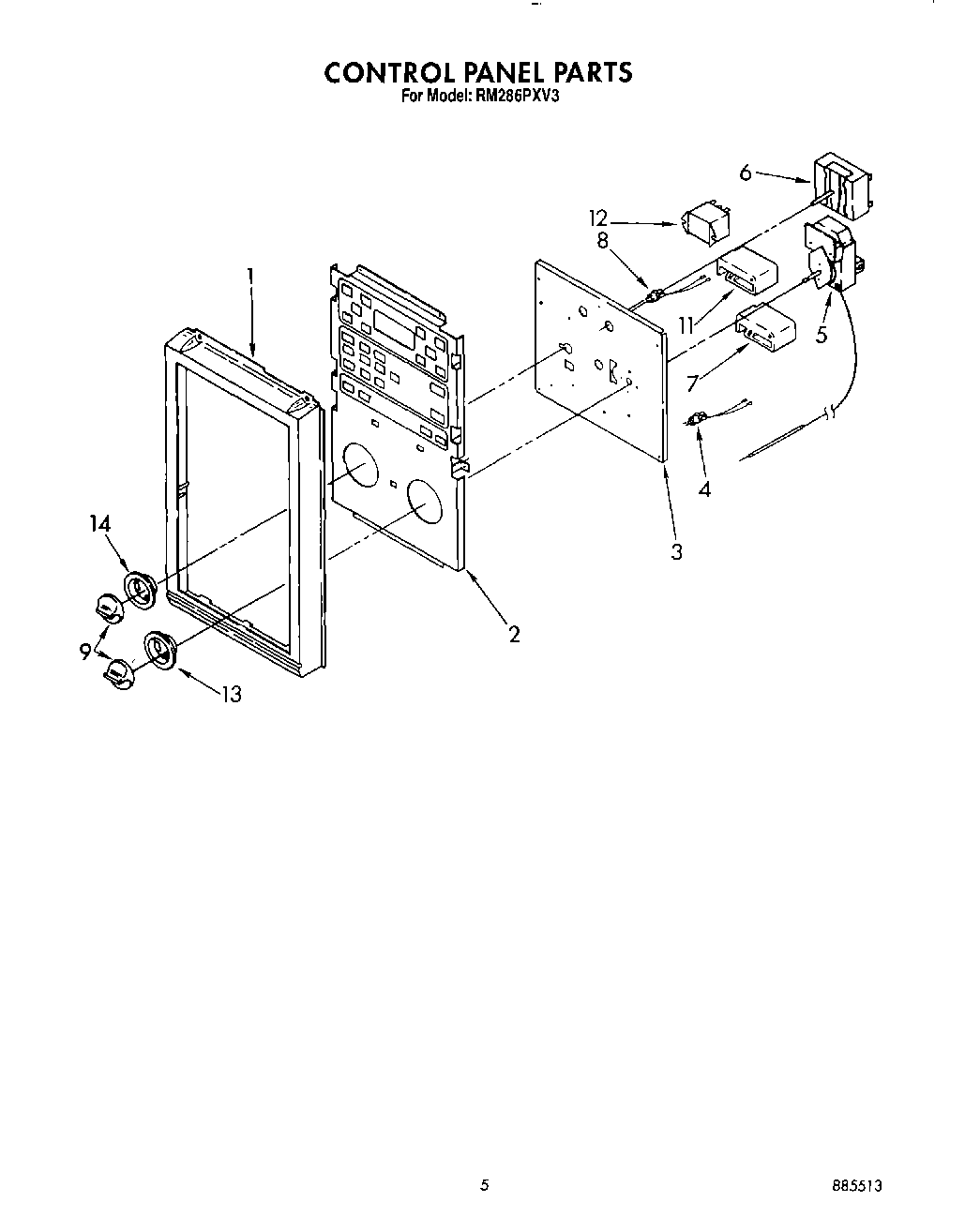

RM286PXV3 04 – CONTROL PANEL

Products

Position	Product
1	Frame, Control
2	Module, Control
3	Bracket, Control (Mounting)
3	Screw
4	Indicator, Light
5	WP313808 Whirlpool Screw
5	Thermostat
6	Switch, Selector
6	Screw, 8-32 x 3/16 (2)
7	Switch, Bake
8	Light, Indicator (2)
9	Knob, Control (2)
11	Sw
11	WPL 314215
12	Screw
12	Relay, Vent (24V, Clear)
13	Escutcheon, Thermostat
14	WP311068 Whirlpool Dial Knob Black
14	Screw,
