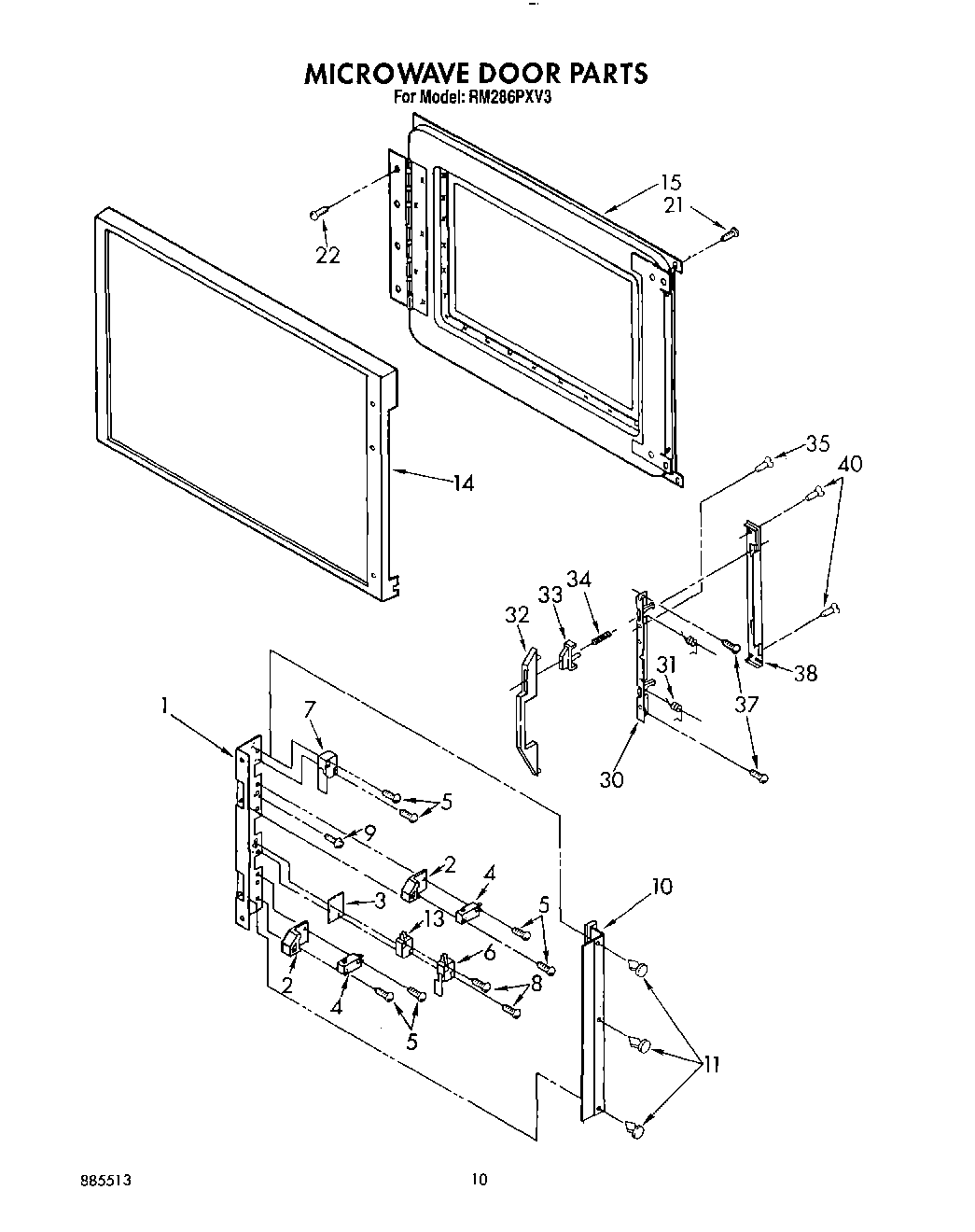

RM286PXV3 07 – MICROWAVE DOOR

Written by

Products

Position	Product
1	Bracket, Catch
1	screw
2	Catch (2)
3	Insulator
4	814037 Whirlpool Microwave Switch
5	WPL 312717
6	Switch, Light/ Monitor
7	Switch, Miniature
8	Screw, 4-40 x 10 (2)
9	WPL 309080
10	shield
11	Fastener (4)
13	Switch
14	Frame, Door
15	Inner Door Asm. (White Unit)
22	WPW10068250 Whirlpool Dishwasher Screw
30	Latch Assembly
31	Spring, Torsion (2)
32	Handle, Door (White)
33	Button, Door Handle (White)
34	Rear Top Burner-Lt. or Rt. (Inc`s 64 & 65)
35	303776 Whirlpool Dishwasher Screw
37	Screw (2)
38	End Cap (White)
40	Screw, 8-22 (5)
