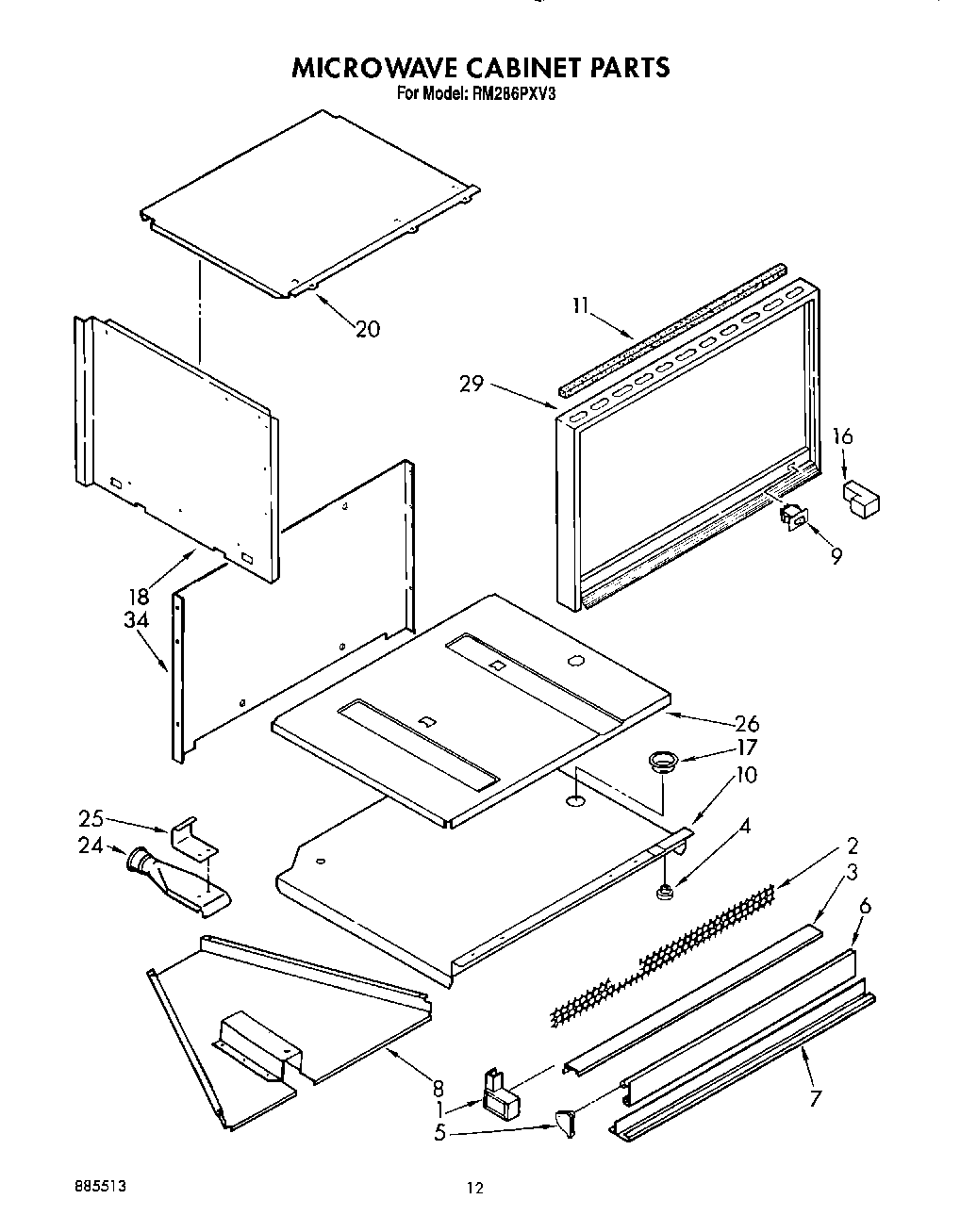

RM286PXV3 08 – MICROWAVE CABINET, OPTIONAL

Products

Position	Product
1	End Cap, R.H.
1	End Cap, L.H.
2	Trim, Oven Vent
3	Trim, Top (White & Almond Model)
3	Screw, 10-32 x 1/2
4	Snap Bushing
5	Trim, Vent Door (Brite Aluminum, R.H.)
5	Trim, Vent Door (Brite Aluminum, L.H.)
6	Door, Vent (Brushed Chrome)
7	Trim, Bottom
7	Screw
8	Box Air
9	3149360 Whirlpool Light Switch
10	Support Plate
11	WPL 3147596
11	Seal, Foam Side (2) (White & Almond Model)
11	Seal, Foam Top (W
16	Seal, Foam (2)
17	Bushing, Snap
18	Side Panel, L.H.
18	Side Panel, R.H.
20	Panel, Top
24	Vent Tube
25	WP488729 Whirlpool Refrigerator Door Screw
25	Support, Vent Tube
25	Screw,
26	Panel, Support
29	Frame, Outer
34	WPL 591014
34	WPL 350806
34	WPL 832985
34	WPL 786020
34	WPL 786032
34	261900 Whirlpool Microwave Spray
34	Cover, Rear
34	72113 Whirlpool Touch-Up Paint
34	1
34	Wire (14 Ga. 200 c Brown)
34	18 Ga. 80~c Rating (Red)
34	WPL 72112
34	Platinum (Uncut)
34	Enamal, Toast (1 Qt. Uncut)
34	Paint, Spray (13 Oz.) (Platinum)
34	Toast
34	Golden Harvest (Uncut)
34	Golden Harvest
34	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
34	Almond (Uncut)
34	Leveler (Thinner)
34	WP72107 Whirlpool Touchup
34	799344 Whirlpool Refrigerator Paint
34	72017 Whirlpool Appliance Touch-Up Paint White
34	350956 Whirlpool Spray Assembly
34	350942 Whirlpool Spray Paint
34	WPL 799832
34	Wire, 25` Roll (Blue 16 Ga.)
34	Wire (12 Ga. 150 c Black)
34	Wire (14 Ga. 150 c Yellow)
34	Wire (14 Ga. 150 c Orange)
34	Wire (14 Ga. 150 c Green)
34	Wire (14 Ga. 150 c Brown)
34	Wire (14 Ga. 150 c Blue)
34	WP261869 Whirlpool Microwave Paint
34	242831 Whirlpool Oven Wire
34	WP482338 Whirlpool Refrigerator Adhesive
34	72032 Whirlpool Touch Up Paint Black
34	285006 Whirlpool Spray
34	Wire, 25“ Roll (White 14 GA.)
34	Wire, 25` Roll (Red 14 Ga.)
34	Wire, 25` Roll (Black 14 Ga.)
34	350930 Whirlpool White Spray Paint
