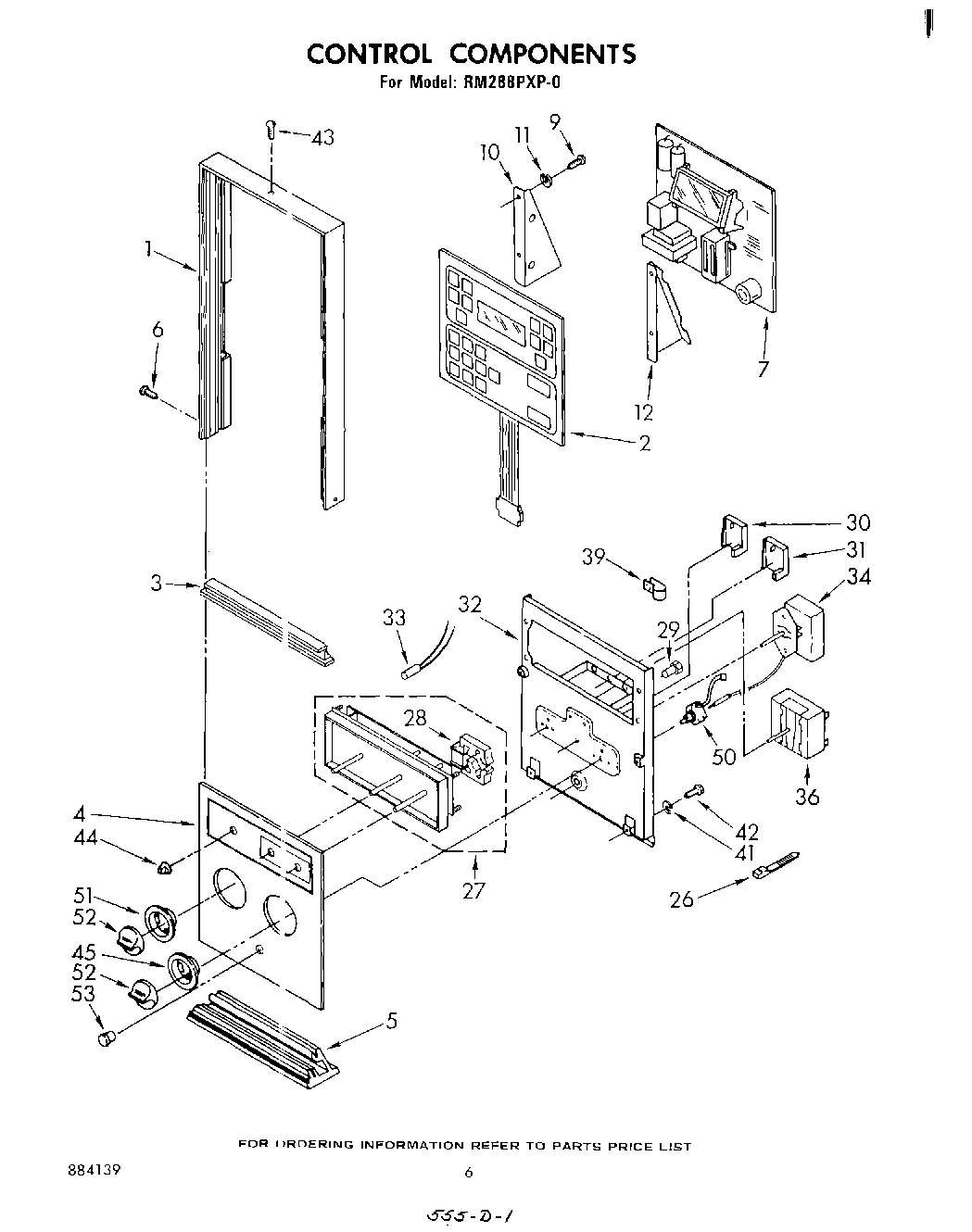

| 1 | Frame, Control Panel |
| 2 | Membrane, Switch |
| 3 | Splice Panel |
| 4 | Control Panel, Glass |
| 4 | Support-Top Burner |
| 5 | Bottom Cap, Control Panel |
| 6 | NAMEPLATE |
| 7 | Board, Power Control |
| 10 | Bracket, P.C. Board |
| 12 | Bracket, P.C. Board |
| 26 | WPW10339879 Whirlpool Wire Tie |
| 27 | Timer |
| 28 | Motor, Timer |
| 29 | Nut, Aluminum (4) |
| 30 | Switch, Broil |
| 31 | WPL 311585 |
| 32 | Bracket, Control Mounting |
| 32 | SCREW |
| 33 | Indicator Light 250V (3) |
| 34 | screw, 6-32 x 1/4 (2) |
| 34 | Thermostat, Oven (Lower) |
| 36 | Selector Switch |
| 36 | Screw, 8-32 x 3/16 (2) |
| 39 | WP308605 Whirlpool Refrigerator Clamp |
| 39 | WP965173 Whirlpool Dishwasher Screw |
| 39 | screw |
| 41 | Lockwasher |
| 42 | WP313808 Whirlpool Screw |
| 43 | Screw |
| 44 | WP3169181 Whirlpool Knob |
| 44 | Spring (3) |
| 45 | Escutcheon, Thermostat |
| 50 | Support-Storage Drawer (Lt. or Rt.) |
| 51 | WP311068 Whirlpool Dial Knob Black |
| 51 | Screw, |
| 52 | WP3150371 Whirlpool Control Knob |
| 53 | Bezel Switch (1) |
