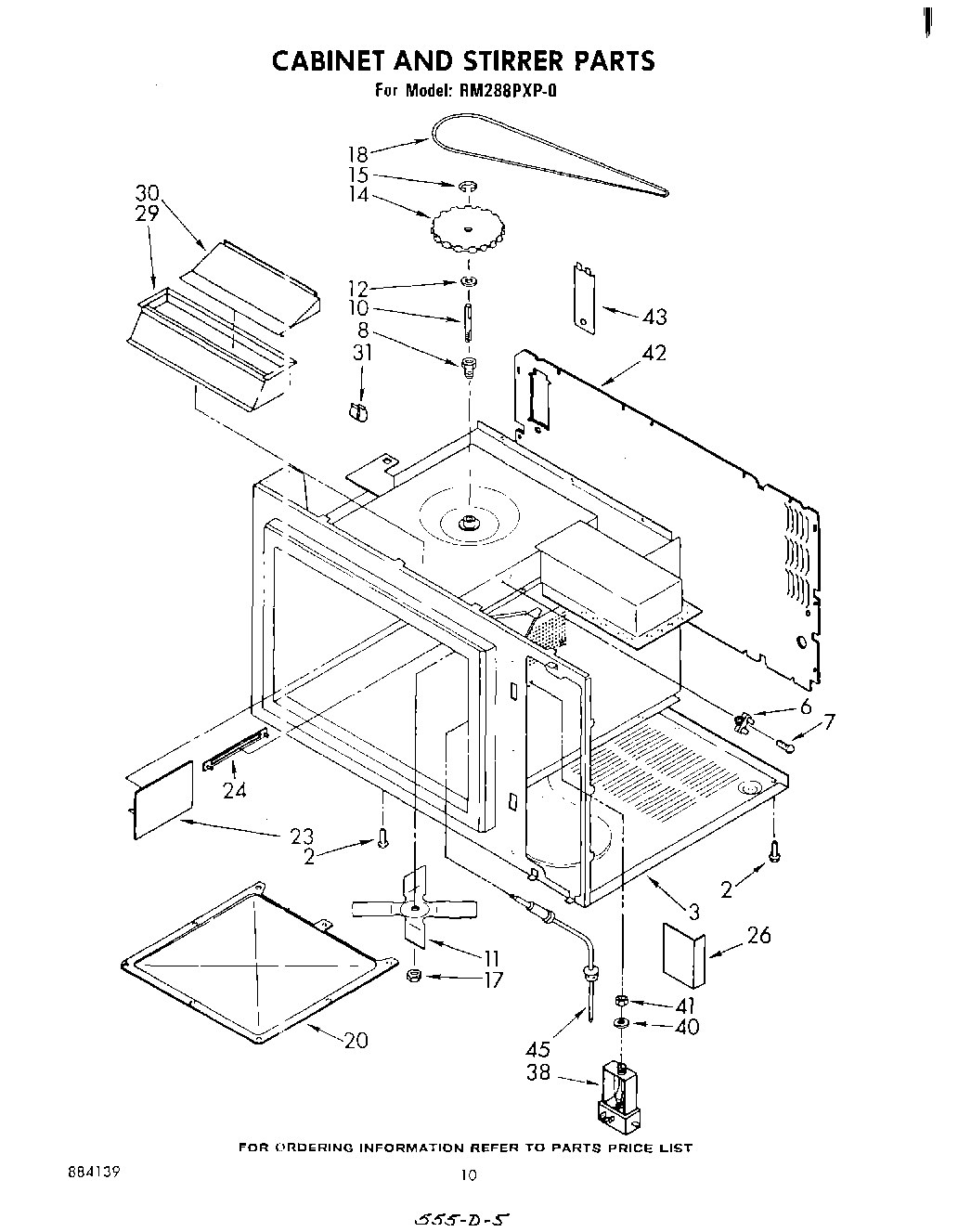

RM288PXP0 06 – CABINET AND STIRRER

Products

PositionProduct
2WP308685 Whirlpool Microwave Screw
3Base, Cabinet (Not Serviceable)
6Thermal Fuse (Includes Illus.7)
7screw
8Bushing, Stirrer
10Shaft, Stirrer
11Stirrer Blade
12Washer, Nylon
14Pulley, Stirrer Blade
15“E“ Ring
17WP487939 Whirlpool Refrigerator Nut
18Belt, Drive
20Stirrer Cover
23Shield, Exhaust Probe
24Cover, Rivet
26Shield, Exhaust
29Baffle, Air Exhaust
30Air Deflector
31Clip, Air Cover (3)
38Jack, Probe
40Washer, Internal Lock
41Nut
42Cover, Rear
43Cover, Light
43SCREW
45temperature probe (alternate)
45temperature probe (alternate)
45(Alt.)
