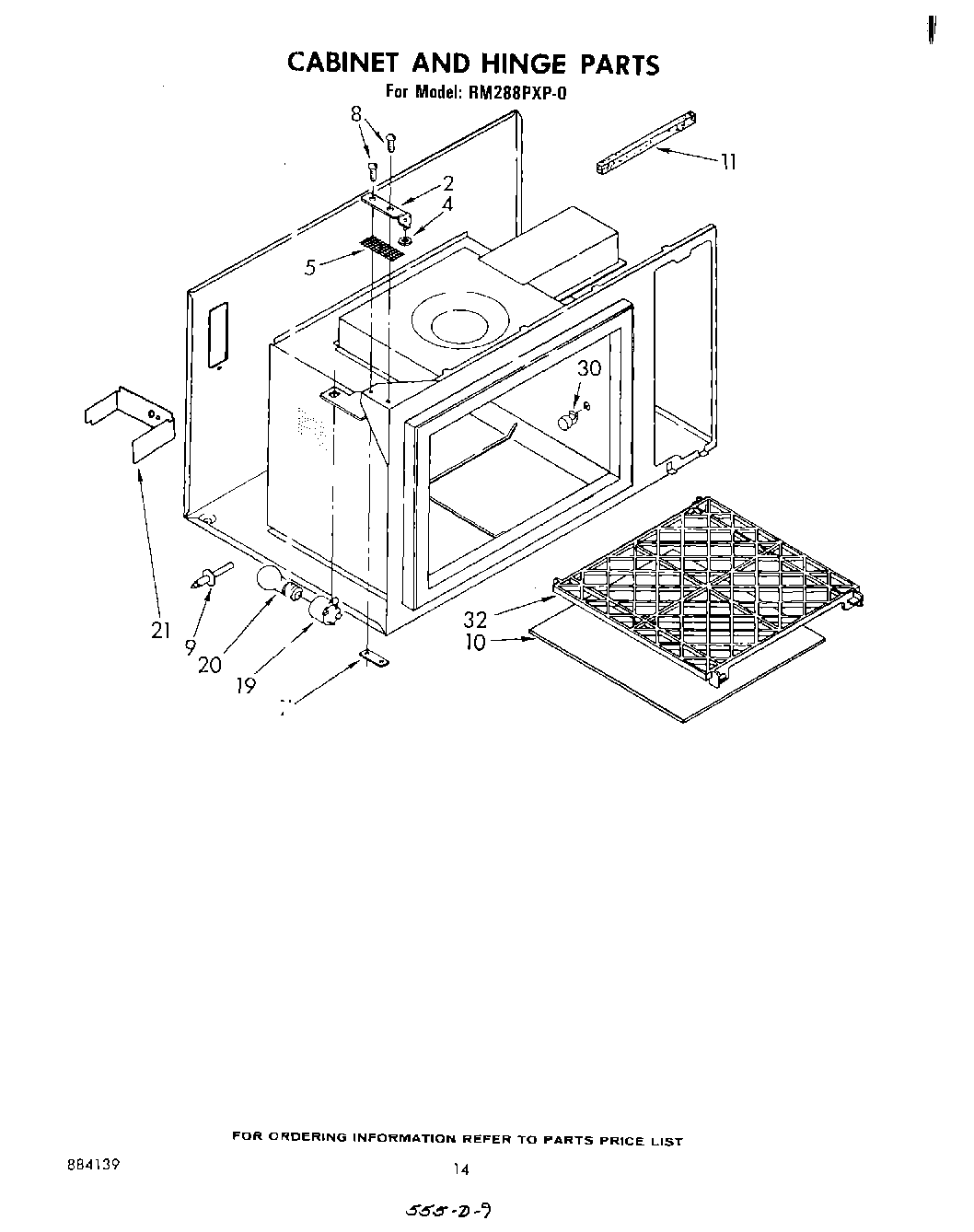

RM288PXP0 08 – CABINET AND HINGE

Products

Position	Product
2	Hinge Assembly (Top)
2	Hinge Assembly (Bottom)
4	WPL 312147
5	Hinge, Shim Locking (2)
7	Plate, Nut (2)
8	Screw, 12-24 x 3/4 (4)
9	Rivet (3)
10	Shelf, Microwave
10	Shelf, Microwave (Alt.)
10	Shelf, Microwave (Alt.) (Install W/Silastic No. 482338)
11	Seal, Foam
19	Socket, Snap-In
20	RANGE ONLY 40W 120V APPL BULB
21	screw
21	Shield, Lamp
30	Screw, 10A x 2
30	Support, Shelf (4)
32	rack, oven
