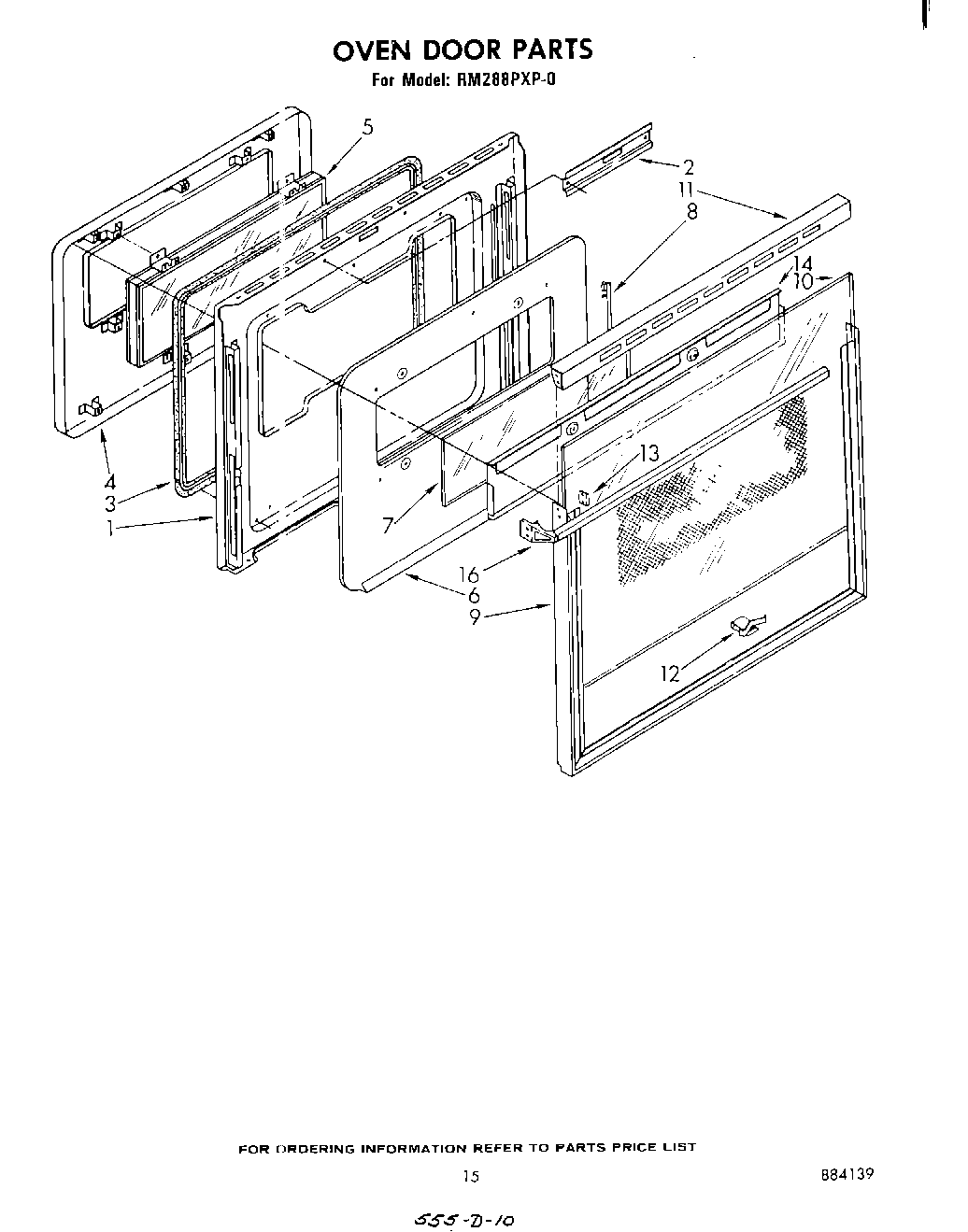

| 1 | Screw (3) |
| 1 | Liner, Door |
| 2 | Channel, Latch |
| 2 | Screw (2) |
| 3 | Seal, Fiberglass |
| 4 | Panel, Inner |
| 5 | Window Package |
| 6 | Retainer, Insulation |
| 7 | Glass (6.81`` x 18.31``) |
| 8 | Retainer, Glass (2) |
| 9 | frame, door 30`` |
| 10 | Glass, Outer |
| 11 | Top, Door Frame |
| 11 | Screw, 10A x 1/2 (2) (Black) |
| 12 | clip, glass (10) |
| 13 | screw (3) |
| 14 | WP90296 Whirlpool Clip |
| 14 | Baffle, Heat |
| 16 | WP912618 Whirlpool Dishwasher Screw |
| 16 | WP355515 Whirlpool Screw |
| 16 | Handle, Oven Door |
