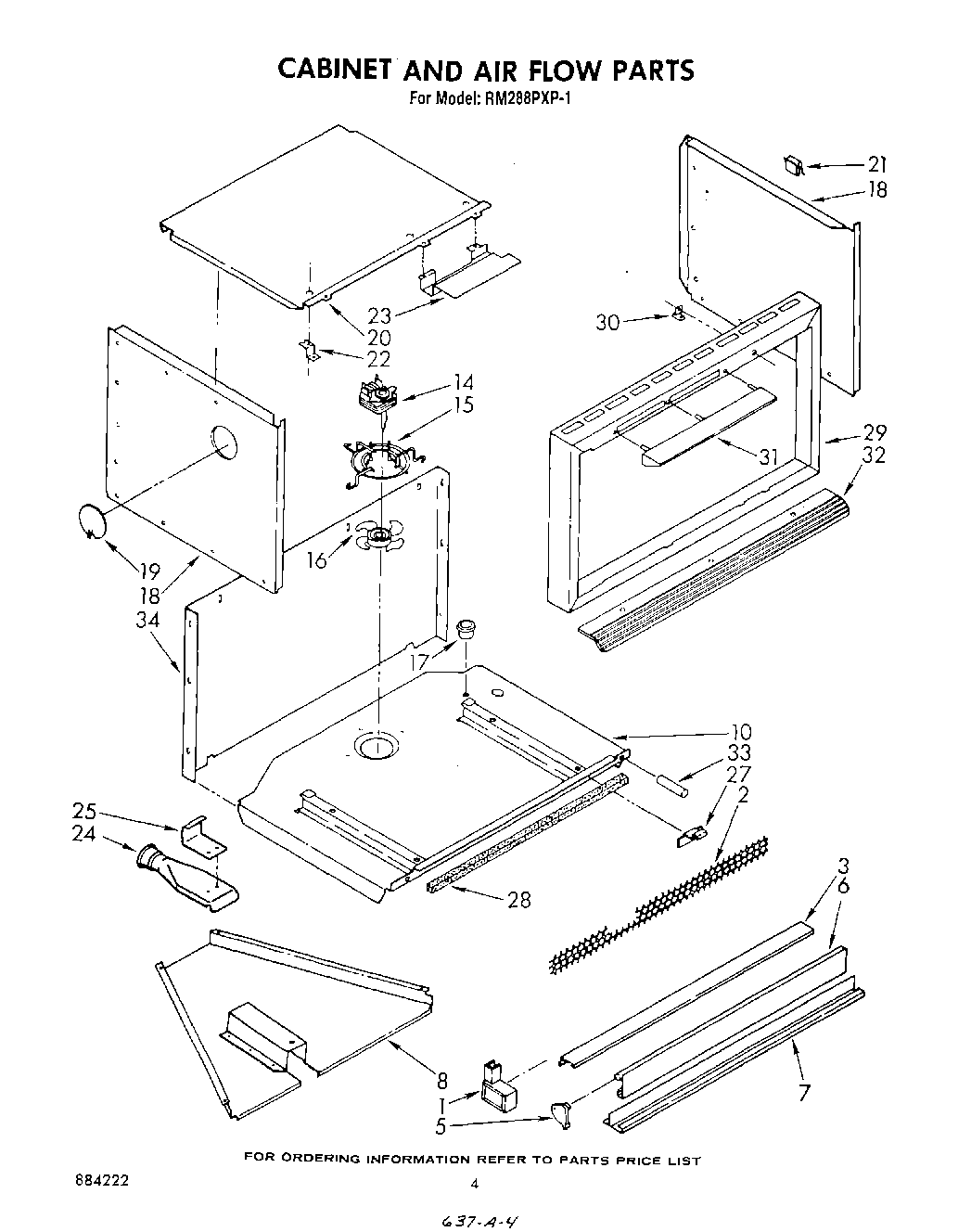

RM288PXP1 03 – CABINET AND AIR FLOW

Products

Position	Product
1	End Cap, L.H.
1	End Cap, R.H.
2	Trim, Oven Vent
3	Screw
3	Trim, Top
5	End Trim, Vent (Right Side)
5	End Trim, Vent (Left Side)
6	Door, Vent
7	Screw, 10-32 x 1/2
7	Panel, Side L.H. (Screw, 10A x 1/2 (2))
7	Trim, Bottom
8	WPL 329829
10	Support Plate
14	Motor Fan (Alternate)
14	Motor Fan
14	Motor, Fan (Alternate)
14	Nut, Hex 6-32 (2)
15	Mount, Fan Motor
16	Blade, Fan
17	Bushing, Wire
18	Side Panel, R.H.
18	Side Panel, L.H.
19	Cover, Light
20	Panel, Top
21	Clip (2)
21	Clip
22	Bracket, Support
23	Probe, Shield
24	Vent Tube
25	Screw,
25	Support, Vent Tube
27	Bracket, Front Support
28	Seal Foam
29	Frame, Outer
30	Bracket, Control Panel Mounting
30	Screw, 10A x 1/2 (2) (Black)
31	WPL 309499
31	Pushnut, Ziptwist (3)
32	WP488627 Whirlpool Refrigerator Screw
32	Hood, Lower Vent
33	Screw, 10A x 1-5/8 (2)
33	Silicone Rubber Gasket (For Key 26)
34	Cover, Rear
34	WP488729 Whirlpool Refrigerator Door Screw
