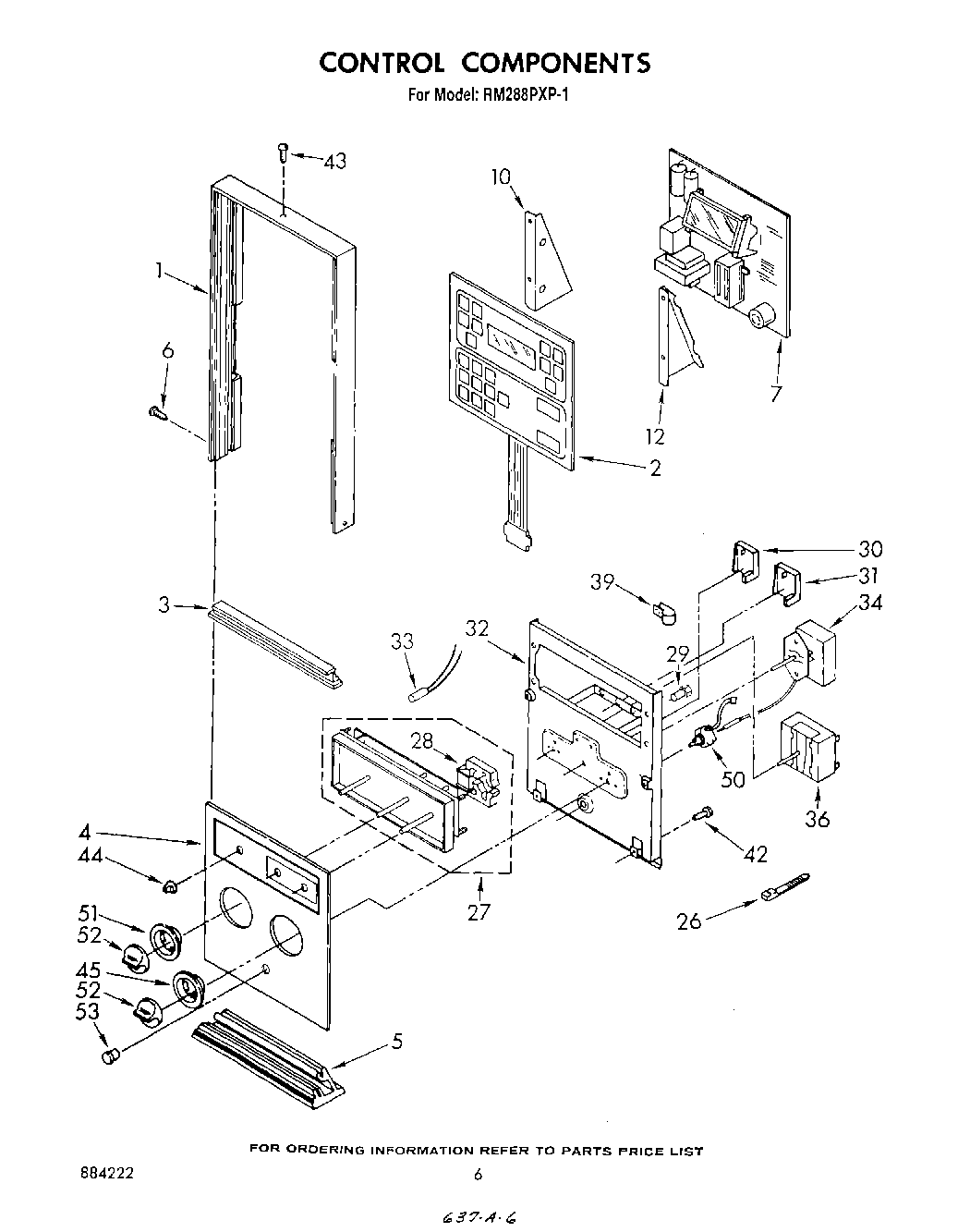

RM288PXP1 04 – CONTROL COMPONENTS

Products

Position	Product
1	Frame, Control Panel
2	Membrane, Switch
3	Splice Panel
4	Control Panel, Glass
4	Support-Top Burner
5	Bottom Cap, Control Panel
6	NAMEPLATE
7	Board, Power Control
10	Bracket, P.C. Board
12	Bracket, P.C. Board
26	WPW10339879 Whirlpool Wire Tie
27	Timer
28	Motor, Timer
29	Nut, Aluminum (4)
30	Switch, Broil
31	WPL 311585
32	Bracket, Control Mounting
32	SCREW
33	Indicator Light 250V (3)
34	Thermostat, Oven (Lower)
36	Selector Switch
36	Screw, 8-32 x 3/16 (2)
39	WP308605 Whirlpool Refrigerator Clamp
39	WP965173 Whirlpool Dishwasher Screw
39	screw
42	WP313808 Whirlpool Screw
43	Screw
44	Spring (3)
44	WP3169181 Whirlpool Knob
45	Escutcheon, Thermostat
50	Support-Storage Drawer (Lt. or Rt.)
51	Screw,
51	WP311068 Whirlpool Dial Knob Black
52	WP3150371 Whirlpool Control Knob
53	Bezel Switch (1)
